65 20 250 Removing and Installing/Replacing Rear Telephone Aerial




65 20 250 - Removing and installing/replacing rear telephone aerial





Necessary preliminary tasks:
- Remove rear bumper trim

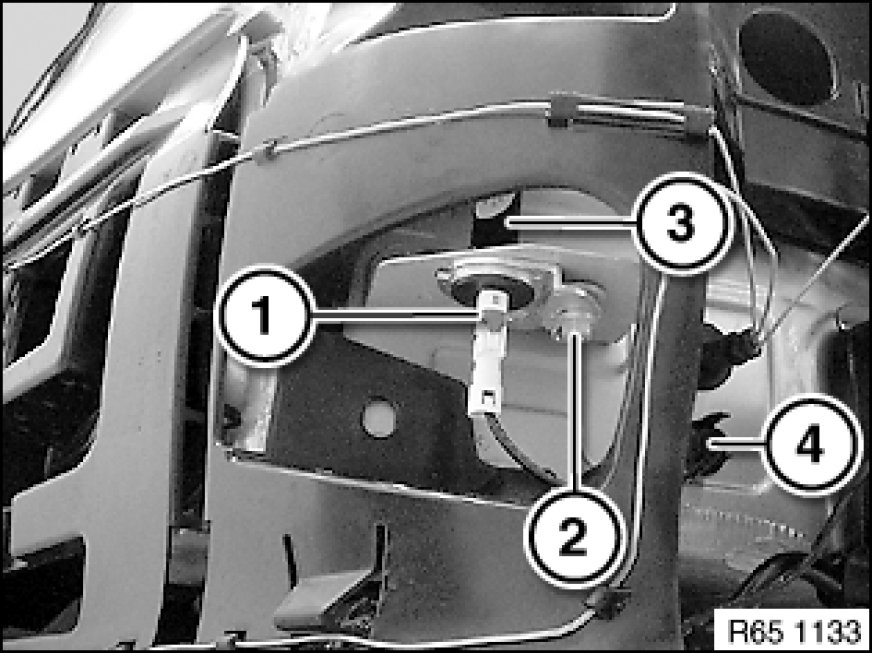

Disconnect plug connection (1).
Release screw (2), turn telephone aerial (3) and feed out.

Installation:
Make sure grommet (4) is correctly seated so as to avoid water ingress.
