Selector Shaft: Service and Repair

24 50 030 - Replacing selector shaft (GA6L45R)





Important!
After completion of work, check transmission oil level 00 11 237 Checking/Topping Up Fluid Level In Automatic Transmission (GA6L45R).
Use only the approved automatic transmission fluid in this automatic transmission.

Failure to comply with this requirement will result in serious damage to the automatic transmission!





Necessary preliminary tasks:
- Remove mechatronics 24 34 563 Replacing Mechatronics (GA6L45R)

- Remove selector shaft seal 24 14 003 Replacing Selector Shaft Seal (GA6L45R)

- Remove transmission (AWD only)

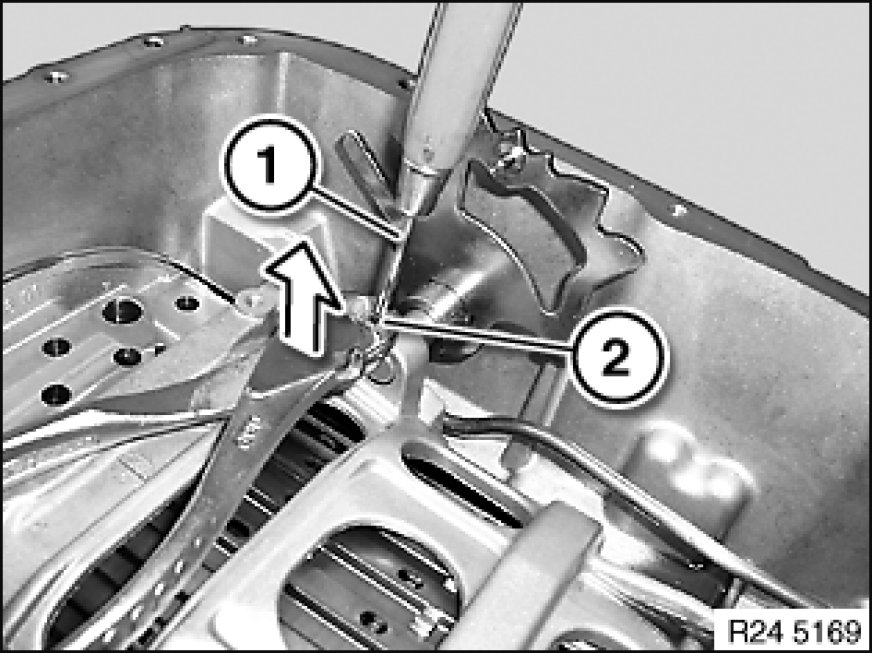

Drive a metal pin (1) - dia. approx. 3 mm - into clamping pin (2) (to prevent clamping pin from being compressed).
Grip clamping pin (2) with side nippers.

Note:
Illustration similar





Drive clamping pin (2) with a suitable tool out of selector shaft.
Remove selector shaft.
