Foot Pedal
>>

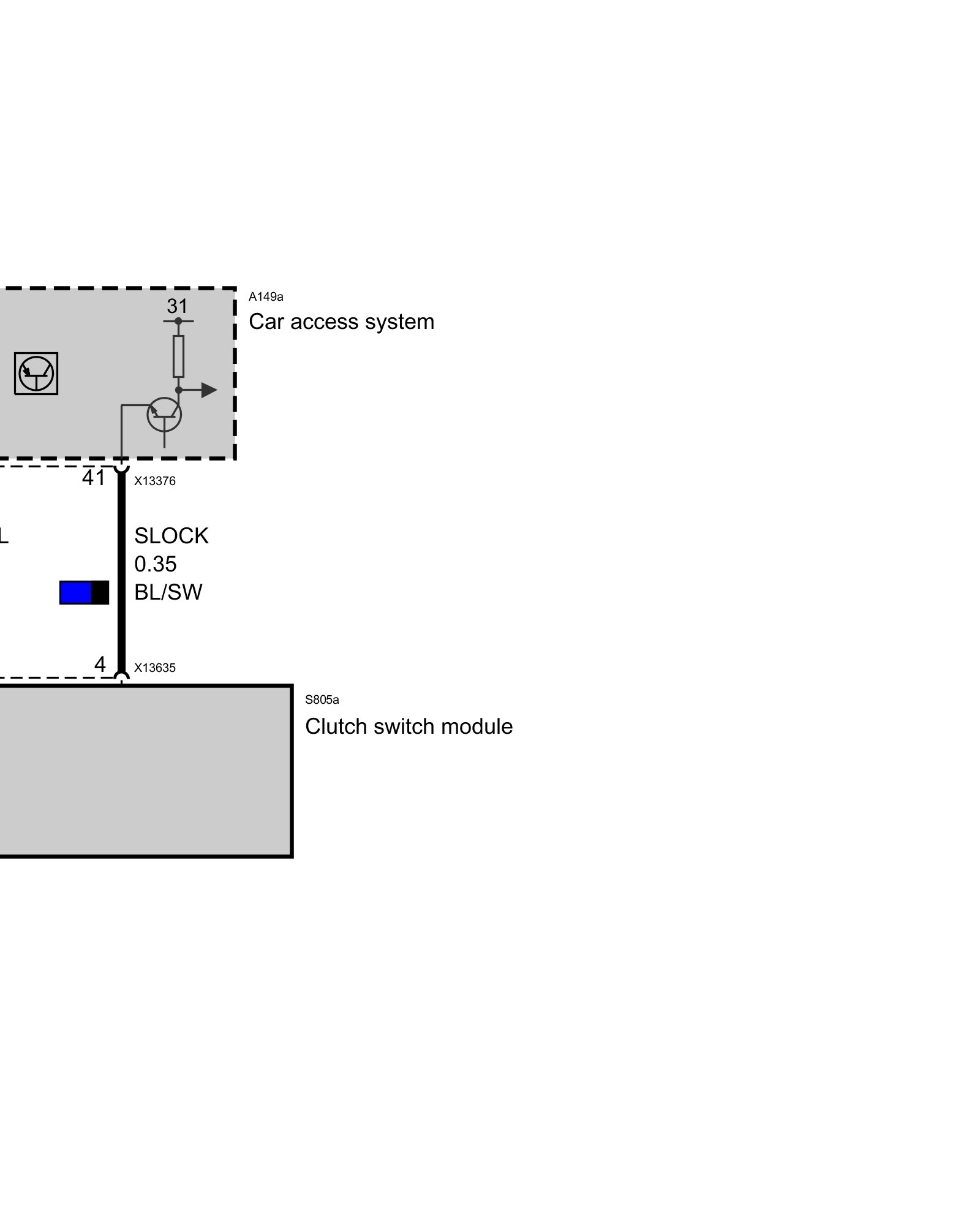

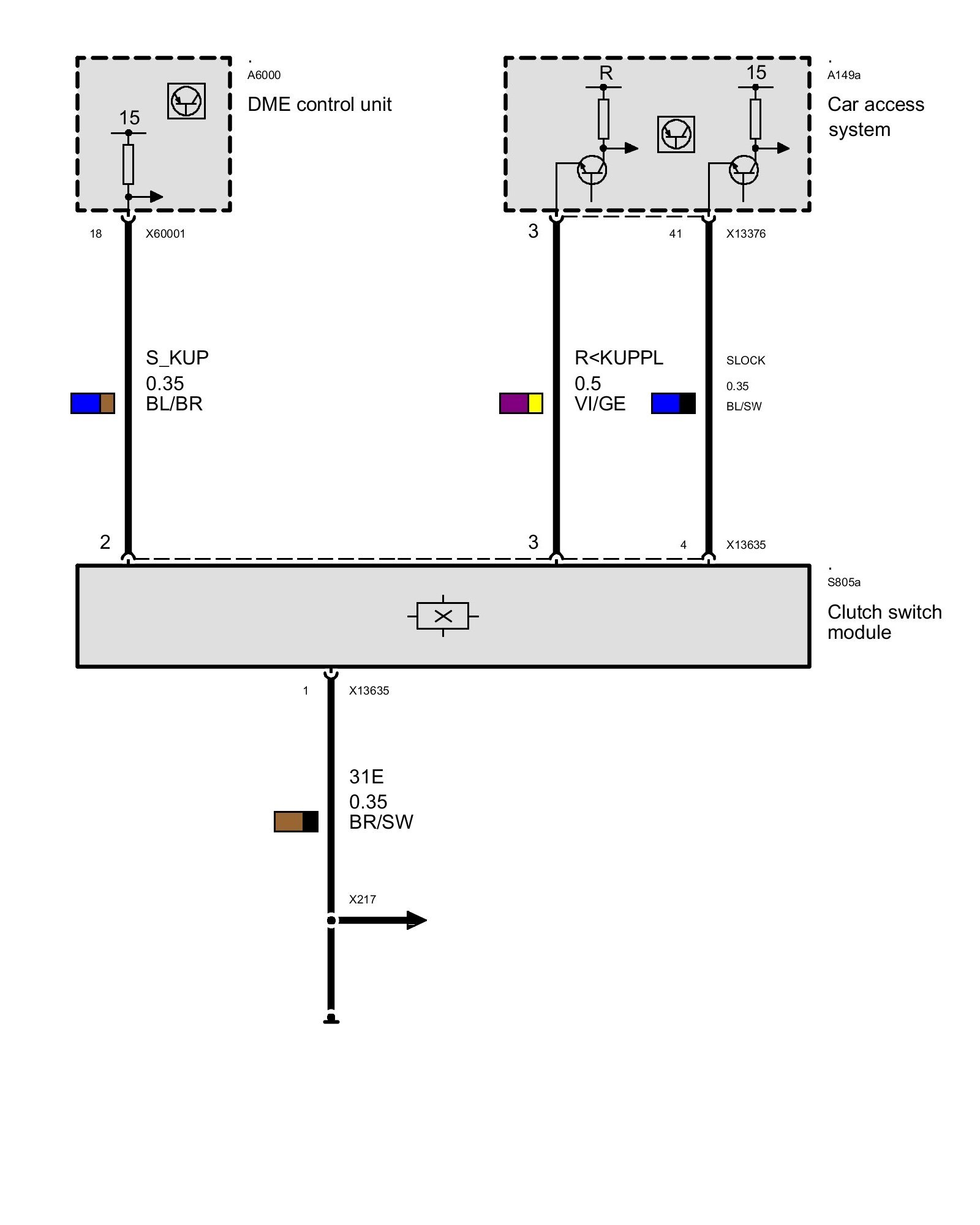

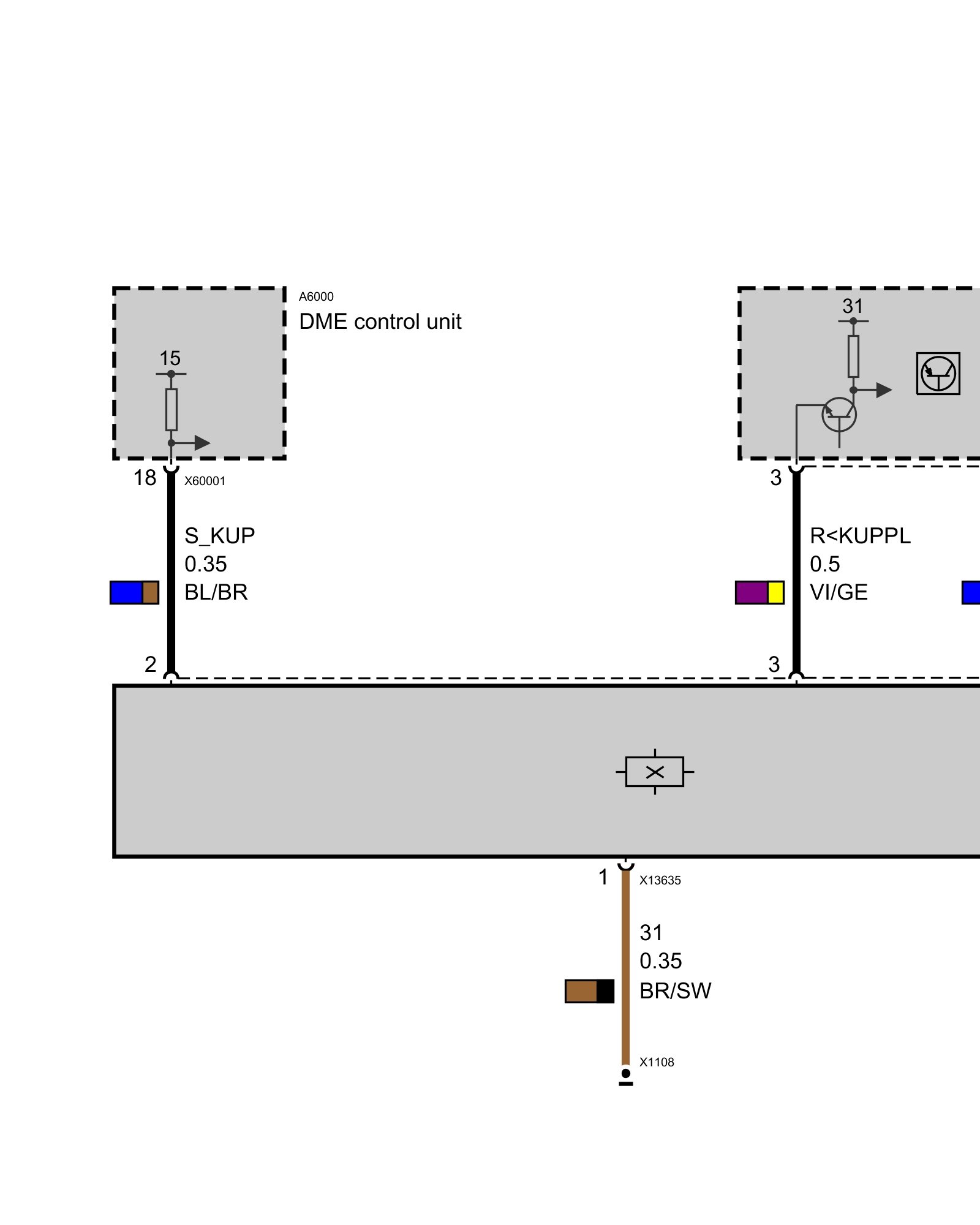

Clutch Switch Module
Clutch Switch Module
Clutch Switch Module
Up to 03/09
As of 03/09
