11 00 ... Mounting Engine on Assembly Stand

Mounting engine on assembly stand (N52K)





Special tools required:
- 00 1 450
- 11 3 370
- 11 4 440
- 11 9 261
- 11 9 265





Important!
Aluminium screws/bolts must be replaced each time they are released.

The end faces of aluminium screws/bolts are painted blue for the purposes of reliable identification.

Jointing torque and angle of rotation must be observed without fail (risk of damage).





Necessary preliminary tasks:
- Remove engine Removing and Installing Engine

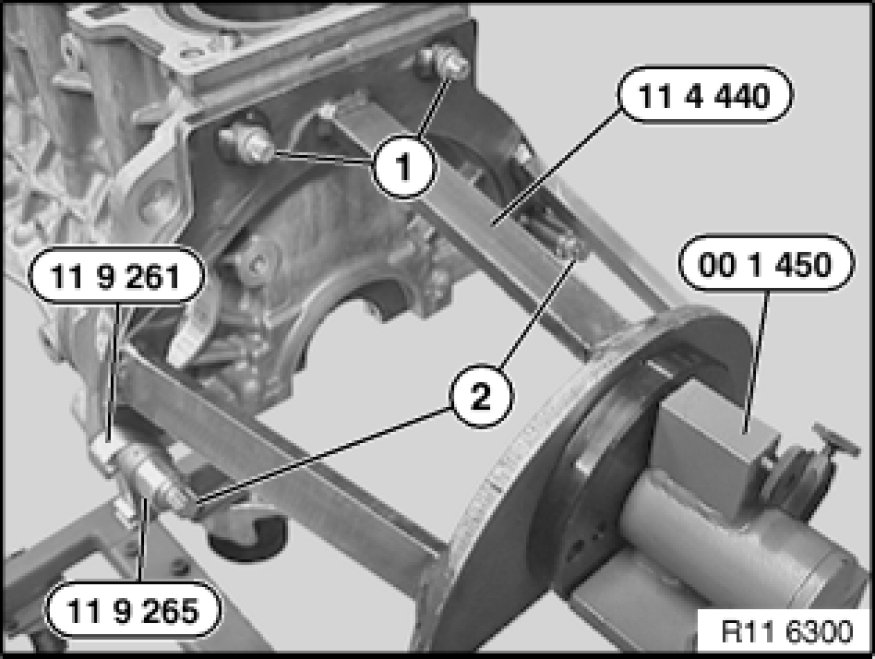

Bolt engine or engine block with steel bolts (1) and aluminium bolts (2) to special tool 11 4 440.

To release central bolt, bolt on special tools 11 9 261 and 11 9 265 as well.

Mount engine with special tool 11 3 370 to special tool 00 1 450.
