128i Convertible (E88) L6-3.0L (N52K)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Foot Pedal
>>

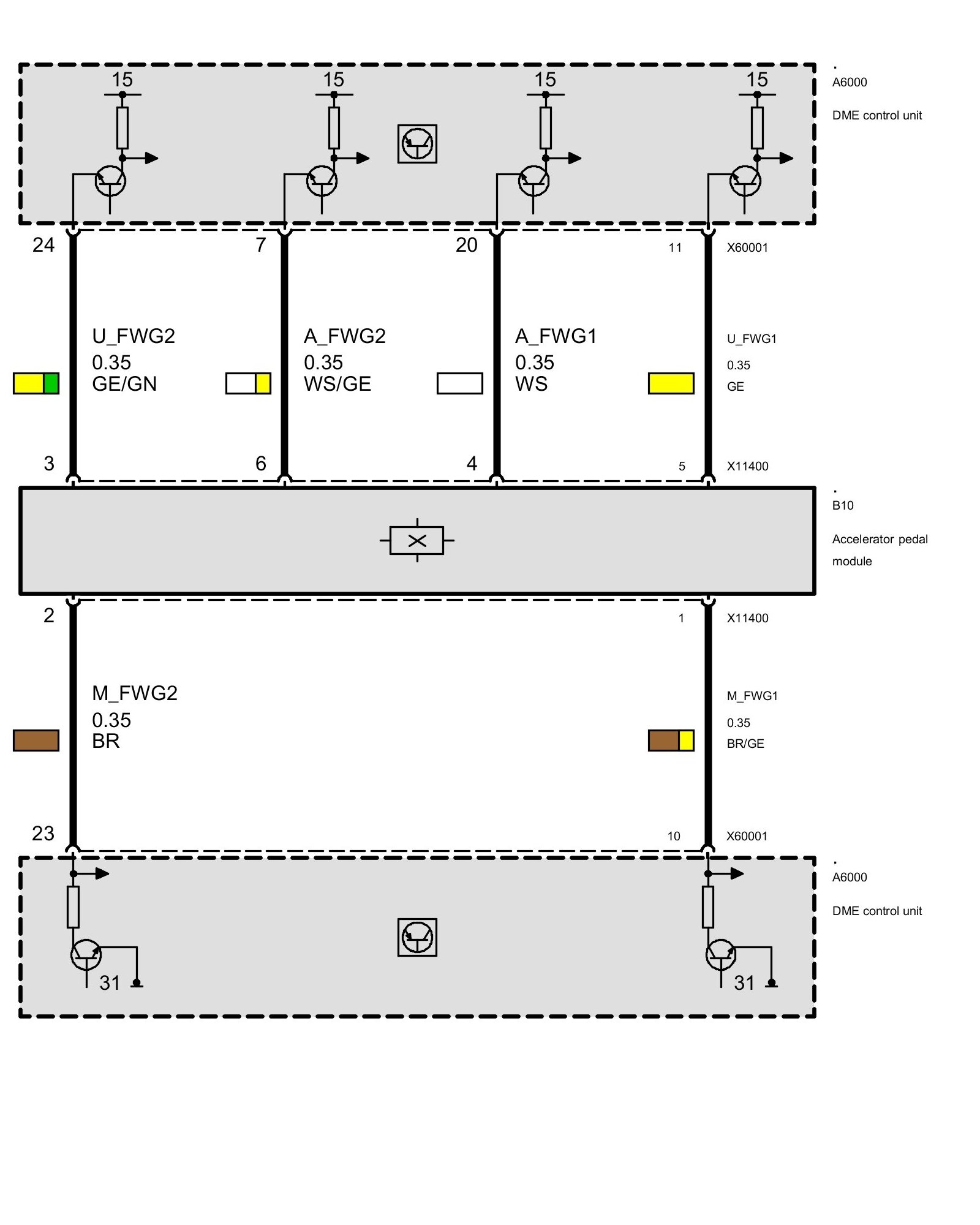

Accelerator-Pedal Module
Accelerator-Pedal Module
Accelerator-Pedal Module
