Home >> BMW >> 2008 >> 128i Convertible (E88) L6-3.0L (N52K) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors From X6... >> X60253 Adapter 127300, Storage Location Q207

X60253 Adapter 127300, Storage Location Q207



X60253 Adapter 127300, Storage Location Q207

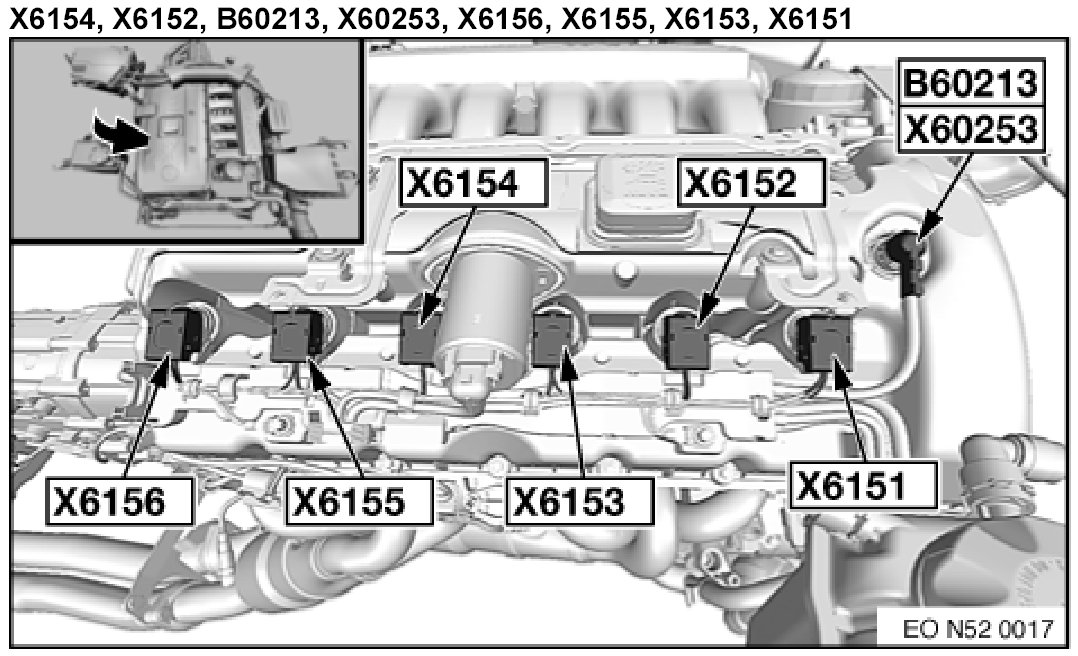

X6154, X6152, B60213, X60253, X6156, X6155, X6153, X6151 (N52 Engine or N51 Engine)
