Dynamic Stability Control (As of 09/04)

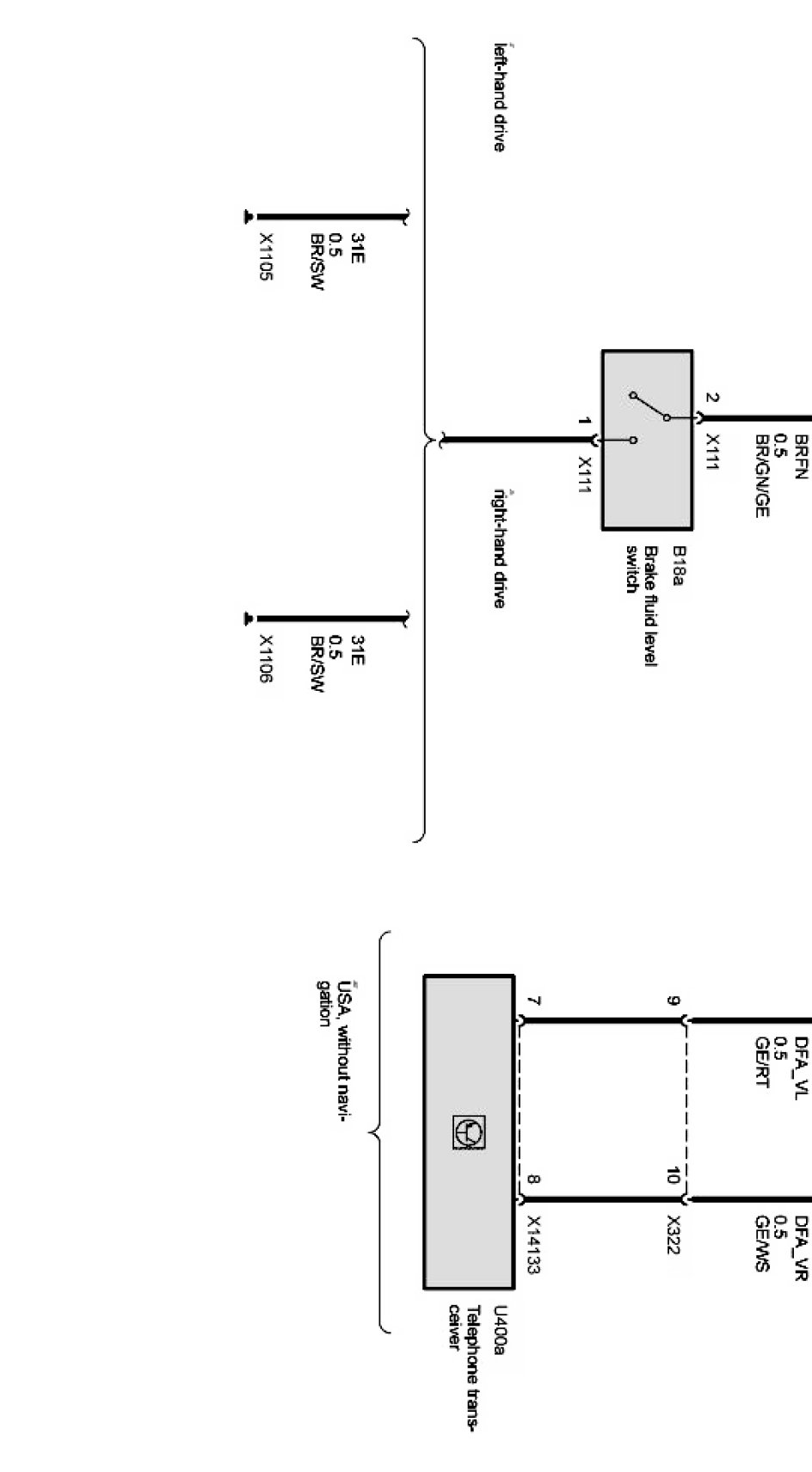

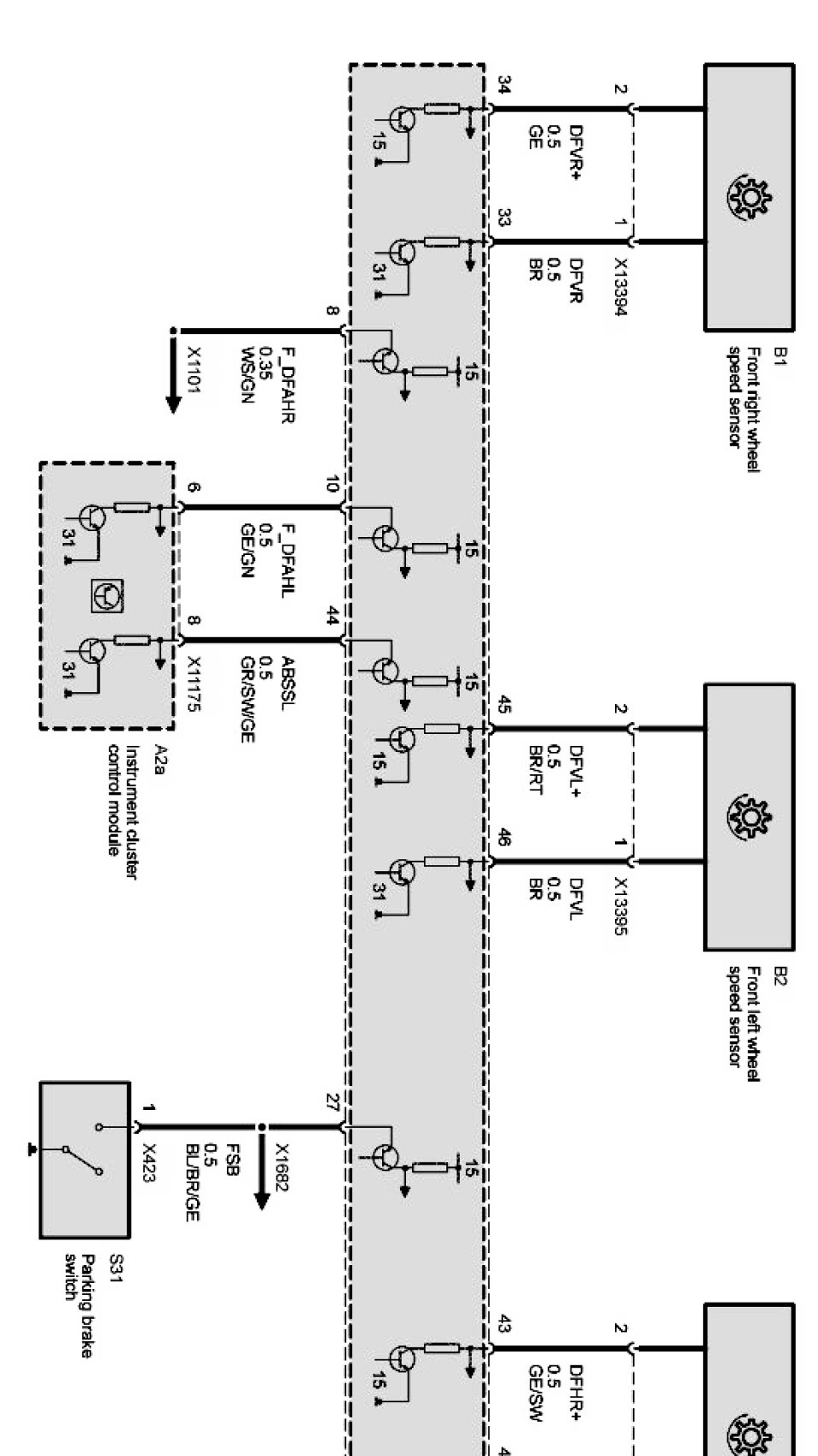

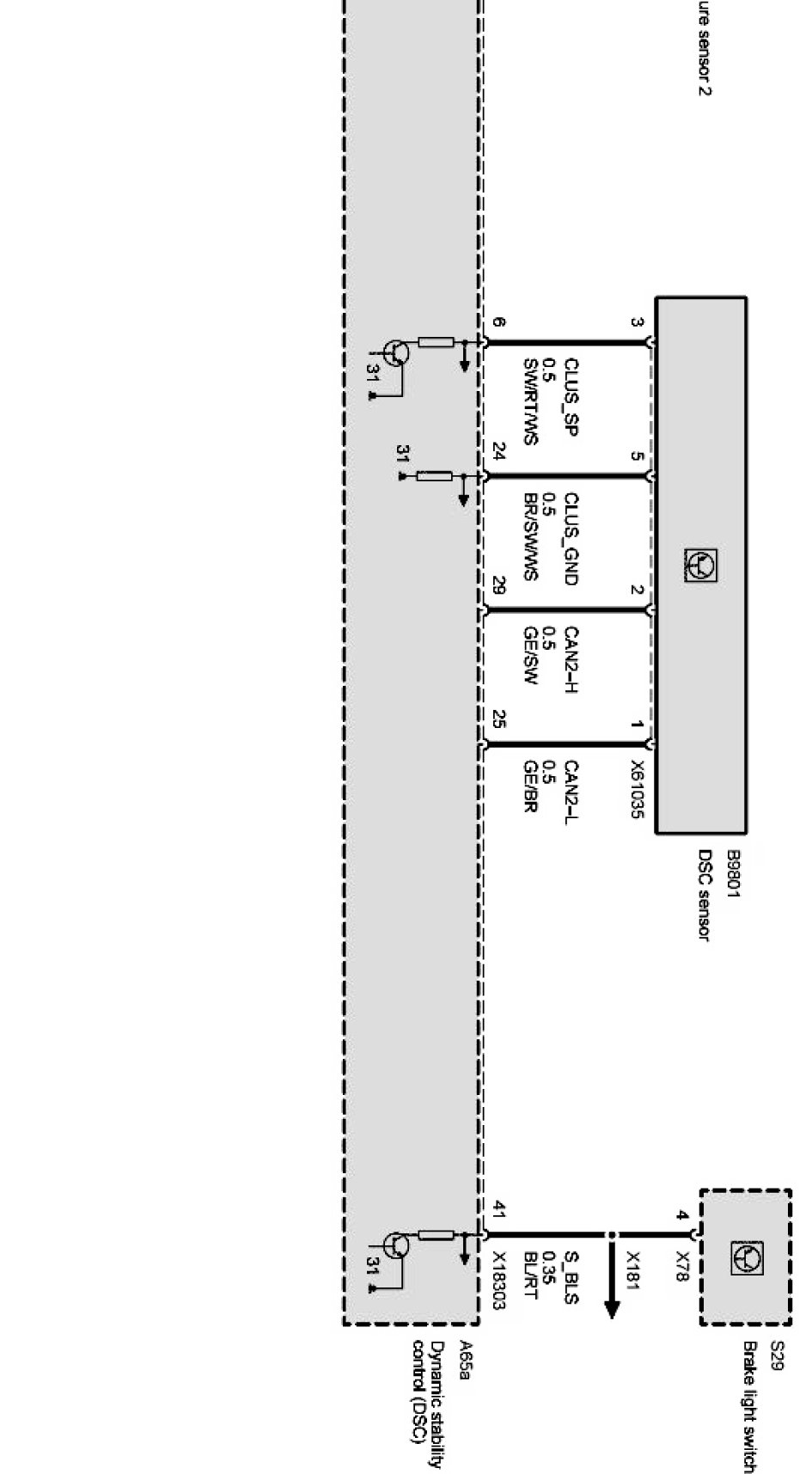

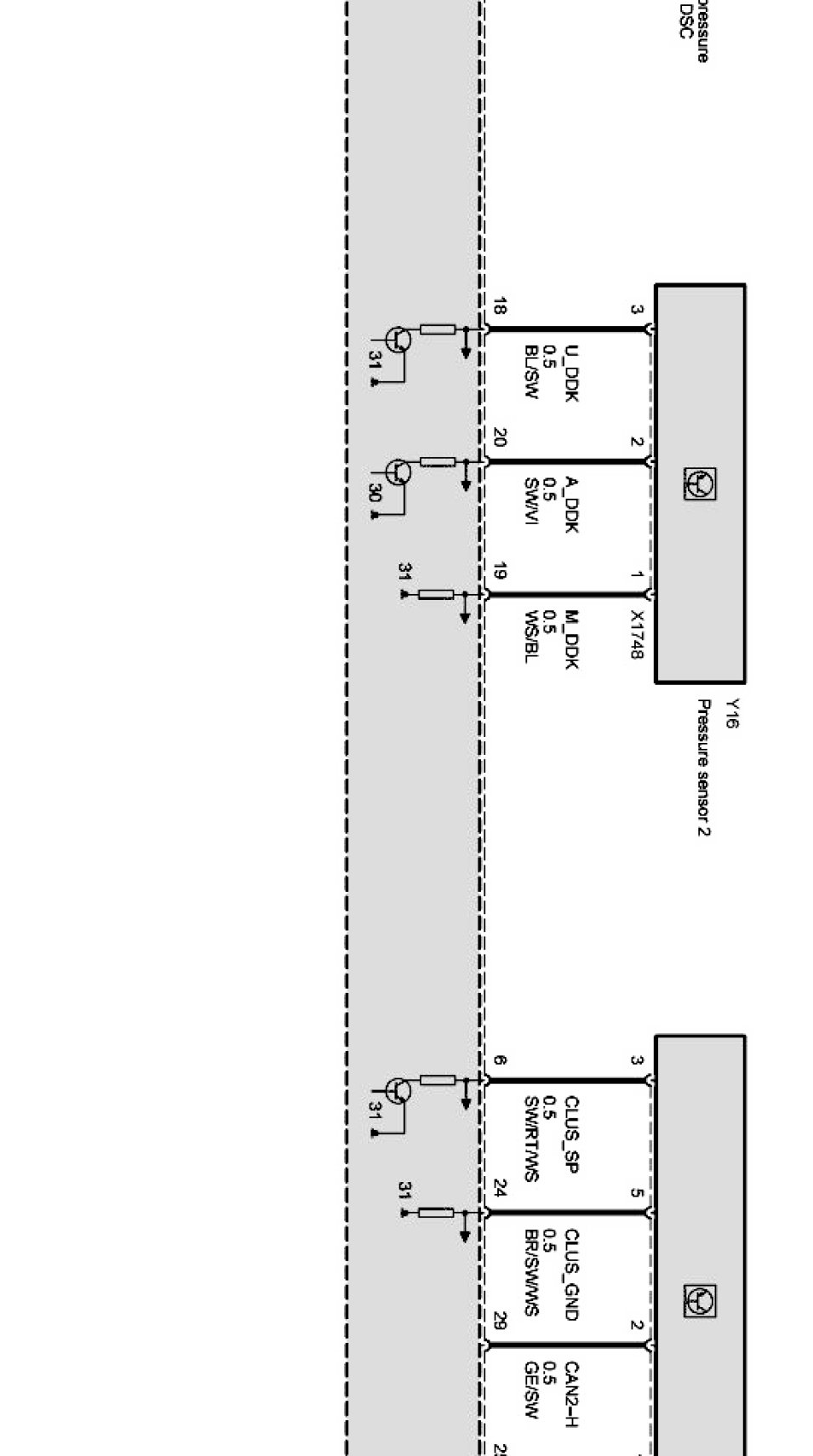

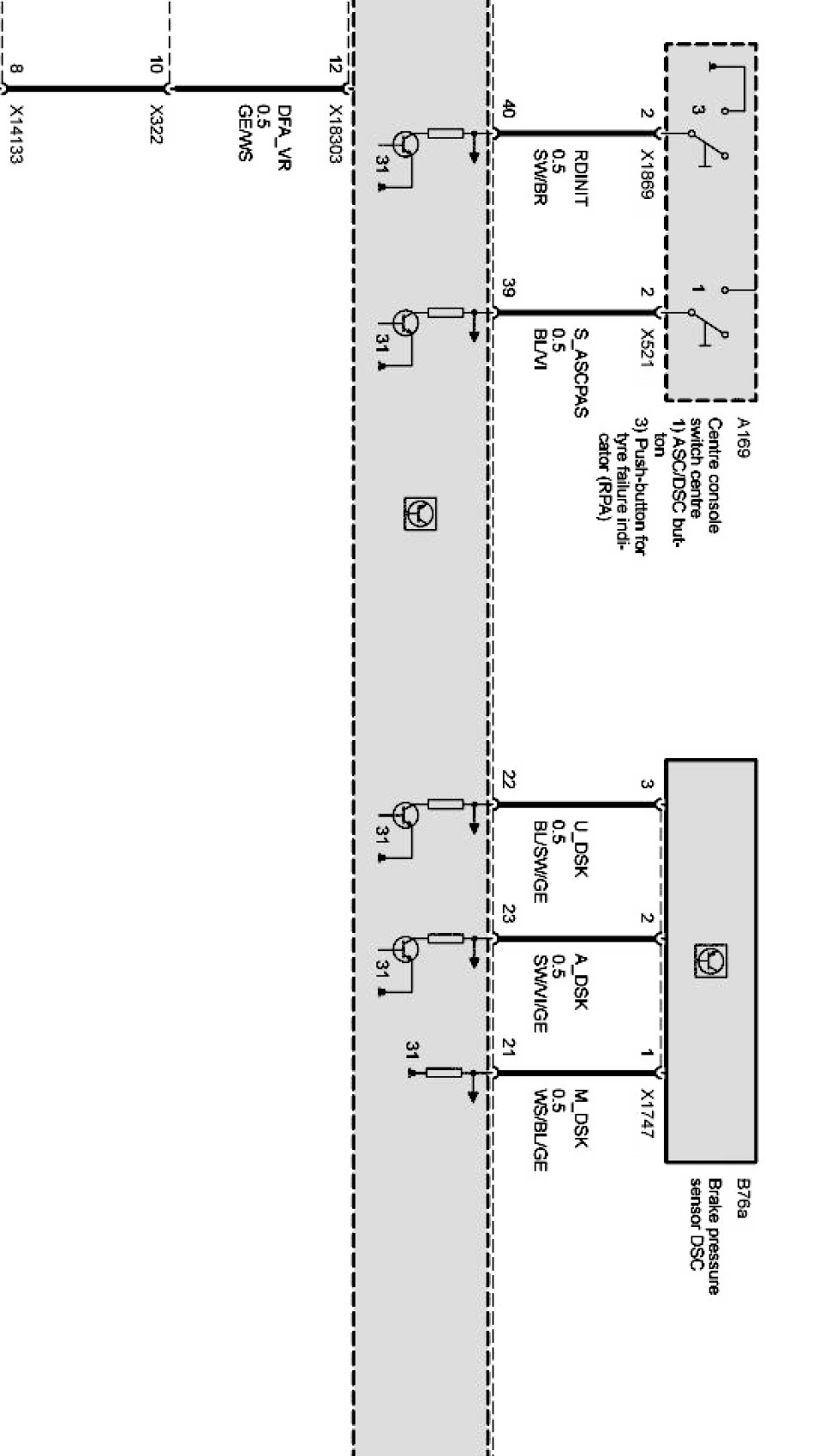

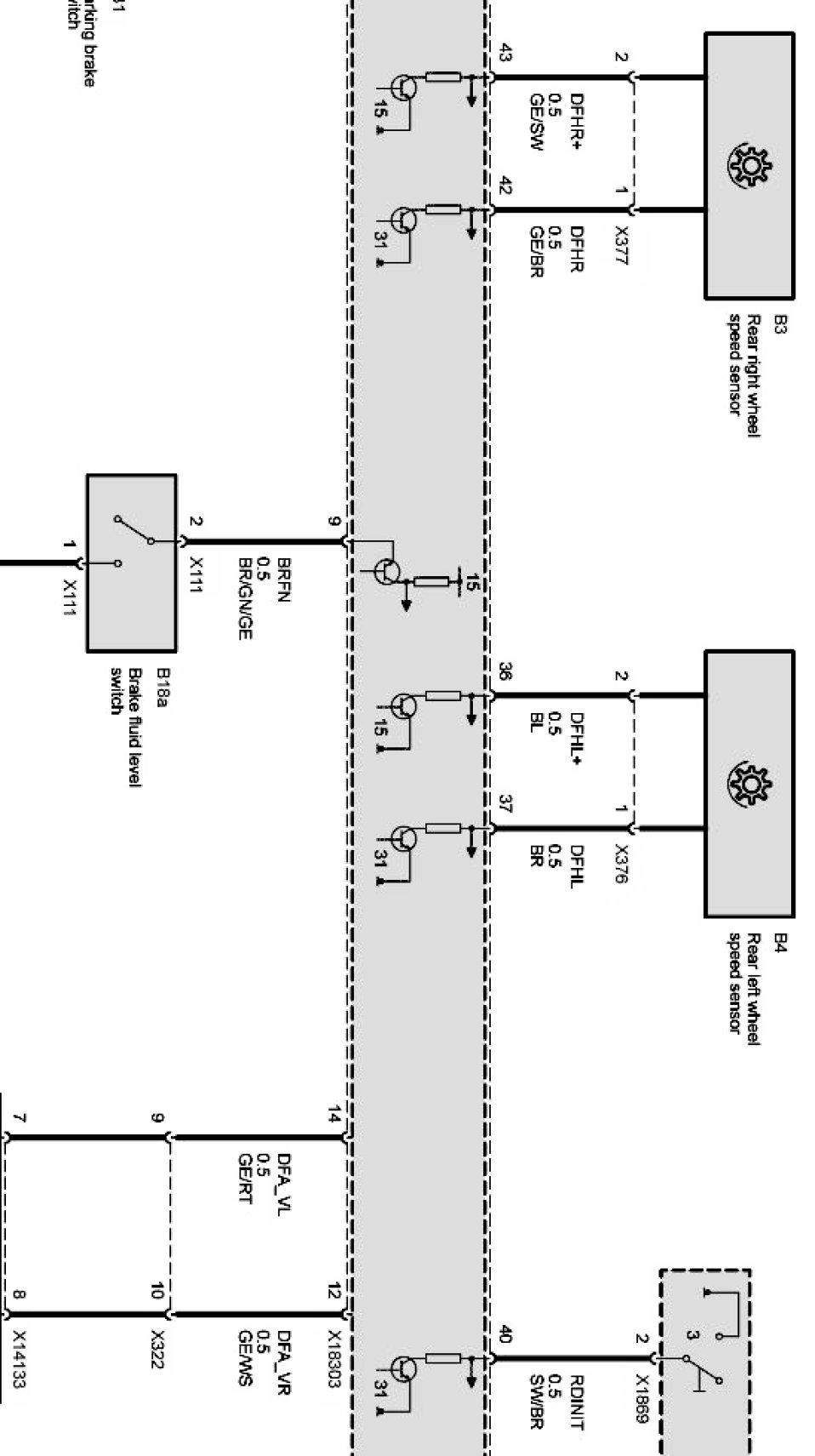

Dynamic stability control Part 1:



Dynamic stability control Part 2:



Dynamic stability control Part 3:



Dynamic stability control Part 4:



Dynamic stability control Part 5:



Dynamic stability control Part 6:
