Removing and Installing/Replacing Convertible Top Compartment Floor

54 31 170 Removing And Installing/Replacing Convertible Top Compartment Floor

Necessary preliminary tasks:
- Close convertible top.
- Open rear lid.

M Roadster only:
- Remove M Mobility system







Move convertible top compartment floor downwards.

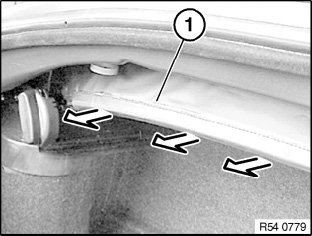

Feed cover (1) out of convertible top compartment floor towards rear.

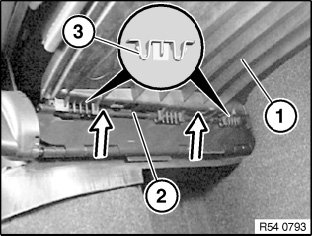

Unclip retainers (3).
Unclip convertible top compartment floor (1) upwards out of mounting (2).

Installation:
- Move mounting (2) downwards
- Position convertible top compartment floor (1)
- Move mounting (2) upwards
- Clip in convertible top compartment floor (1) (press from passenger compartment)
- Clip in retainers (3)







Remove convertible top compartment floor from centre mount (1).

Installation:
Insert convertible top compartment floor from above (above microswitch 2) into centre mount and lower.
Check function of microswitch (2).
