Removing and Installing/Replacing A Mounting For Convertible Top Compartment Floor

54 31 180 Removing And Installing/Replacing A Mounting For Convertible Top Compartment Floor

Necessary preliminary tasks:
- Open rear lid.
- Remove convertible top compartment base

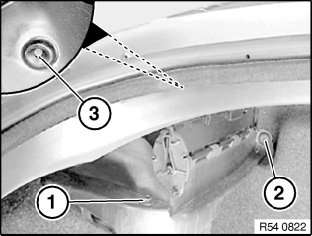

Release screws (1 and 2) and remove expansion rivet (3).







Feed out mounting towards rear top over spring strut cap.

Installation:
Feed in mounting under funnel.
