Replacing Bowden Cable For EH Convertible Top Emergency Release Mechanism

54 34 029 Replacing Bowden Cable For EH Convertible Top Emergency Release Mechanism

Necessary preliminary tasks:
- Remove convertible top
- Remove emergency release mechanism from hydraulic unit

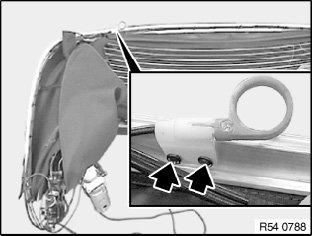

Release screws and/or drill out rivets.

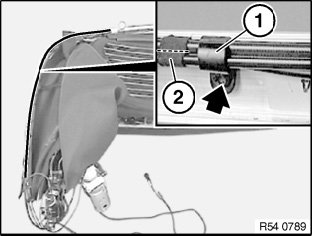

Disconnect Bowden cable in area A from hydraulic lines (cable ties) and feed out of holder if necessary.

Installation:
Carry out function check.
