Supply (Z Series_Z4-E85/E86 As of 09/04)

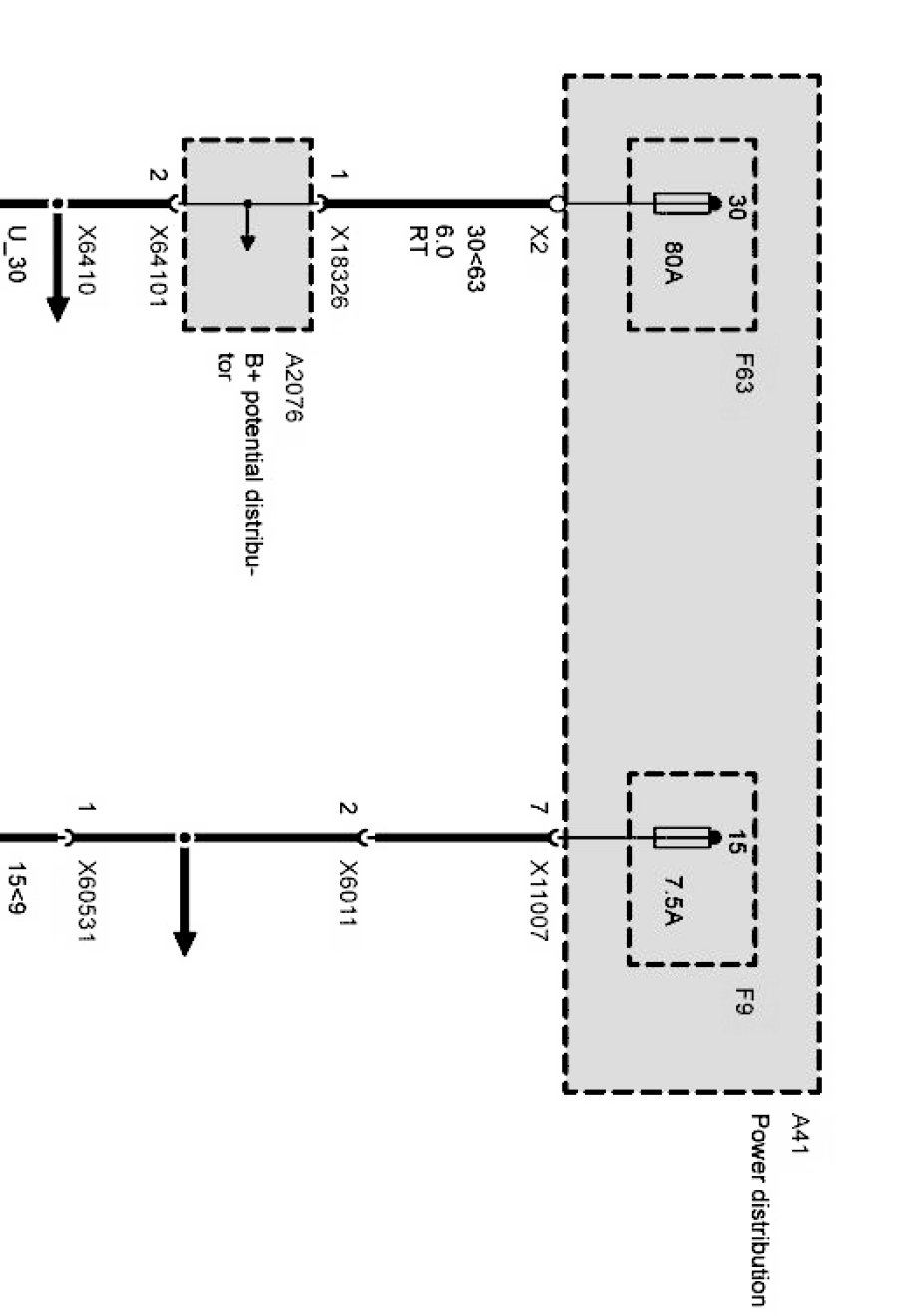

Supply Part 1:

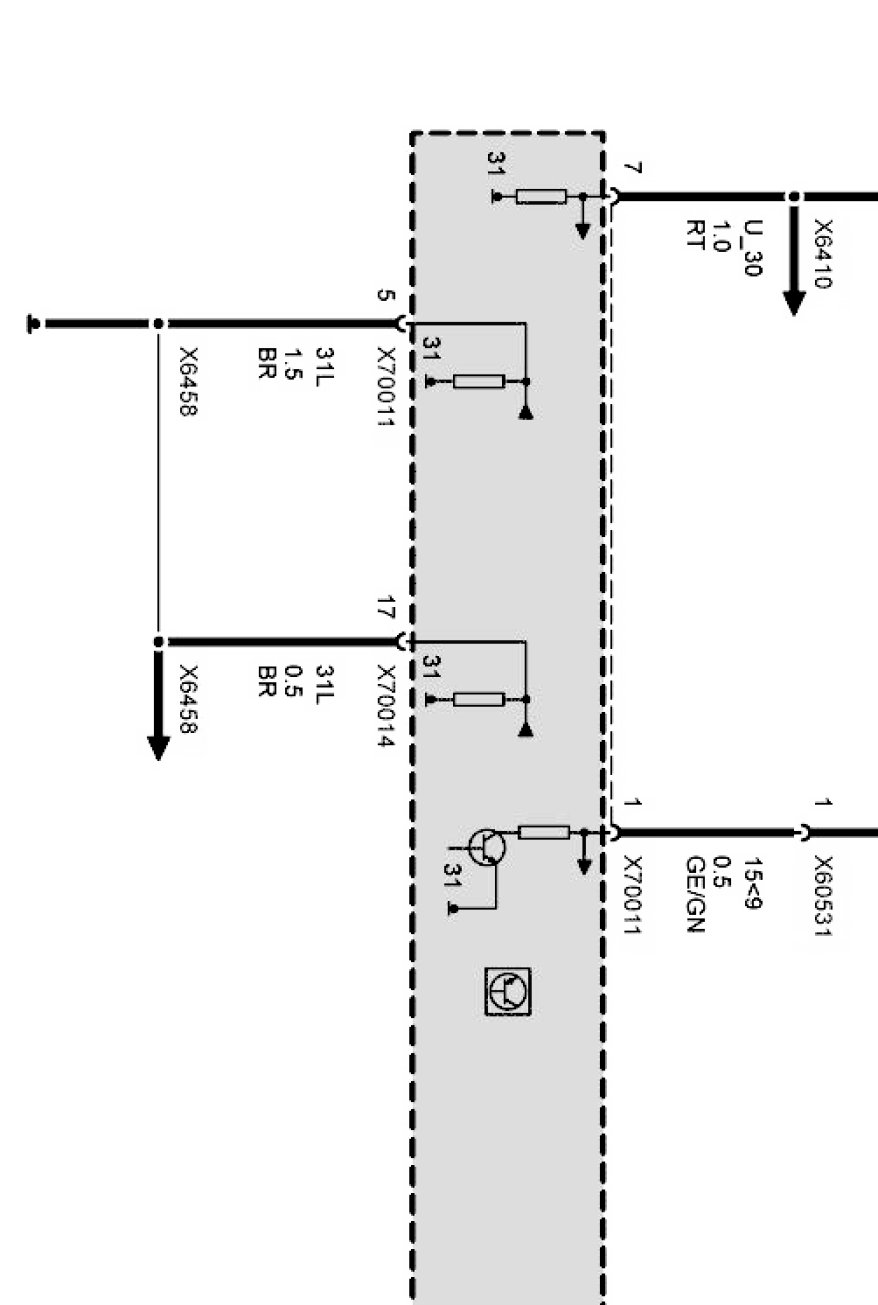

Supply Part 2:

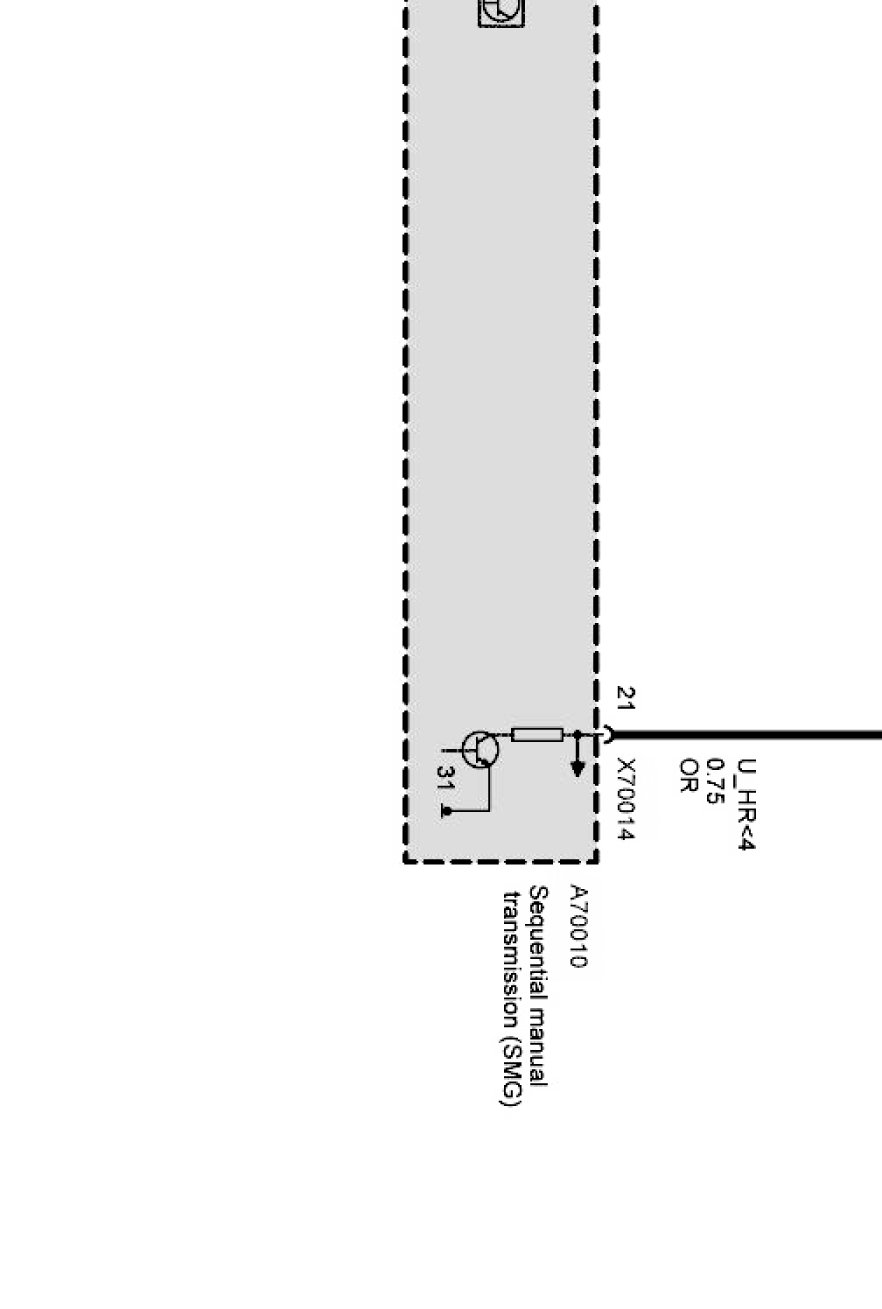

Supply Part 3:

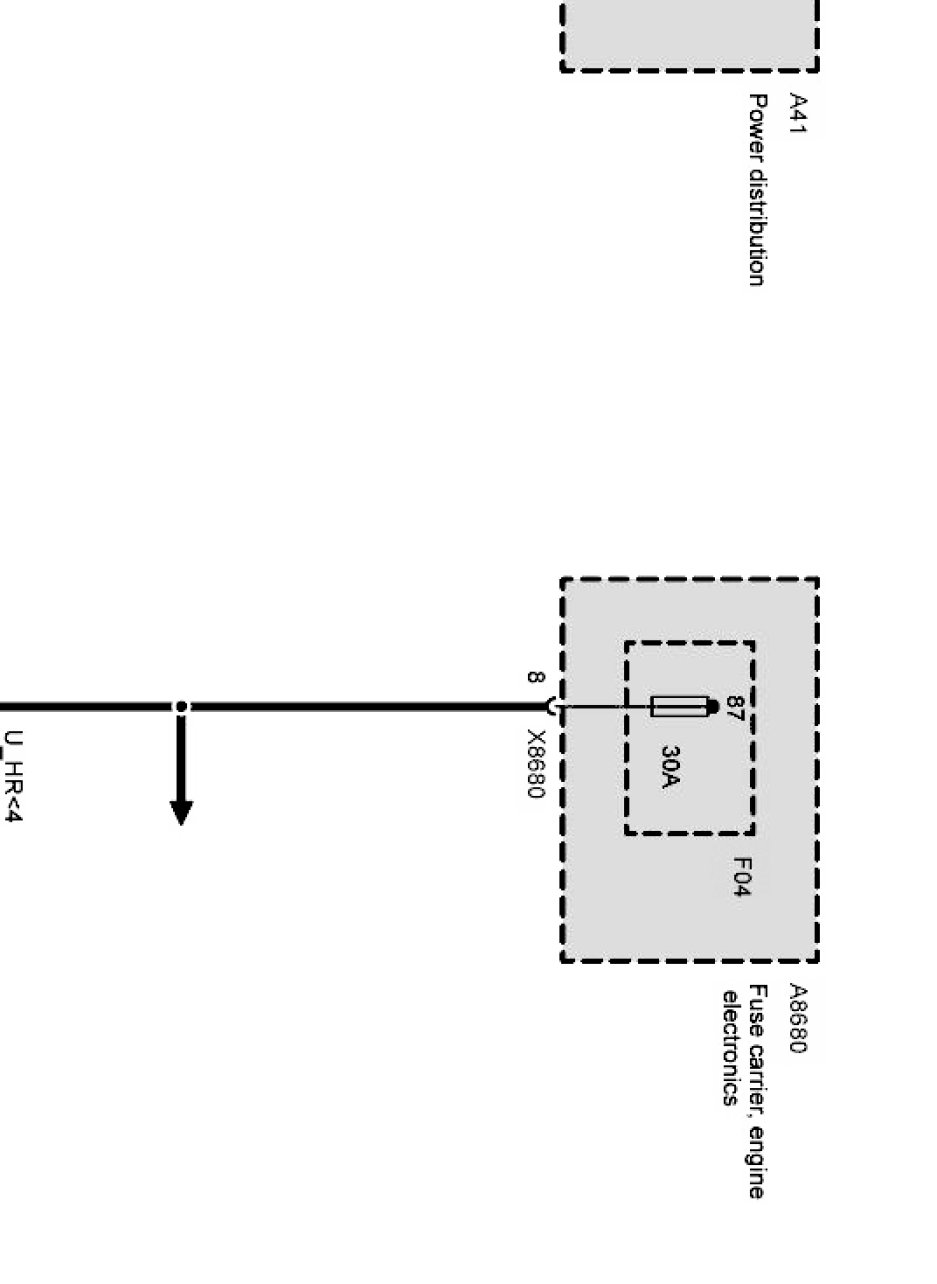

Supply Part 4:
