Home >> BMW >> 2007 >> Z4 3.0si Coupe (E86) L6-3.0L (N52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Wheel Slip Control System (DSC Dynamic Stability Control E85) >> Switch >> Switch Functions DSC

Switch Functions DSC

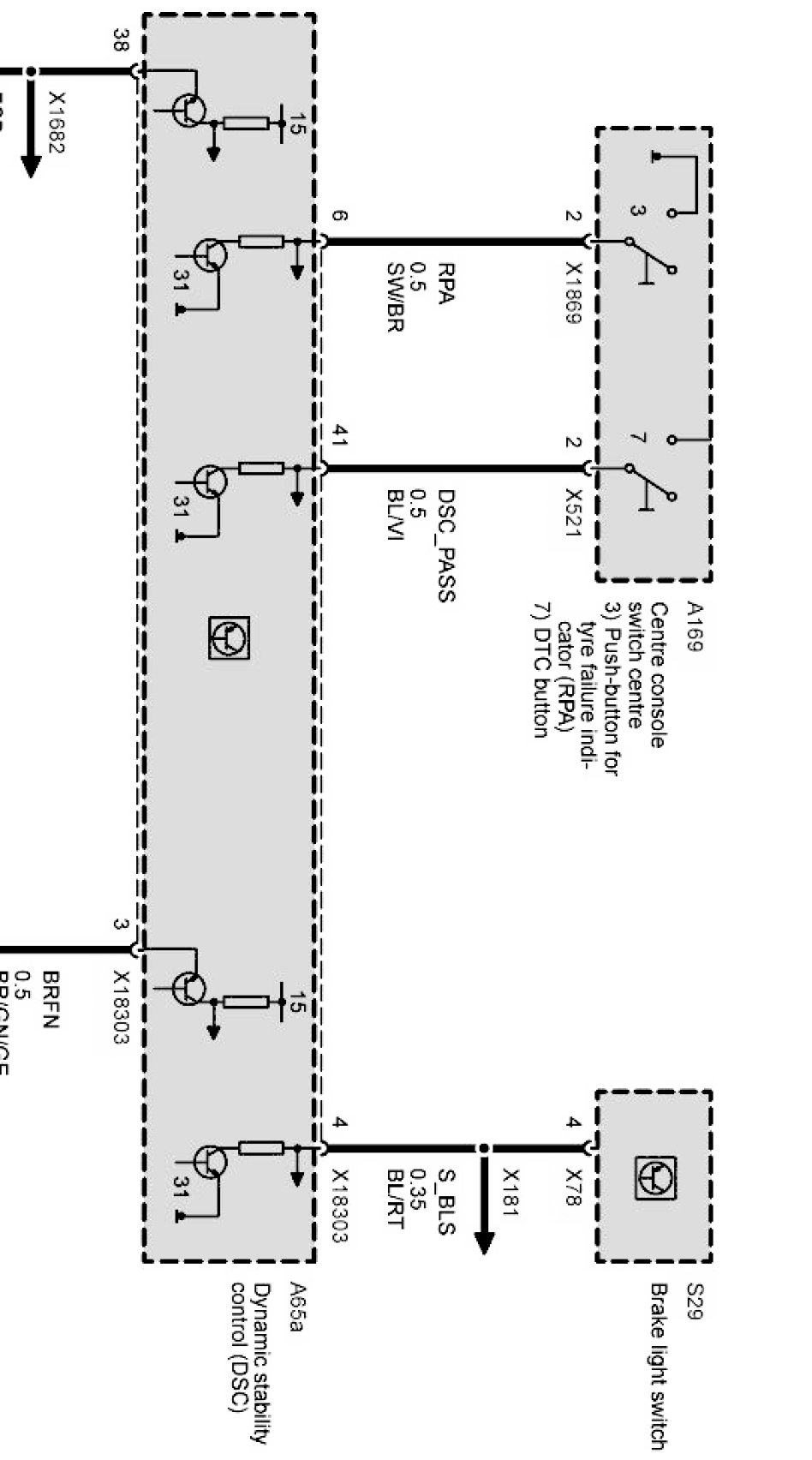

Switch functions DSC Part 1:

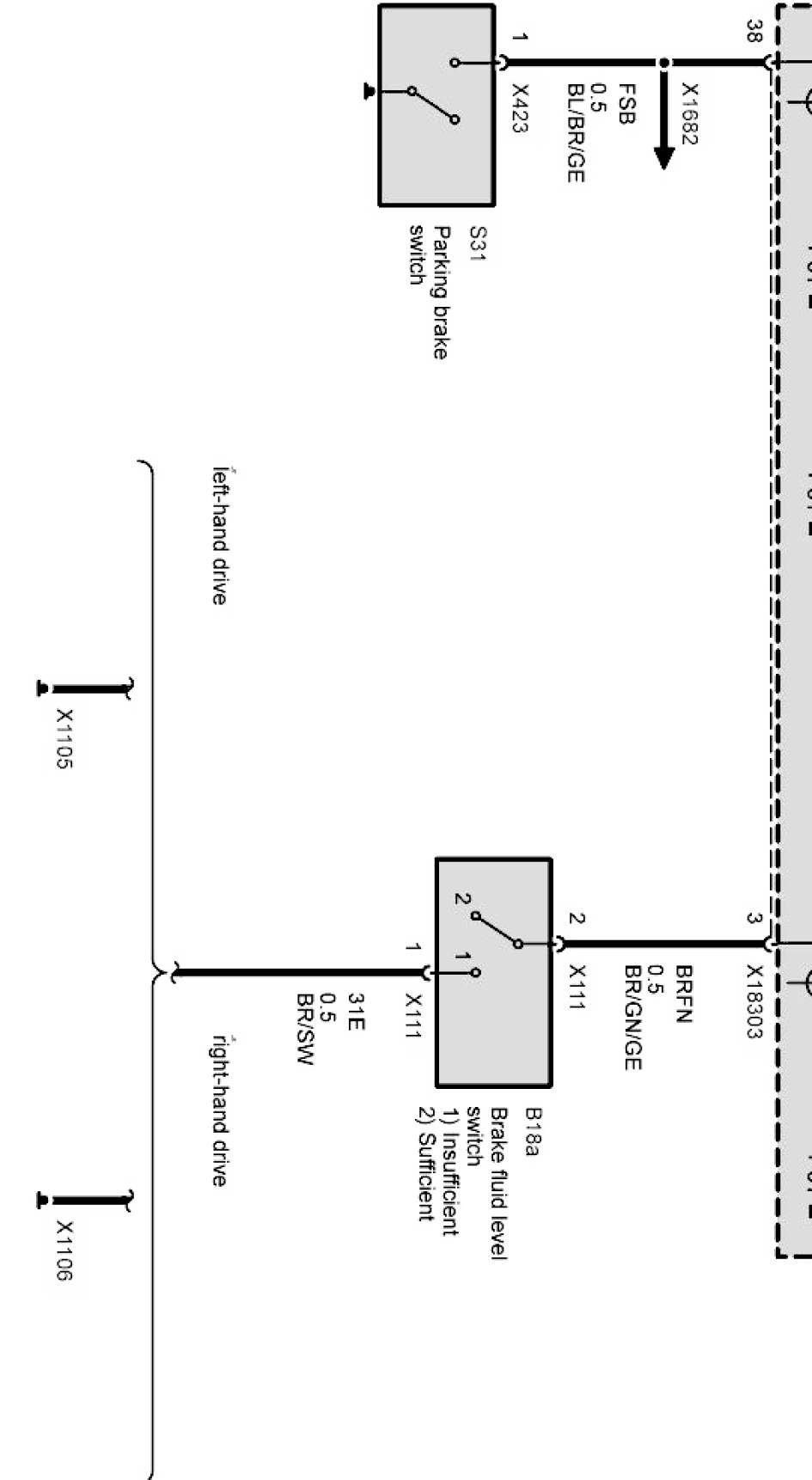

Switch functions DSC Part 2:
