Control Module, Electric Power Steering (EPS)

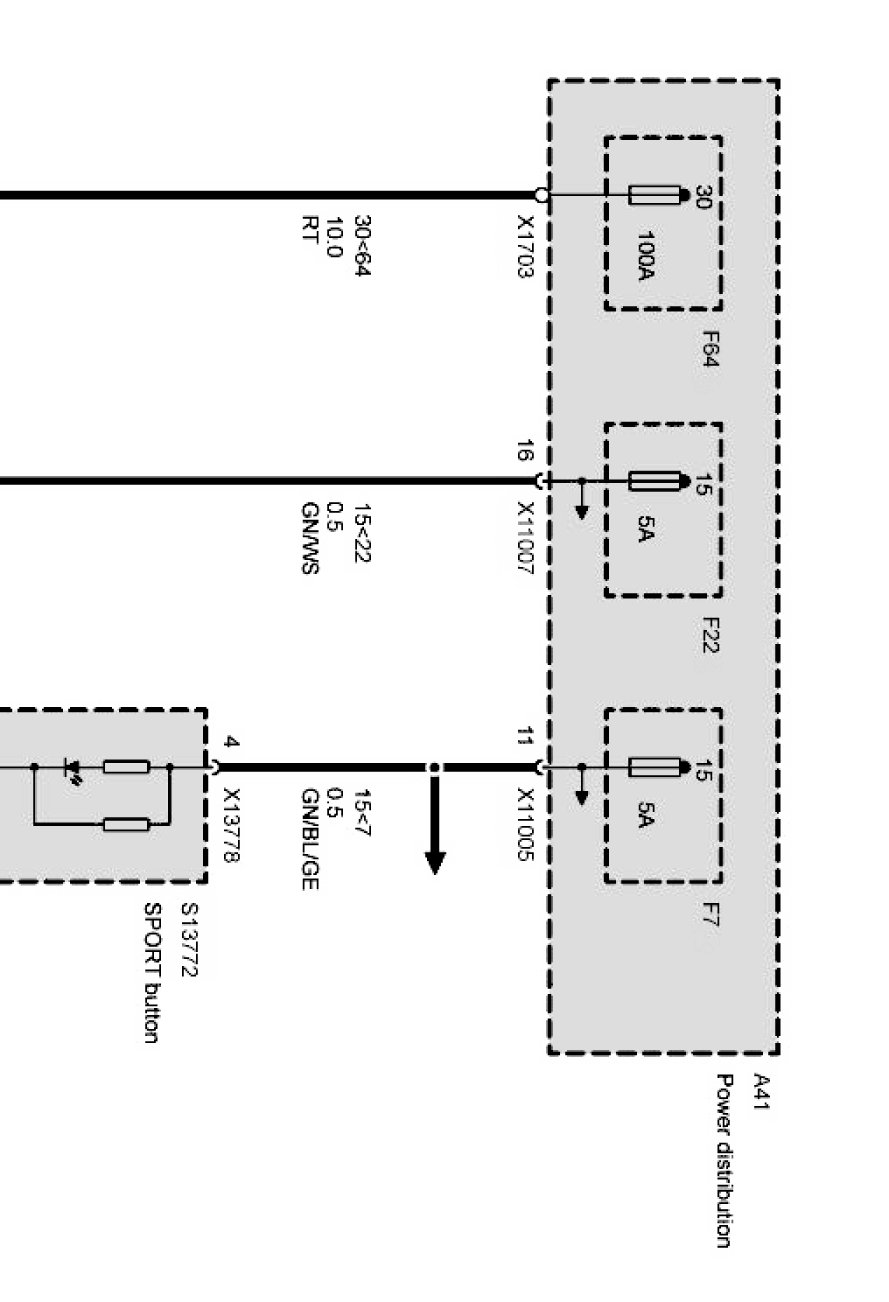

Control module, electric power steering (EPS) Part 1:

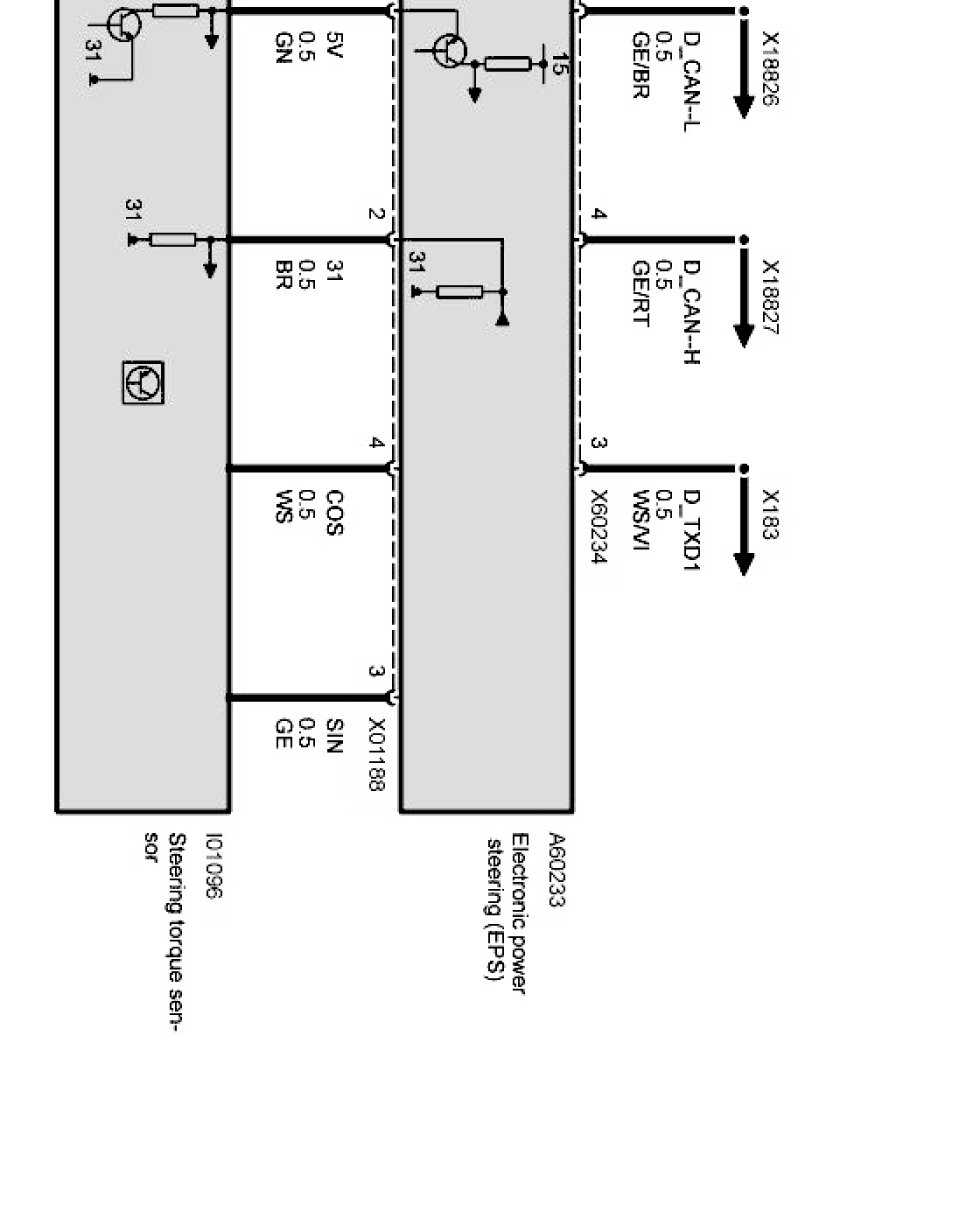

Control module, electric power steering (EPS) Part 2:

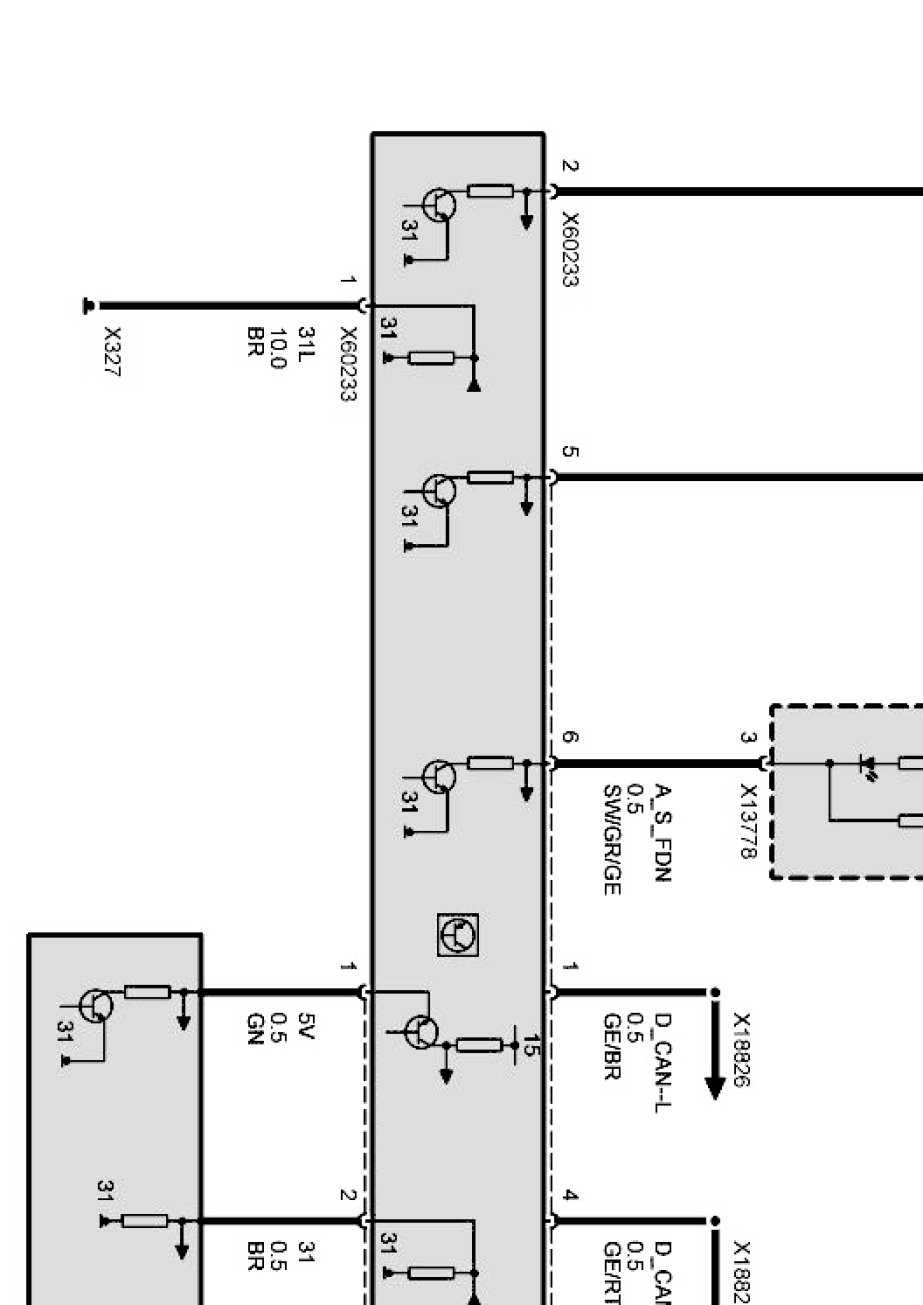

Control module, electric power steering (EPS) Part 3:
