51 45 ... Removing And Installing/Replacing Radio Cutout Trim



51 45 ... Removing And Installing/Replacing Radio Cutout Trim

Necessary preliminary tasks:
- Remove center fresh air grill

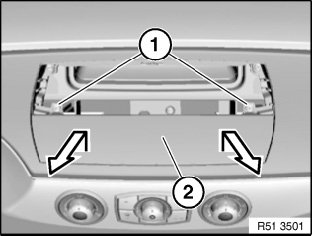

Release screws (1) and remove radio cutout trim (2) in direction of arrow.
