Removing and Installing/Replacing Recessed Handle/Lock Cylinder Trim on Rear Lid

51 49 ...Removing And Installing/Replacing Recessed Handle/lock Cylinder Trim On Rear Lid







Grip recess plate:

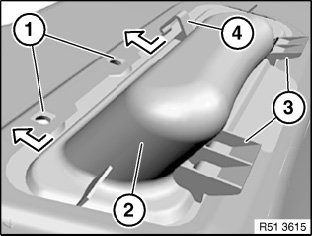

NOTE: Shown with view of fitted recessed handle from inside of rear lid.

Release screws in area (1).
Remove recessed handle (2) in direction of arrow.

Installation:
Following parts of recessed handle (2) must not be damaged or missing:
3 Retaining hooks
4 Catch







Lock cylinder trim:

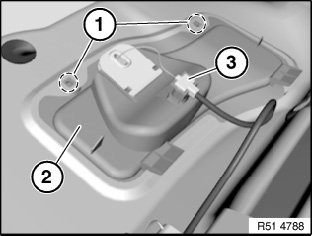

NOTE: Shown with view of fitted lock cylinder trim from inside of rear lid.

Release screws in area (1).
Remove trim (2).

Version with emergency release:
Disengage handle and Bowden cable (3).
