Removing and Installing / Replacing Left Luggage Compartment Wheel Arch Trim

51 47 151 Removing And Installing / Replacing Left Luggage Compartment Wheel Arch Trim

Special tools required:
- 00 9 317

Necessary preliminary tasks:
- Remove luggage compartment floor trim
- Remove top trim on tail panel

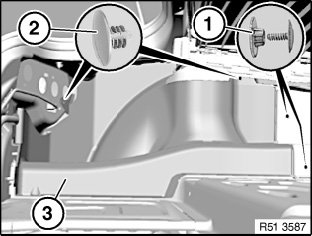

Release screw clips (1).
Release clips (2) on luggage compartment wheel arch trim (3).

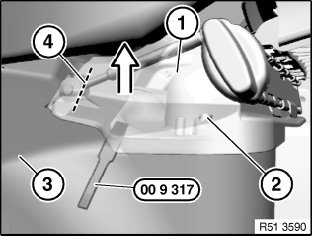

Release screw (2).







Carefully raise trim (1) on rear spring strut dome with special tool 00 9 317.
Cut open luggage compartment wheel arch trim (3) in area (4).
Remove luggage compartment wheel arch trim (3).

Installation:
Make sure luggage compartment wheel arch trim is correctly seated.
