Replacing Left Engine Mount

22 11 011 - Replacing left engine mount (N52K)





Necessary preliminary tasks:
- Secure engine Securing Engine In Installation Position in installation position
- Remove reinforcement plate Service and Repair
- Remove engine support arm Replacing Left Engine Support Arm.





Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ Specifications.





Installation:

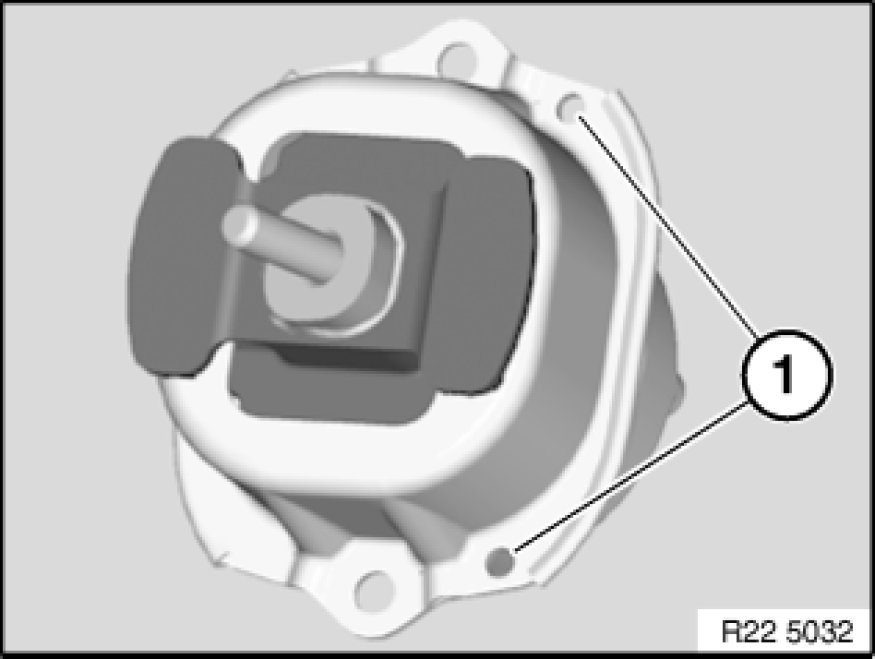

Holes (1) in engine mount must point to middle of vehicle.
