Interior - Rattle from the Upper Tailgate Trim

SI B51 32 07
Body Equipment

January 2008
Technical Service

SUBJECT:
Rattle from the Upper Tailgate Trim

MODEL:
E70 (X5) produced up to 4/2007

SITUATION

While driving over rough roads, a rattle may be heard from the upper trim on the tailgate.

CAUSE

Contact is made between the upper tailgate trim and the tailgate itself

CORRECTION

Install foam blocks to the back side of the tailgate trim.

PROCEDURE

1. Remove the upper tailgate trim per repair instruction RA 51 49 002.

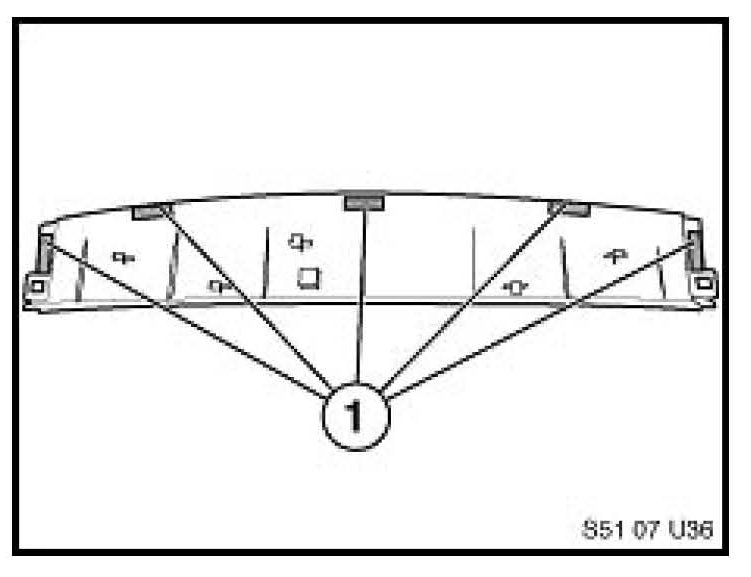

2. Secure 5 foam blocks (1) to the back side of the upper tailgate trim as per the diagram.

3. Reinstall the upper tailgate trim per repair instruction RA 51 49 002.

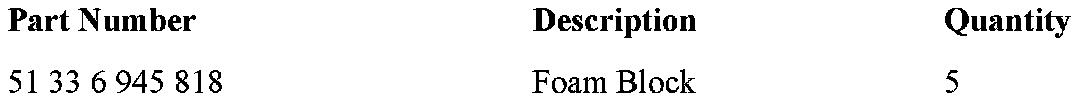

PARTS INFORMATION

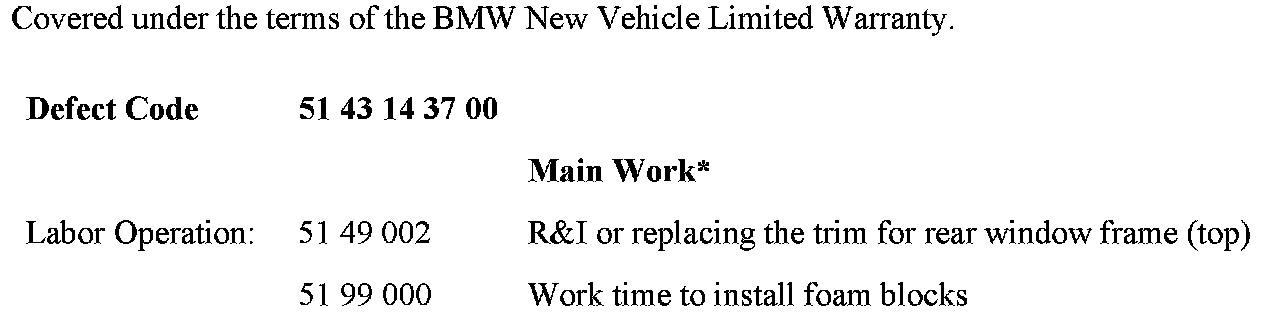

WARRANTY INFORMATION
