Adjusting Left Or Right Striker On Engine Hood/Bonnet

51 23 131 - Adjusting left or right striker on engine hood/bonnet





Note:
Adjusting striker is described in:
Adjusting engine hood/bonnet Adjusting Engine Bonnet/Hood.

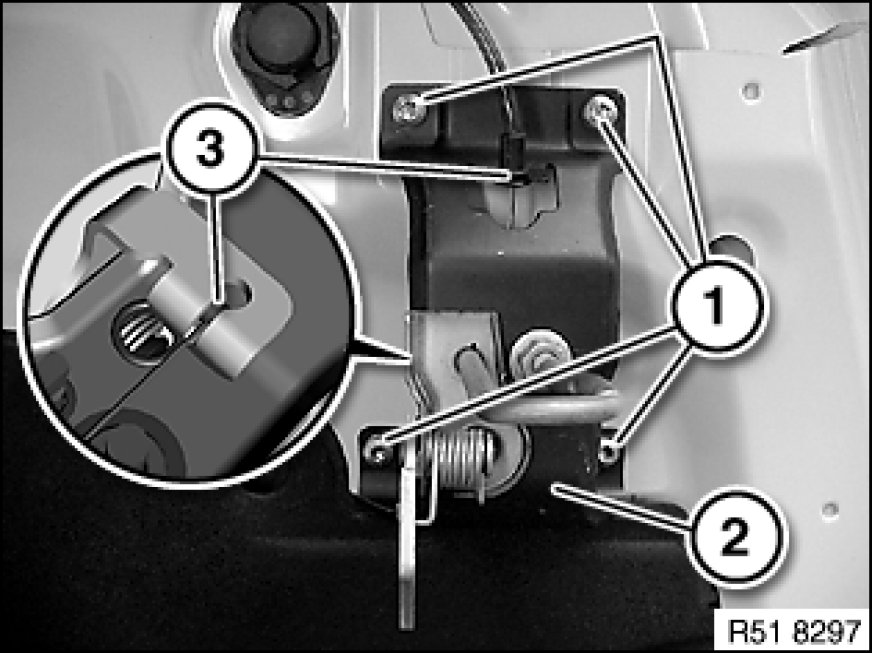

Unfasten screws (1) and remove striker (2).
Tightening torque 51 23 3AZ [1][2][3]51 23 Engine Compartment Lid Catch/Locks.
Left side only:
Disconnect Bowden cable (3).

Installation:
Adjusting hood/bonnet Adjusting Engine Bonnet/Hood
