CCC(R) - Book Mark Button #3 Inoperative/Self-Activates
SI B 65 02 07Sound System, Cruise, Alarms, Monitors
September 2009
Technical Service
This Service Information bulletin supersedes SI B65 02 07 dated September 2007.
[NEW] designates changes to this revision
SUBJECT
Functional Bookmark Button #3 Inoperative or Activates on its Own
MODEL
E70 (X5) with CCC (Car Communication Computer, SA 609)
Vehicles produced up to January 23, 2007
SITUATION
1. The customer is not able to set a functional bookmark to programmable button #3. The button cannot be pushed in as far as the other buttons to store a function.
2. The CCC randomly switches to one of the stored functional bookmark settings.
CAUSE
Button carrier tolerance
PROCEDURE
1. If button #3 cannot be pushed in as far as the other buttons of the front panel, modify the carrier as per the procedure in the attachment.
2. Replace the button panel carrier on the CCC as per Repair Manual RA 6583565.

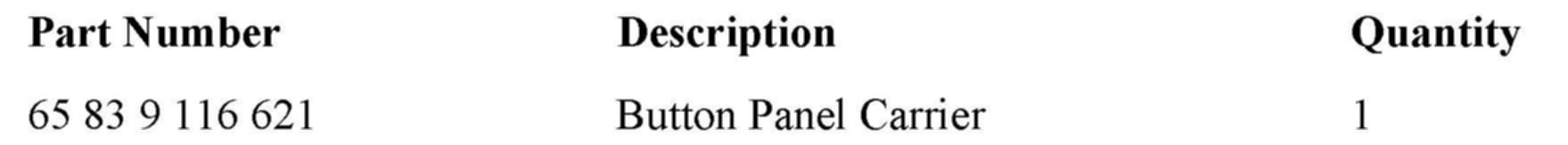

PARTS INFORMATION

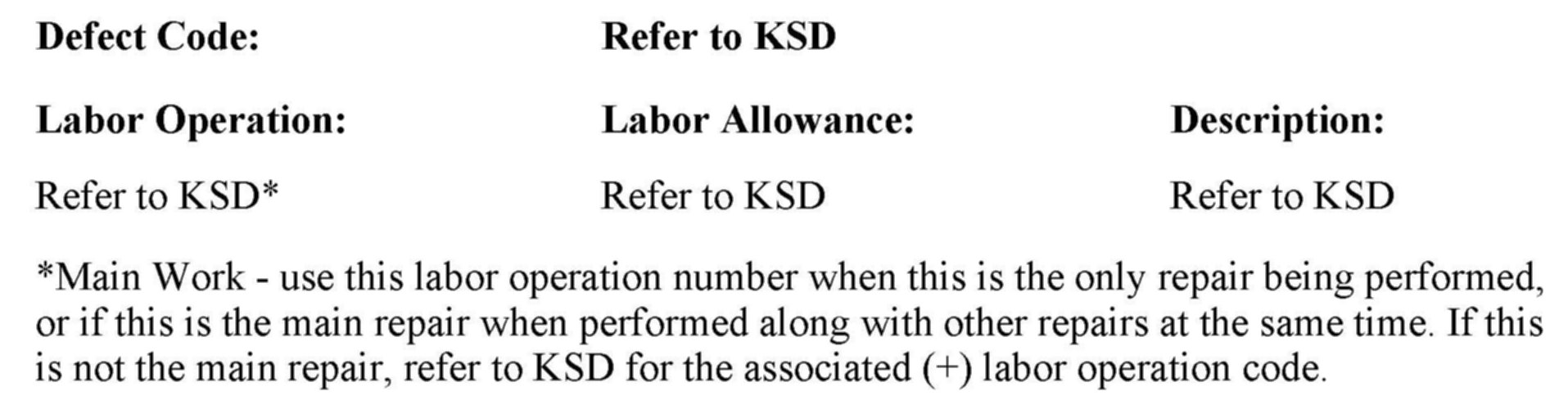

[NEW] WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty.

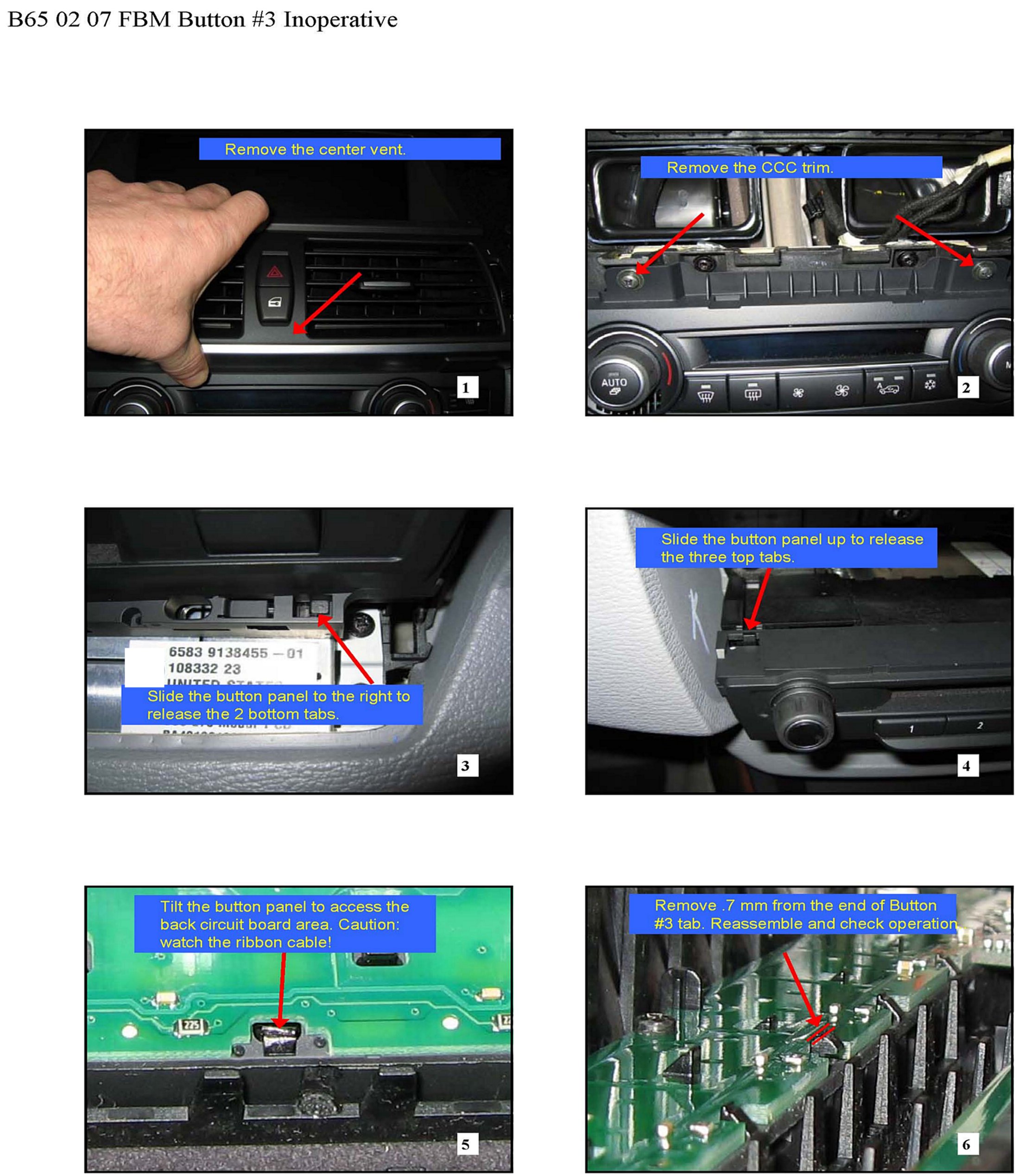

Attachment - B650207FBM Modification
