Home >> BMW >> 2007 >> X3 3.0si (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Front Axle >> General - Track Width/Wheelbase E83 Series

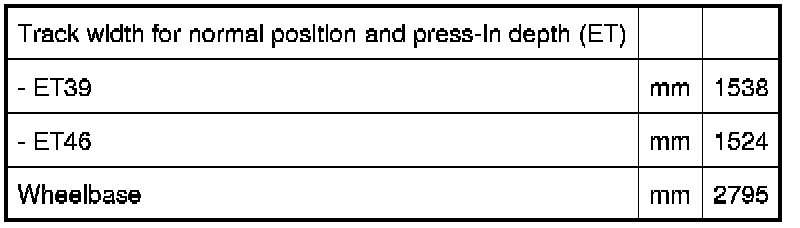

General - Track Width/Wheelbase E83 Series




31 00 General - Track Width / Wheelbase E83 Series
