Heater Core Temperature Sensor / Switch: Service and Repair

64 11 910 - Removing and installing/replacing temperature sensor for heater core





Necessary preliminary tasks:
- Remove switch unit in center console Removing and Installing/Replacing Switch Unit in Center Console

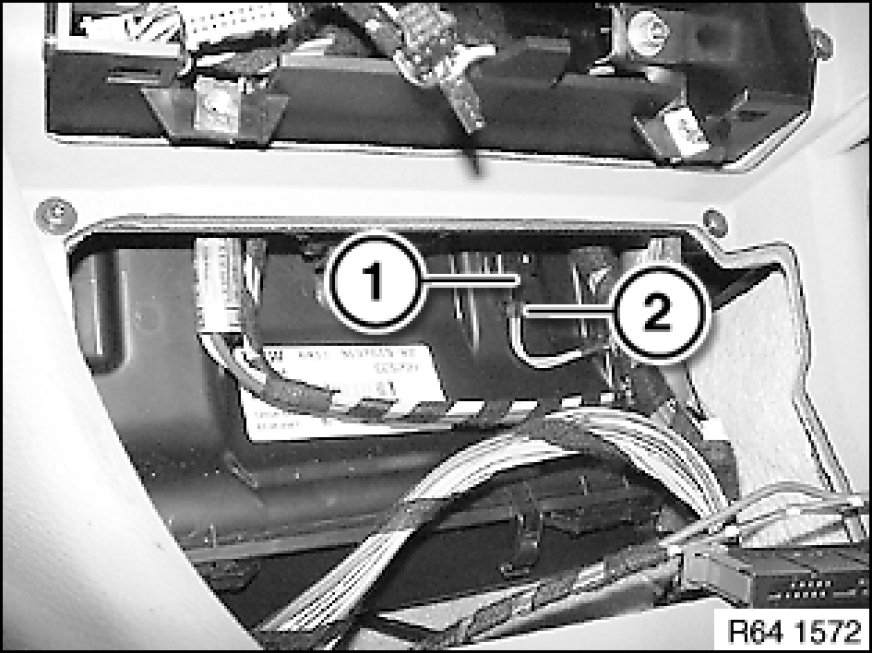

Remove temperature sensor (1) and disconnect plug connection (2).
