Evaporator Temperature Sensor / Switch: Service and Repair

64 11 942 - Replacing evaporator temperature sensor





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals

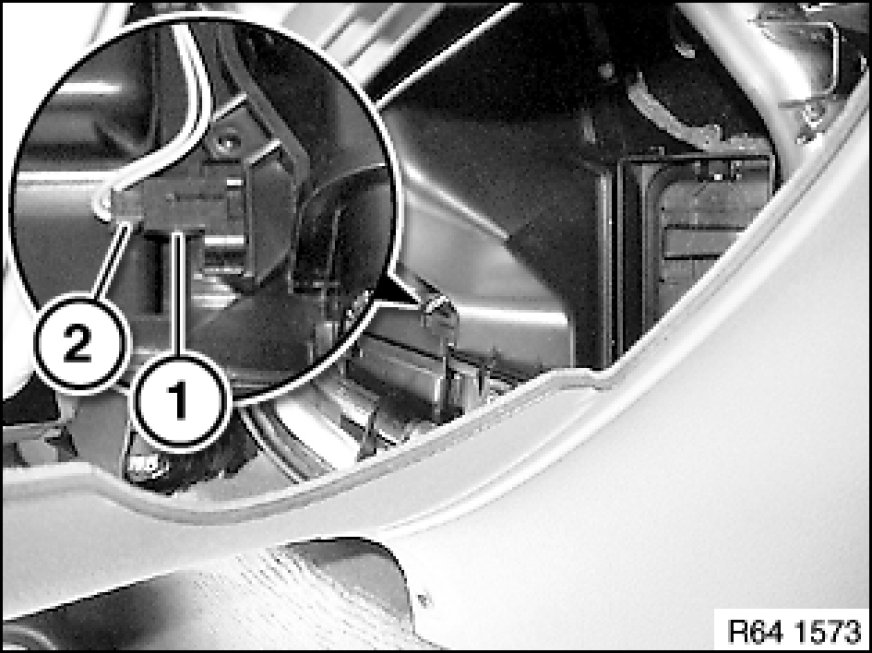

Note:
Left footwell heating duct removed for purposes of clarity.

Pull out evaporator temperature sensor (1) and disconnect plug connection (2).

Installation:
Ensure evaporator temperature sensor (1) is correctly seated.
