Removing and Installing/Replacing Airbag Unit (From 09/06)

32 34 020 - Removing and installing/replacing airbag unit (from 09/06)





Warning!
Observe the following instructions to avoid any risk of injury by the airbag unit.
- Comply with safety regulations [1][2]Safety Regulations for Handling Components with Gas Generators for handling components with gas generators.
- Do not exert any force on the airbag unit.
- Use only specified tools for releasing the airbag unit.
Note: Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.





Important!
Steering wheel Removing and Installing/Replacing Steering Wheel (From 09/06) must be replaced if airbag unit has been triggered!
Follow procedure after airbag triggering 72 12 ... Procedure After Airbag Triggering As Result of an Accident.





Necessary preliminary tasks:
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead

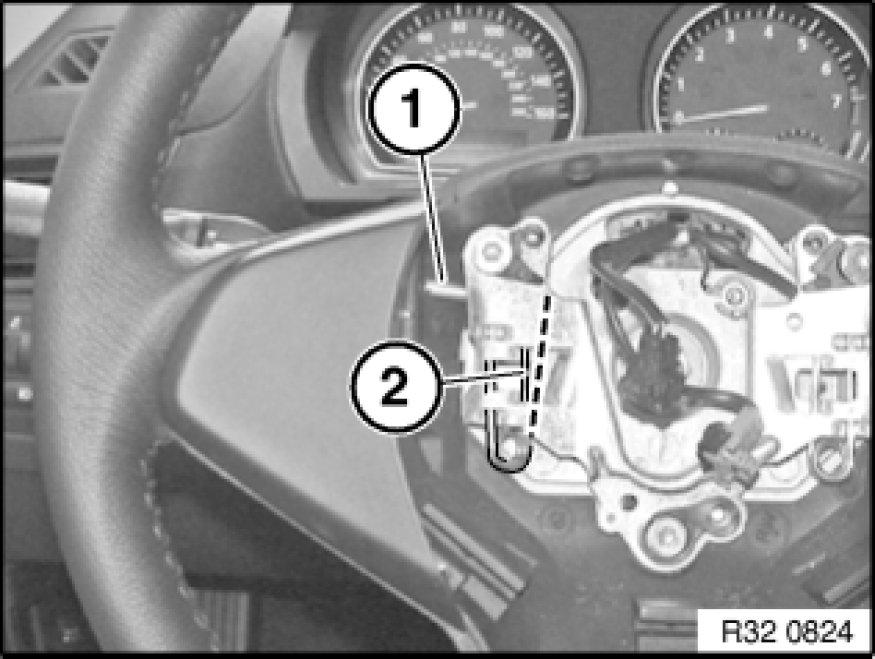

Insert Torx screwdriver T30 (1) horizontally into opening on reverse side of steering wheel until a spring resistance is felt (approx. 4 cm).
Press spring leg (2) with Torx screwdriver (1) up to stop and pull airbag unit away from steering wheel.
Repeat procedure on other side.

Installation Note:
Make sure electrical leads are correctly positioned.
Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.





Warning!
Danger of injury!
Airbag unit may only be set down with the airbag itself facing upwards.

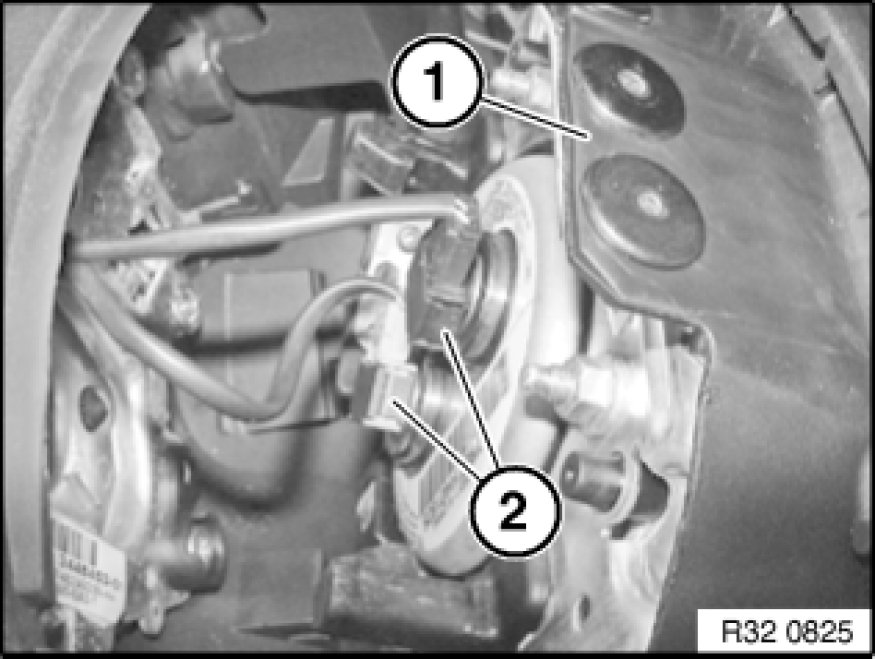

Tilt airbag unit (1) towards rear.
Disconnect plug connections Unlocking/Locking Airbag Plug Connections(2) and remove airbag unit (1).

Installation Note:
Connect plugs to connections of same color on airbag unit.
