Parking Assist Control Module: Service and Repair

66 20 508 - Removing and installing (replacing) control unit (Park Distance Control)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove luggage compartment floor trim panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel





Remove clips (1) and fold back luggage compartment floor trim panel at front (2).

Installation Note:
Make sure front luggage compartment floor trim panel (2) is correctly seated.

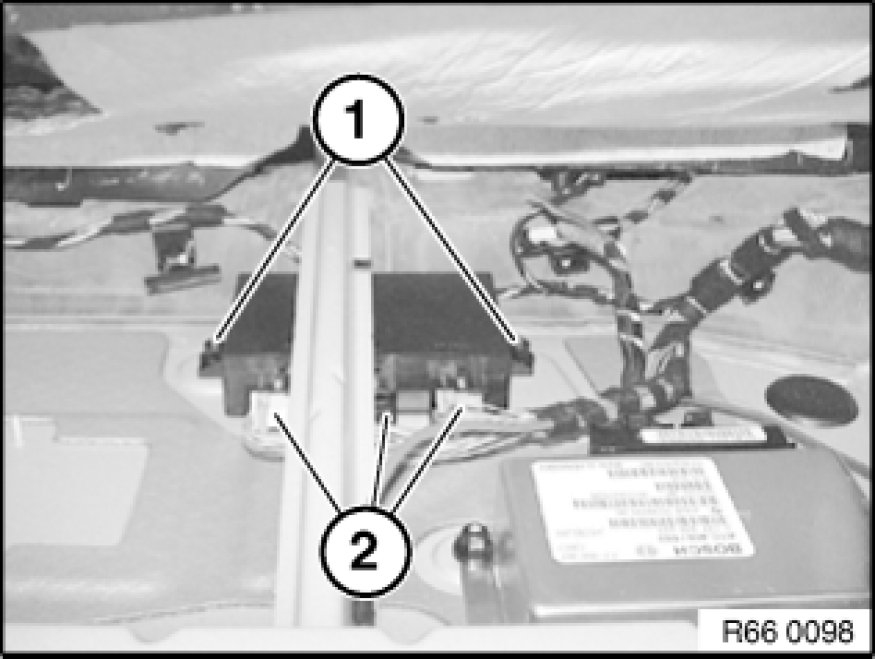

Unscrew nuts (1).
Disconnect plug connections (2) and feed out control unit.





Replacement:
Carry out programming/coding Programming and Relearning.
