Home >> BMW >> 2007 >> X3 3.0si (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Seat and Mirror Functions >> Electrochrome Mirror

Electrochrome Mirror

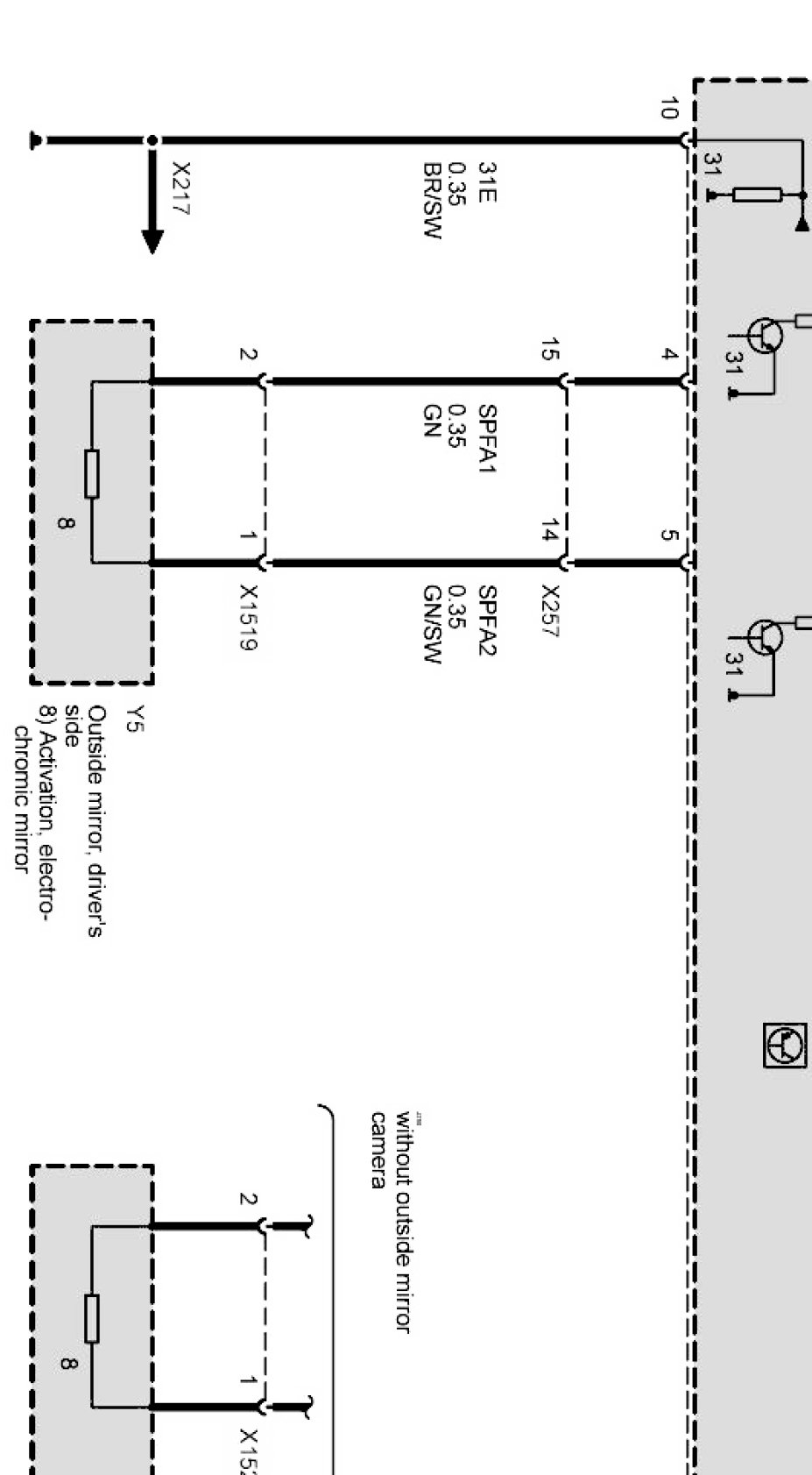

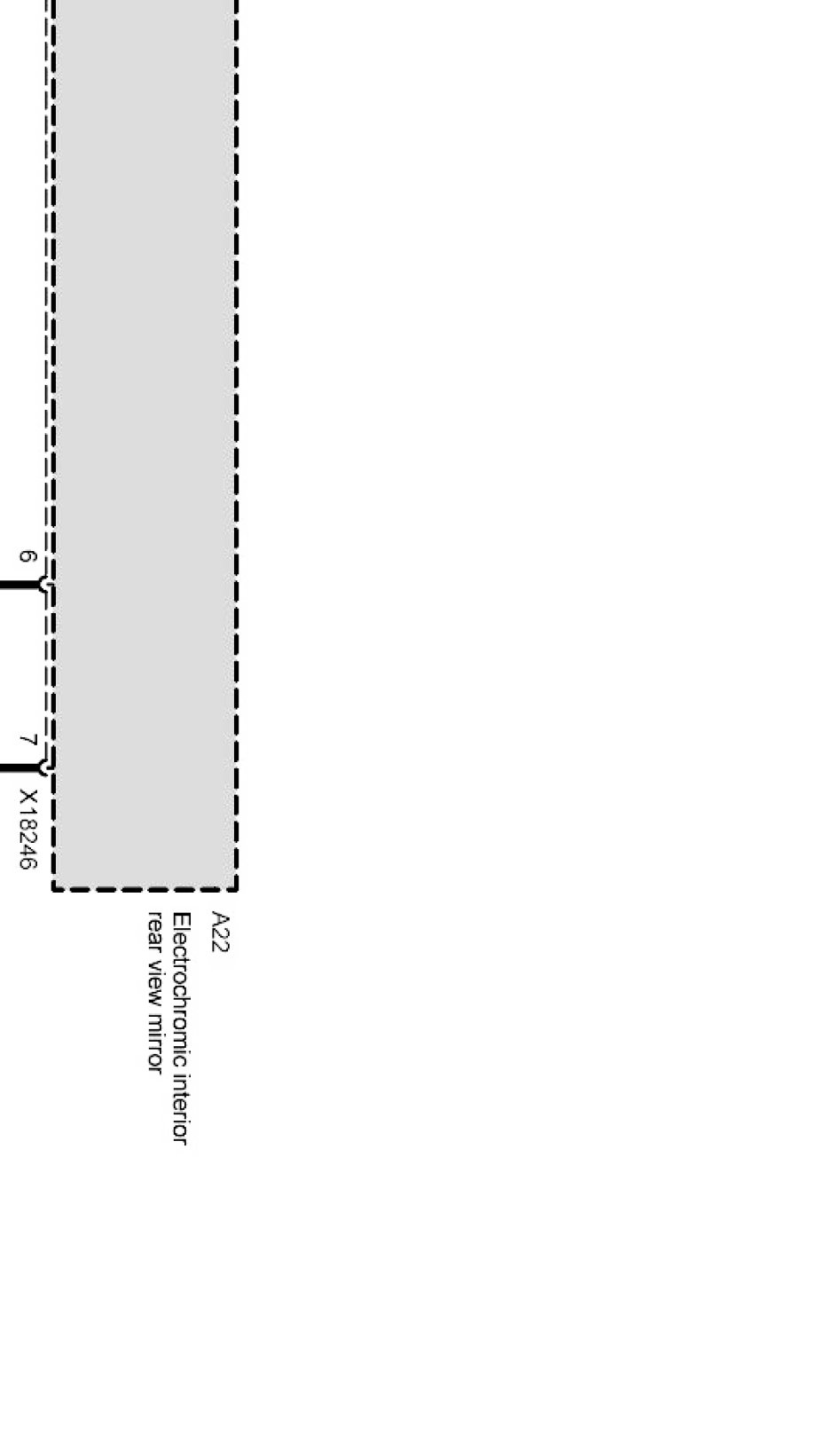

Electrochromic mirror Part 1:

Electrochromic mirror Part 2:

Electrochromic mirror Part 3:

Electrochromic mirror Part 4:
