Multifunction Steering Wheel (X Series_X3-E83 Up to 09/06)

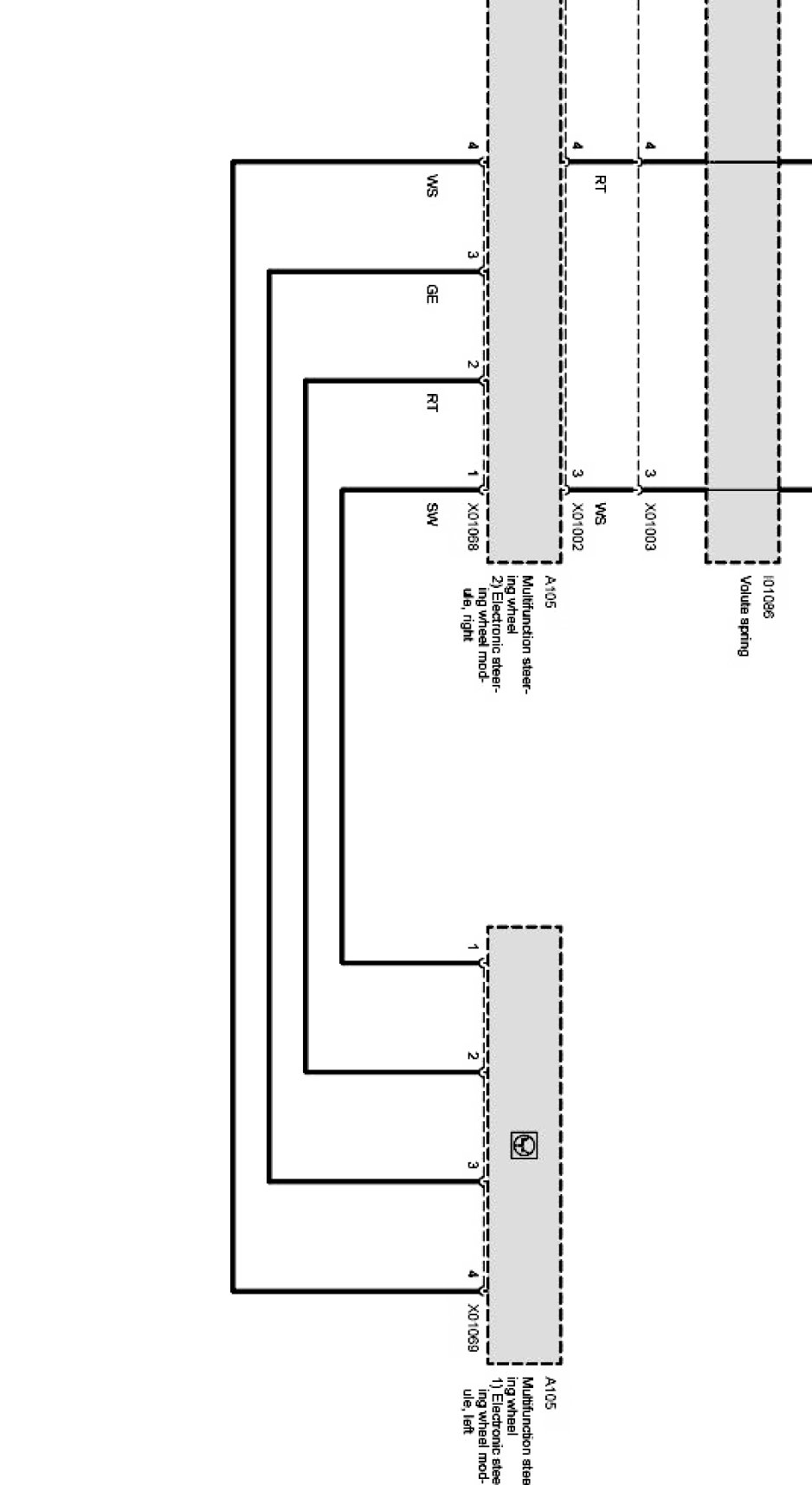

Multifunction steering wheel Part 1:

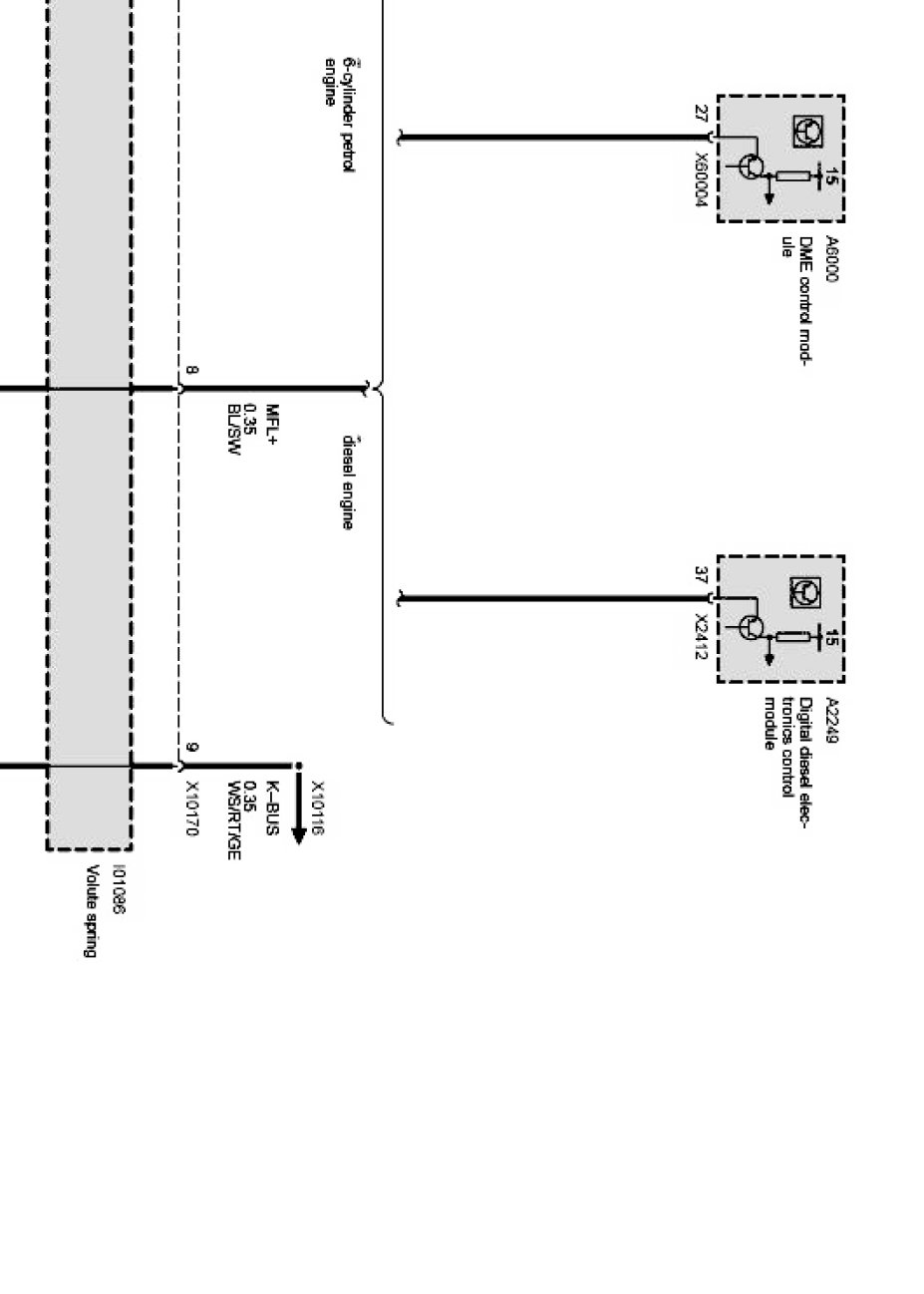

Multifunction steering wheel Part 2:

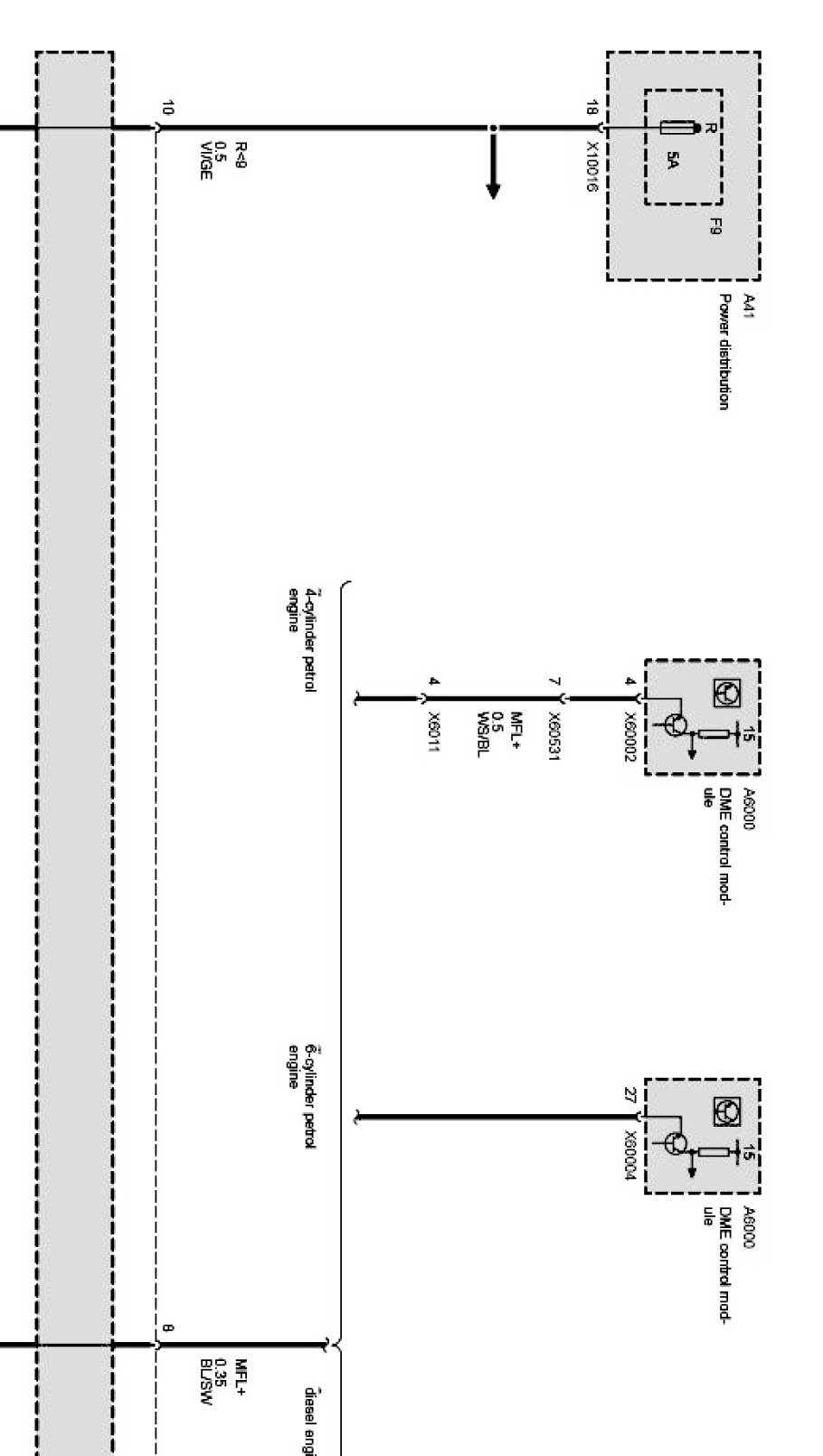

Multifunction steering wheel Part 3:

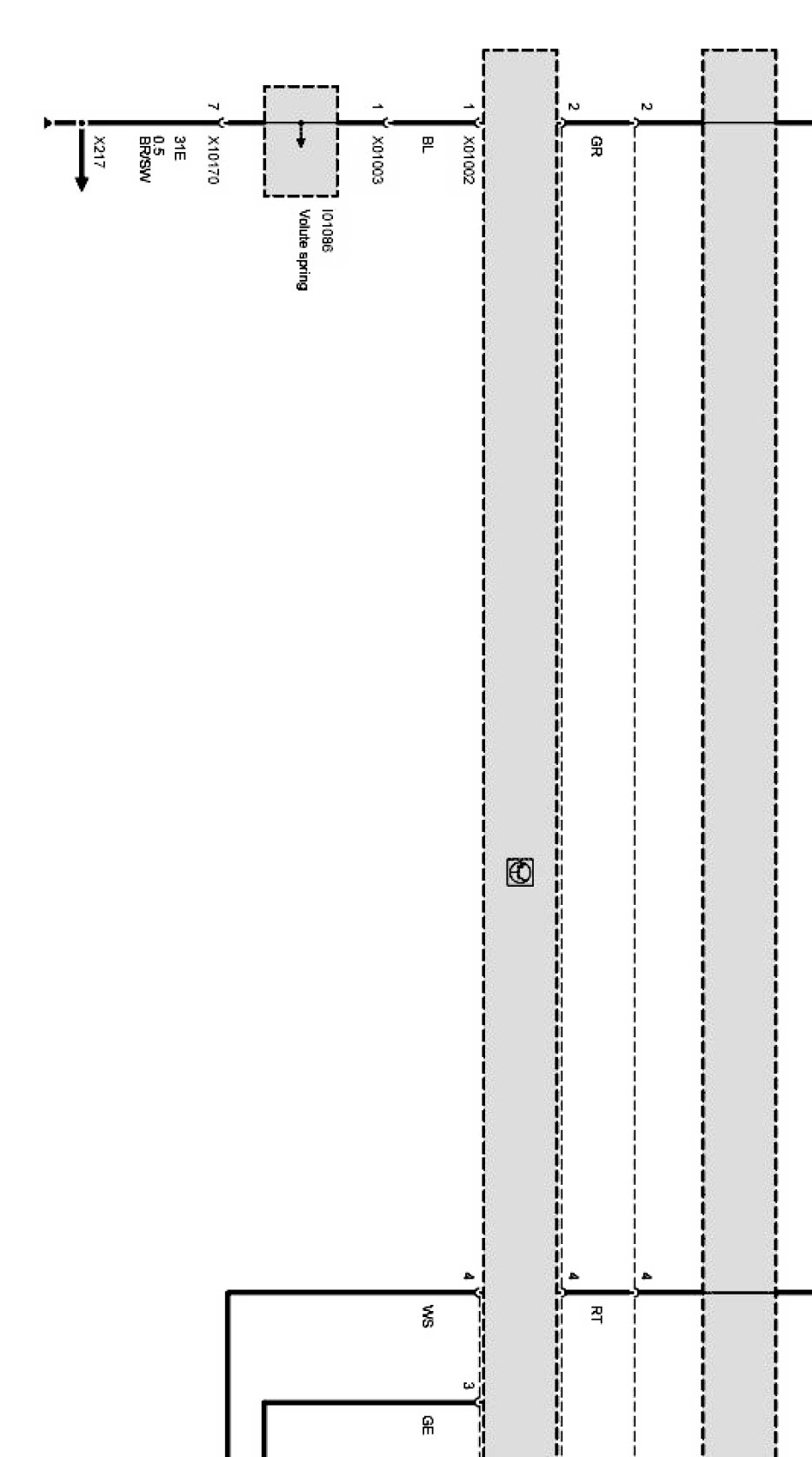

Multifunction steering wheel Part 4:
