Panorama Glass Roof

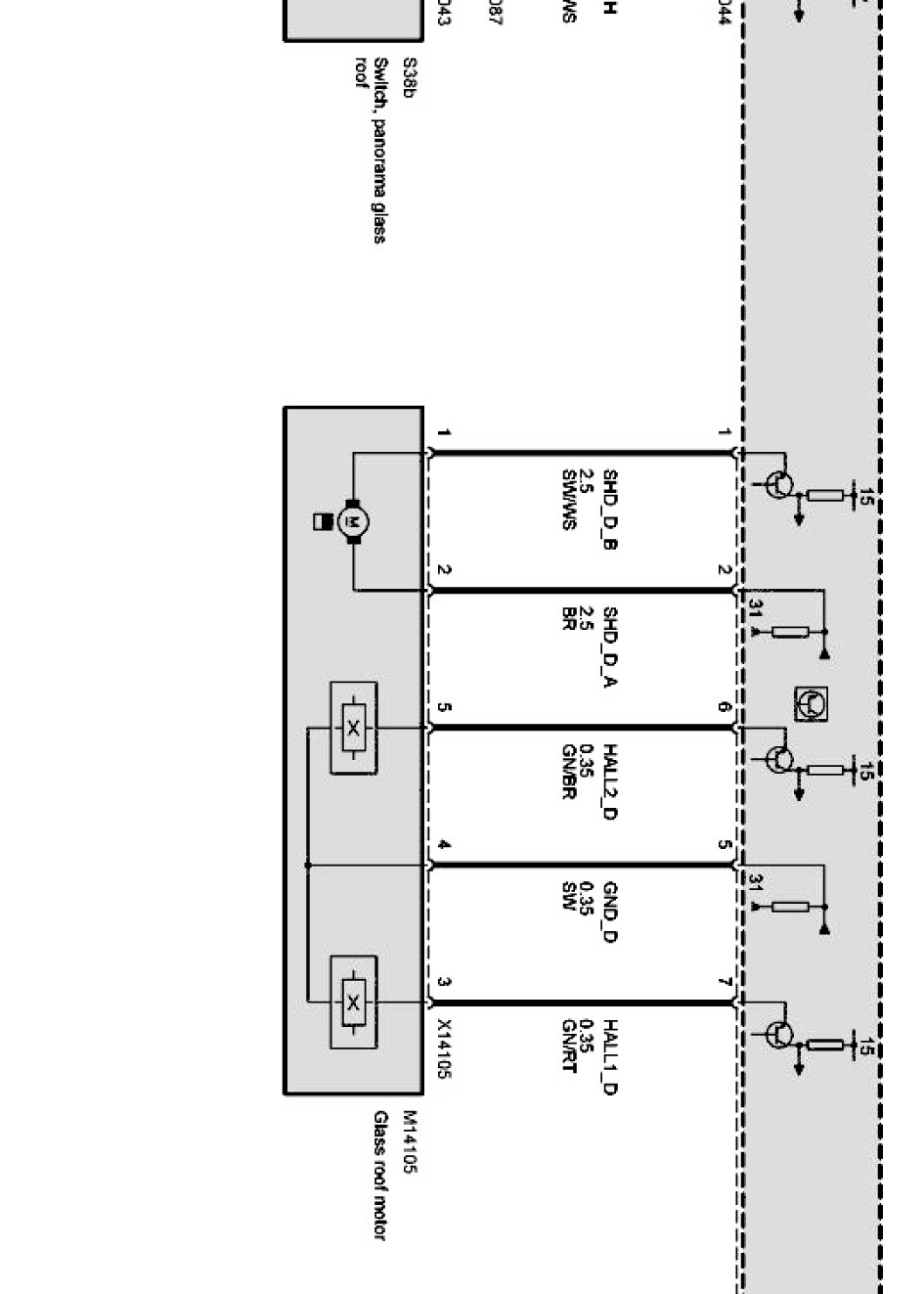

Panorama glass roof Part 1:

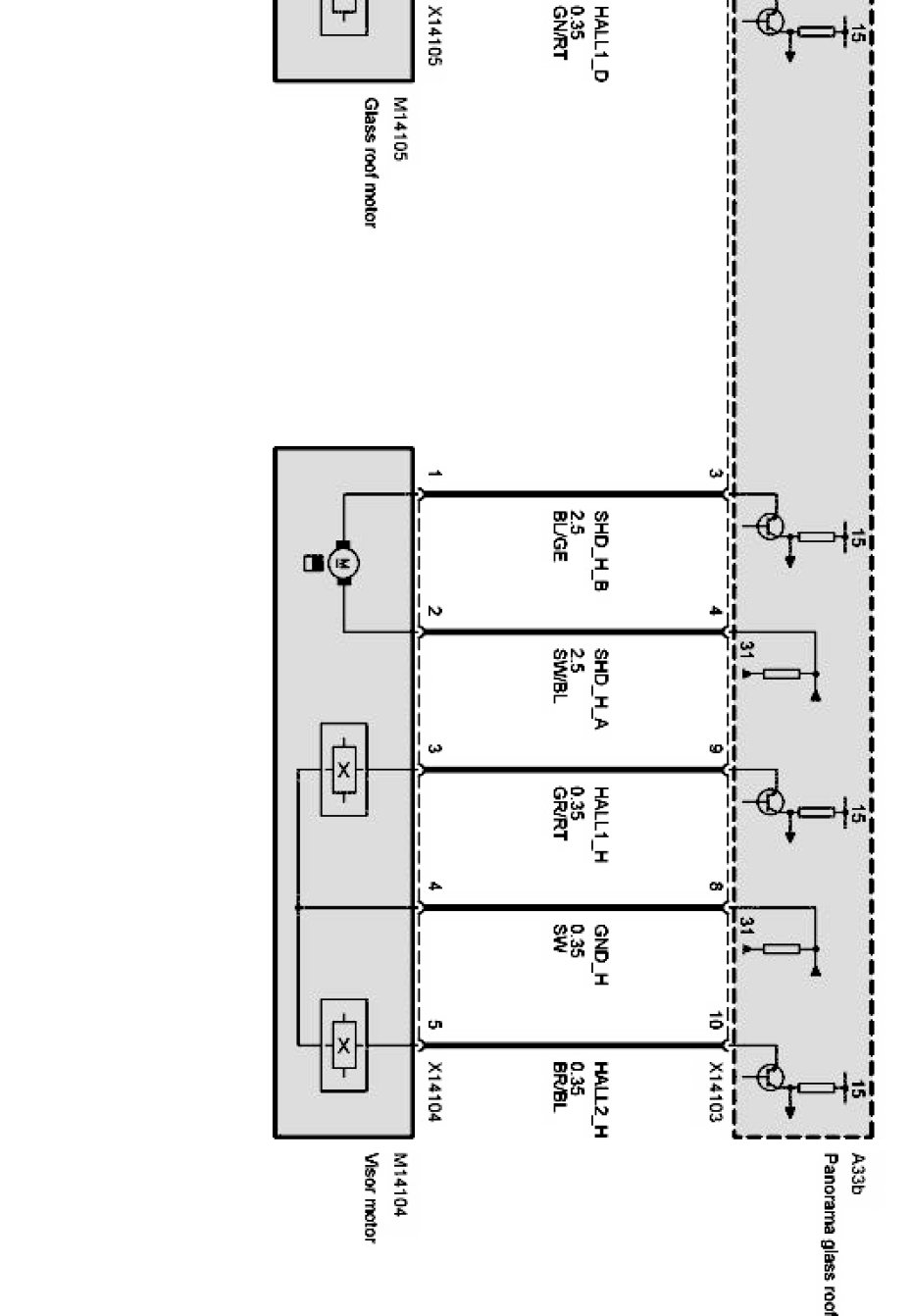

Panorama glass roof Part 2:

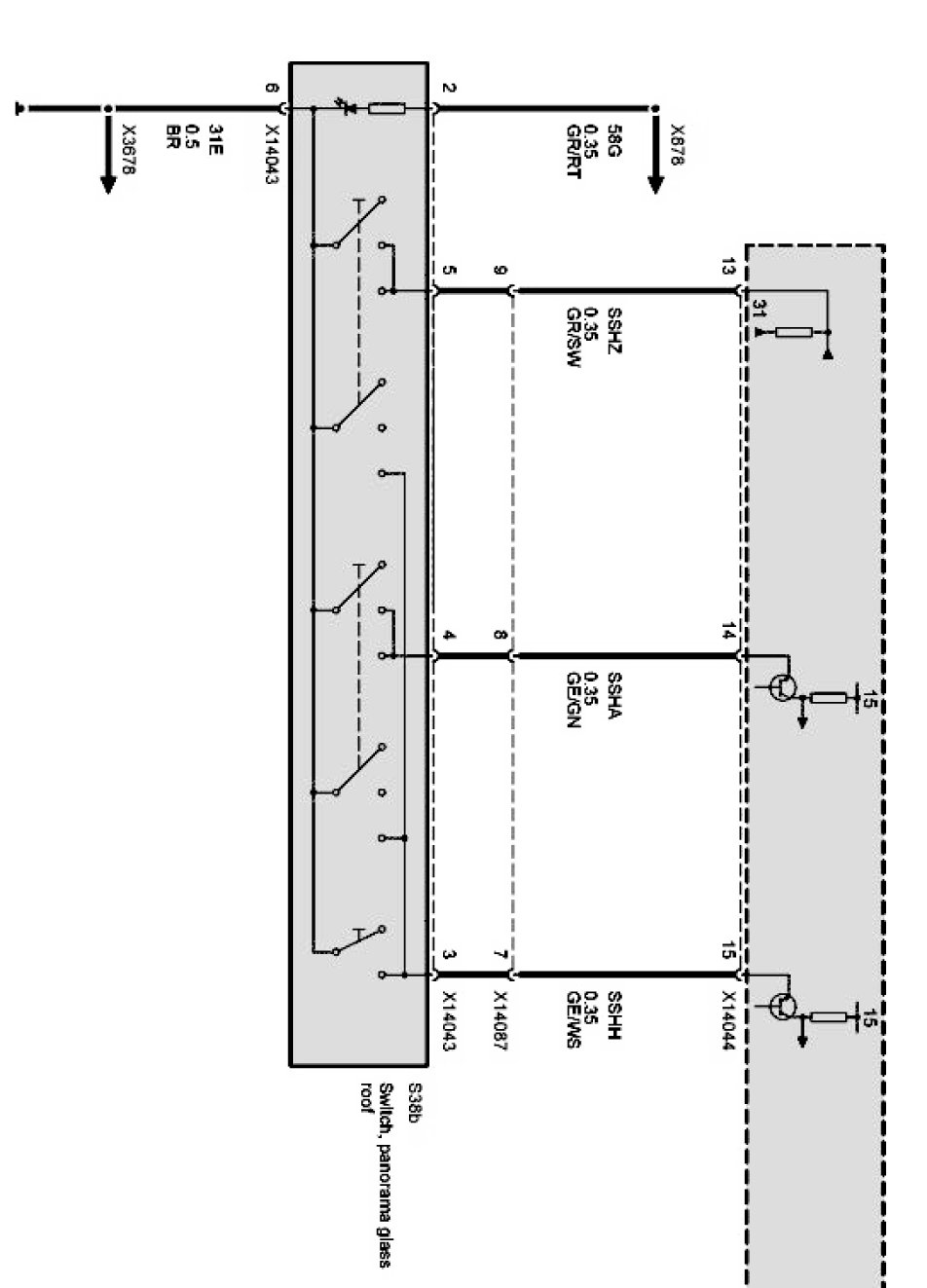

Panorama glass roof Part 3:
