Adaptive Headlight (As of 03/06 Up to 09/06)

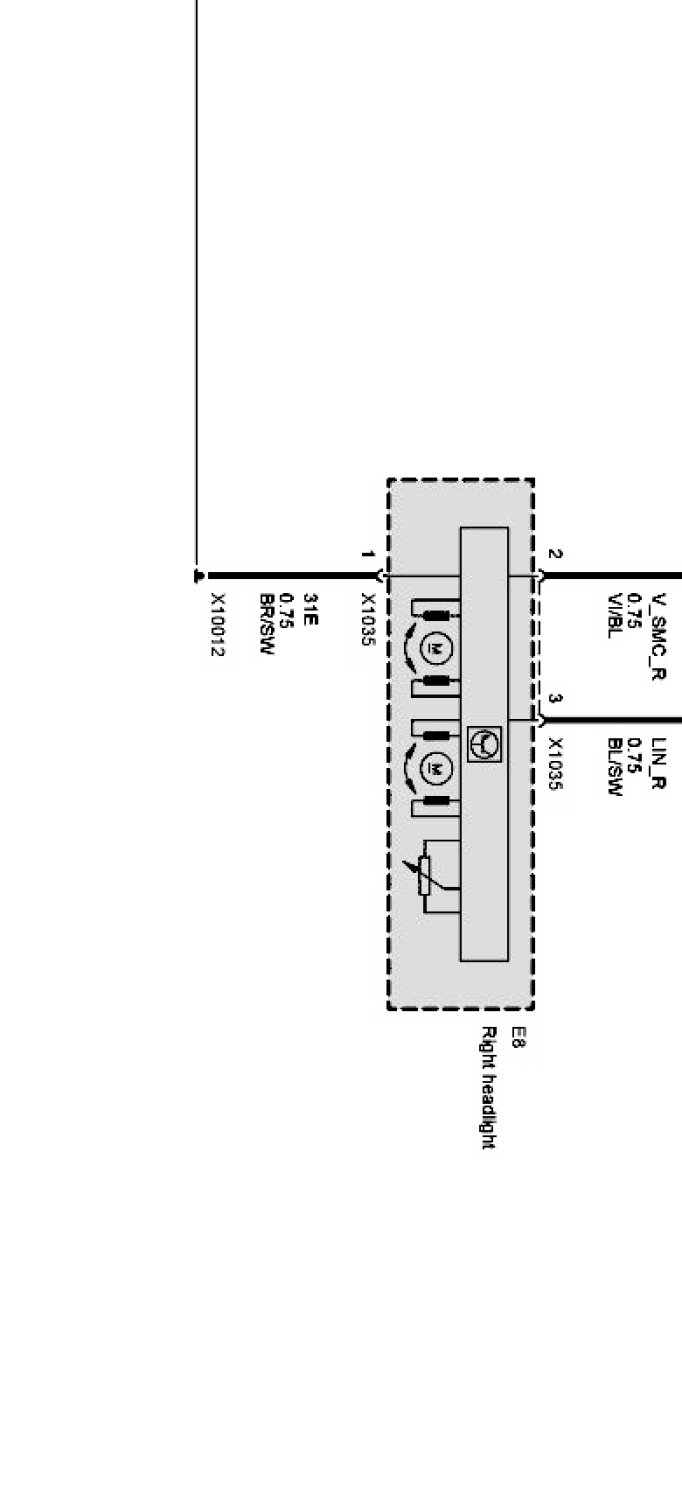

Adaptive headlight Part 1:

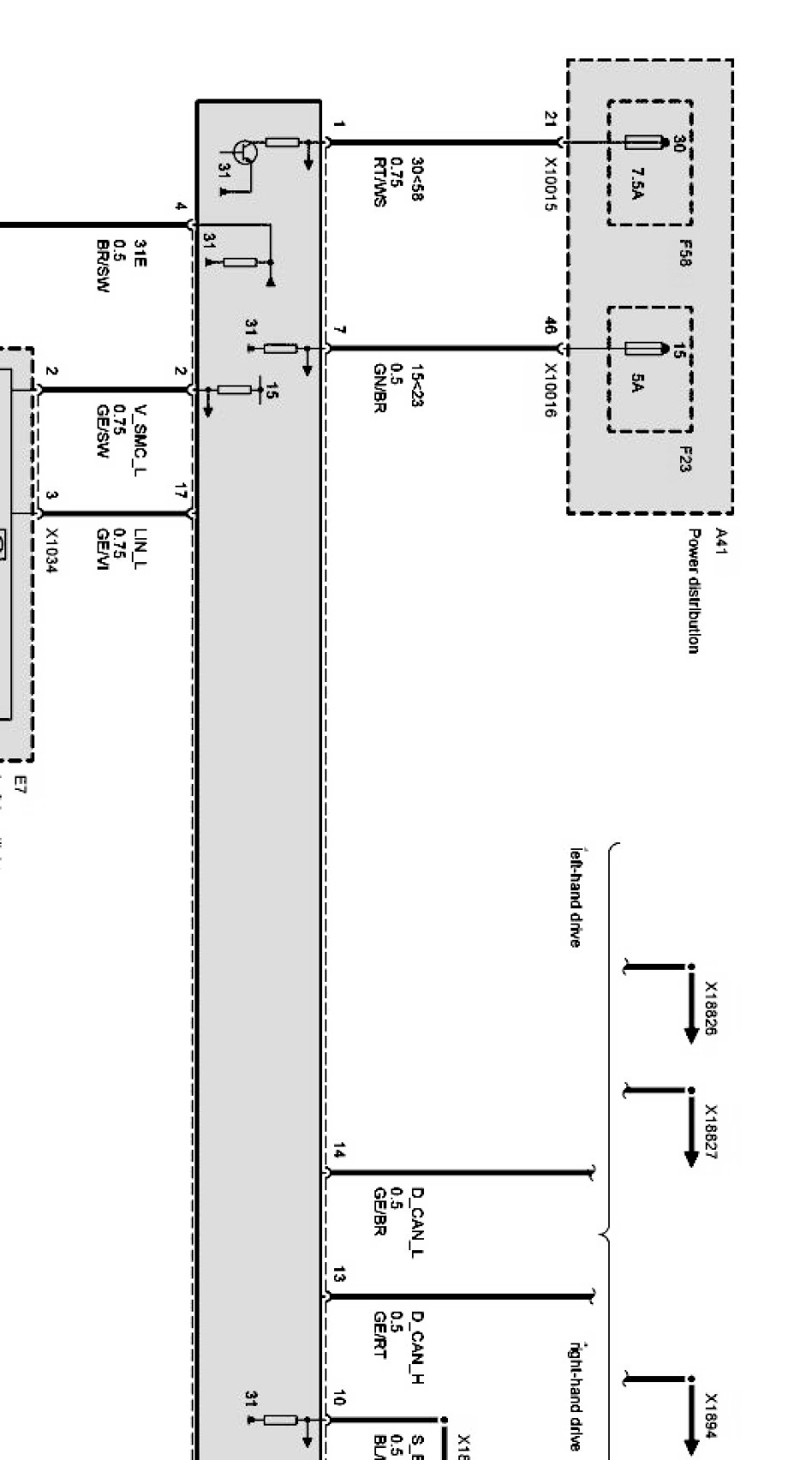

Adaptive headlight Part 2:

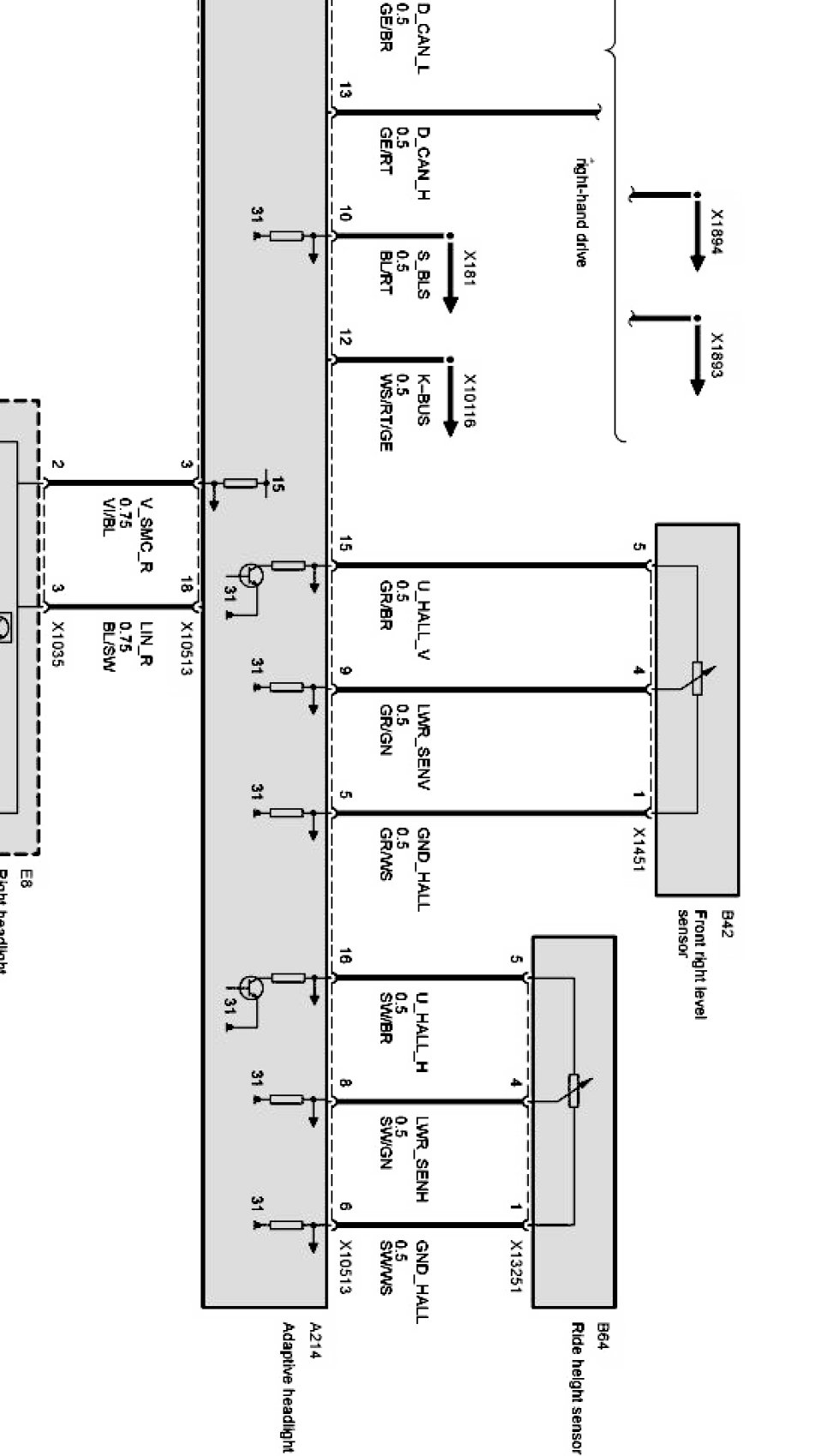

Adaptive headlight Part 3:

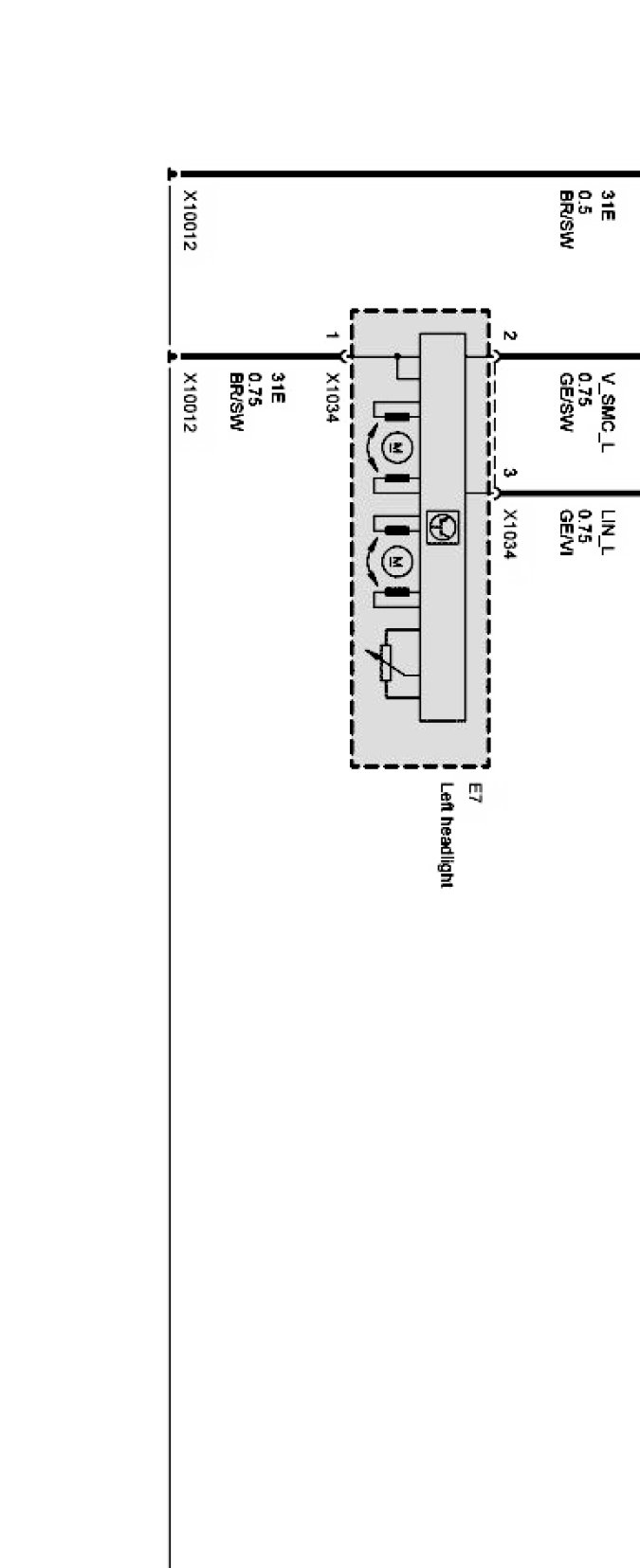

Adaptive headlight Part 4:
