Heating and Air Conditioning Functions (X Series_X3-E83 With IHKR E83)

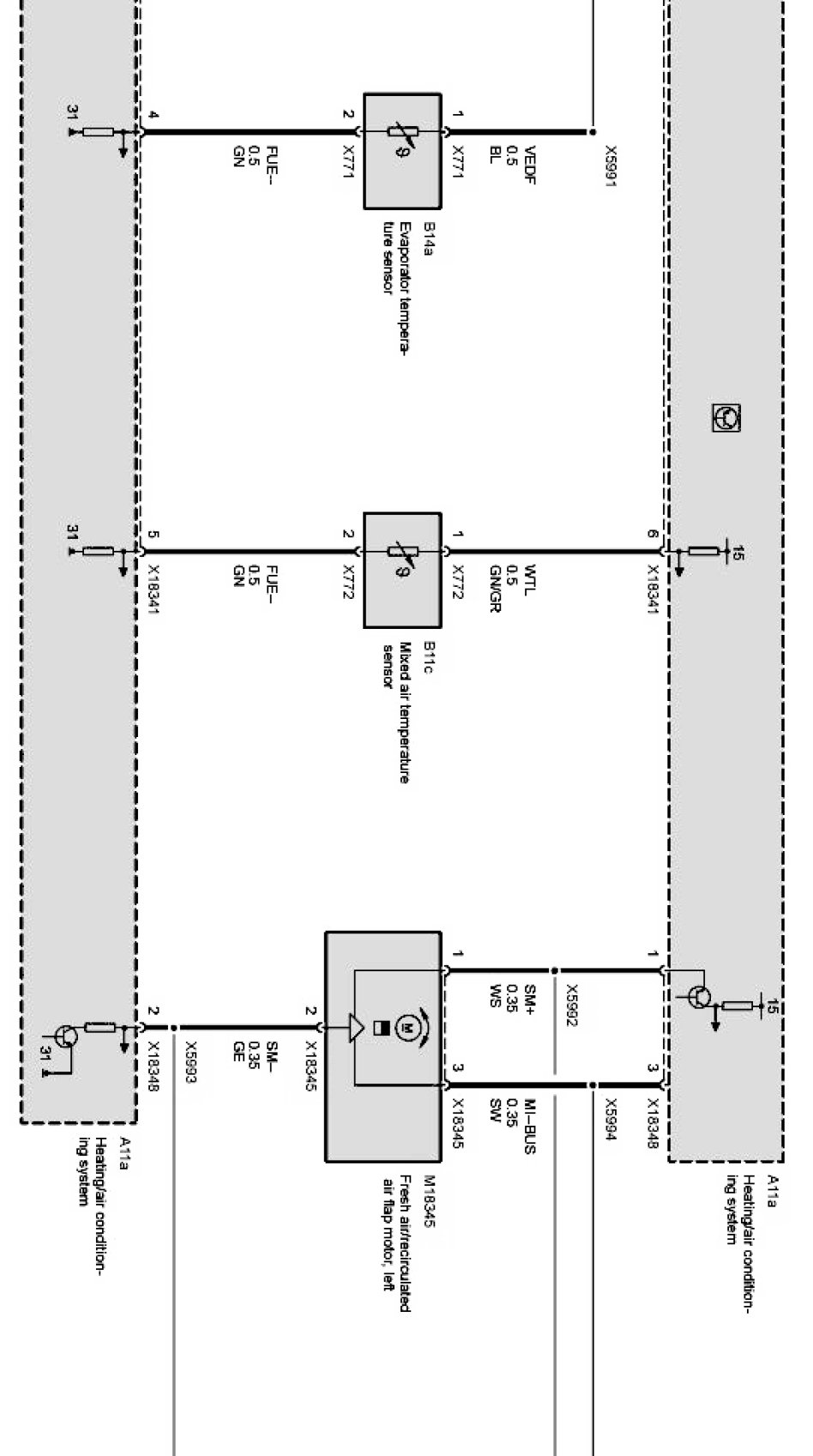

Heating and air conditioning functions Part 1:



Heating and air conditioning functions Part 2:



Heating and air conditioning functions Part 3:
