Home
>>
BMW
>>
2007
>>
X3 3.0si (E83) L6-3.0L (N52K)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Display and Information Functions
>>
On-Board Computer Functions
>>
Instrument-Cluster Supply
Instrument-Cluster Supply

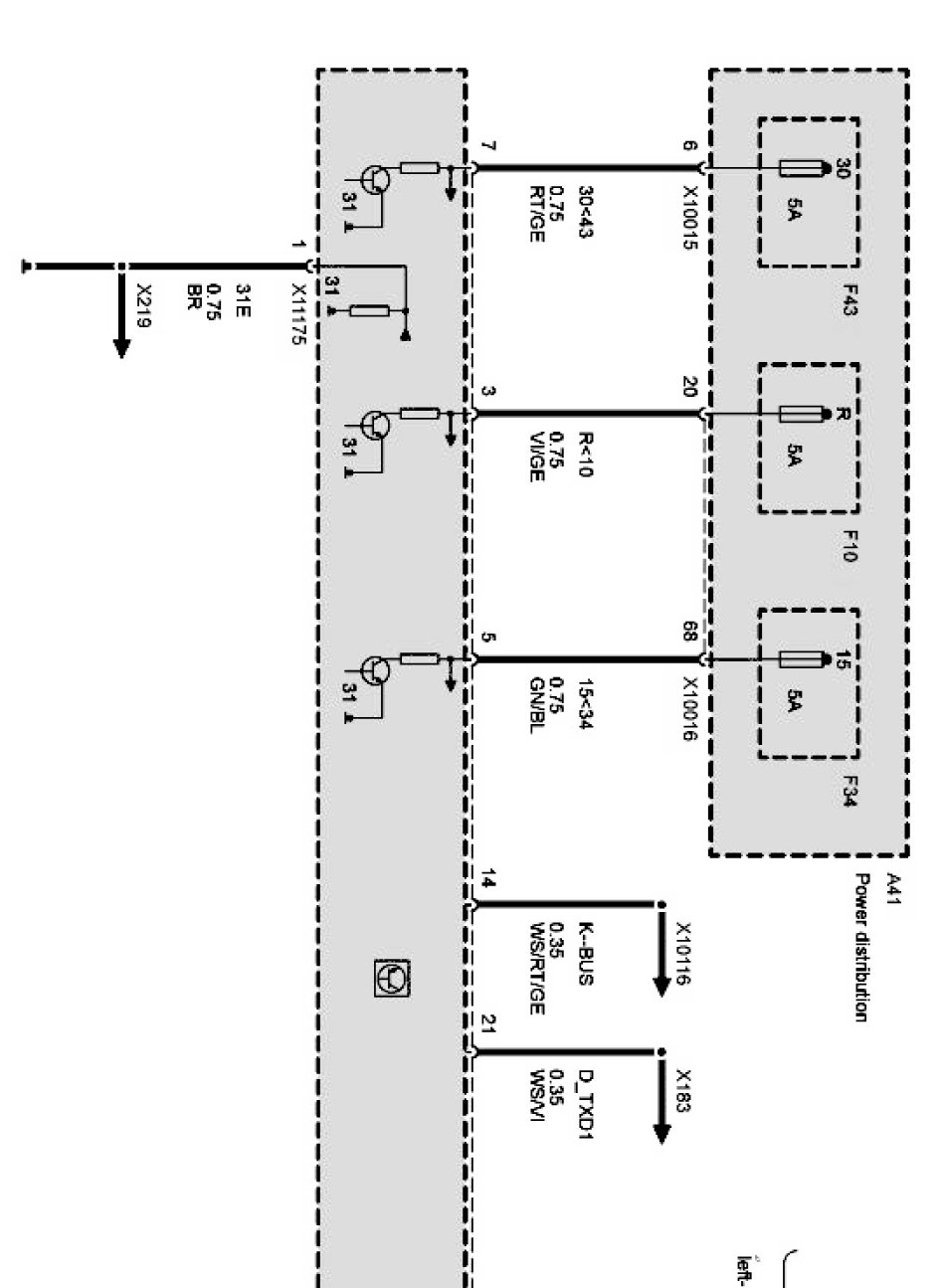

Power supply Part 1:

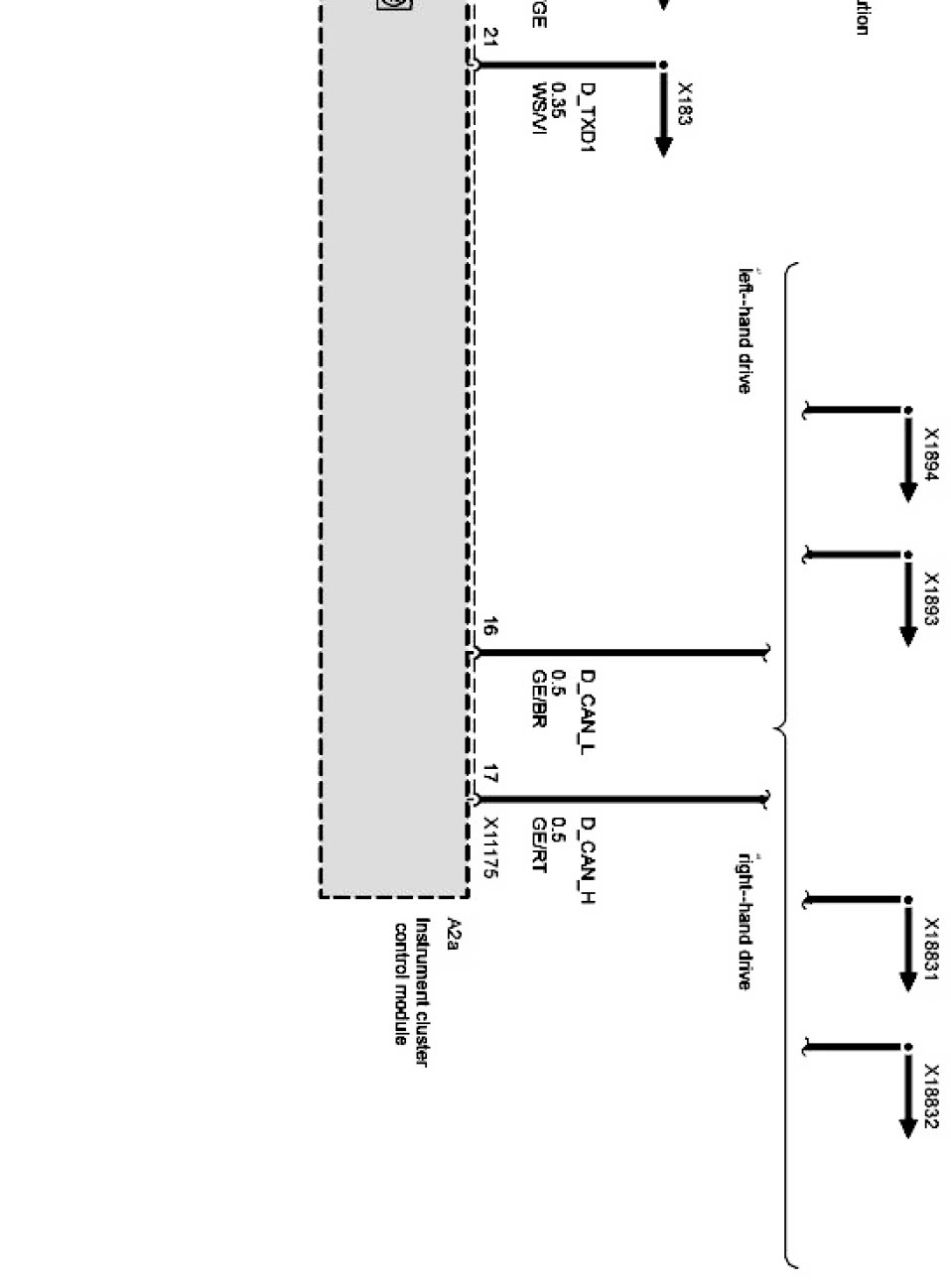

Power supply Part 2:
