A11A Heating/A/C Conditioning System (X Series With IHKA Integrated Automatic Heating/Air Conditioning E83)

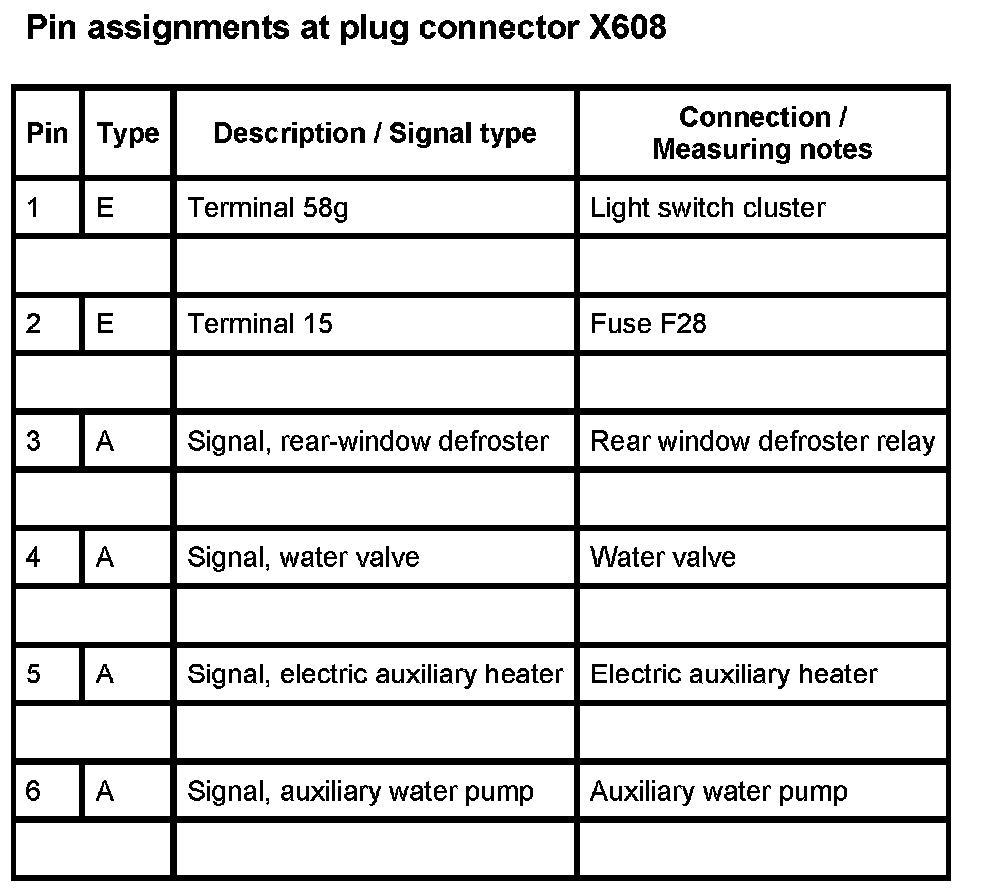

X608:

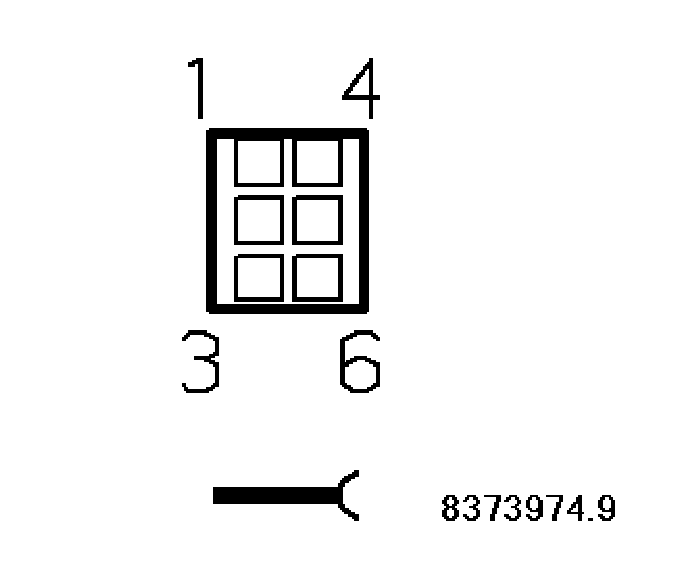

X608:
