Removing and Installing/Replacing Backrest Frame for Left Rear Seat (Through-Loading System)

52 26 080 - Removing and installing/replacing backrest frame for left rear seat (through-loading system)





Necessary preliminary tasks:
- Remove backrest cover Replacing Backrest Cover For Rear Seat (Through-Loading System) On Left with padding on left
- Remove mounting for roller blind Removing and Installing/Replacing Fixture for Roller Blind on Rear Seat (Through-Loading System) on Left/Right
- Remove lock for rear seat backrest Removing and Installing/Replacing Lock for Left Rear Seat Backrest (Through-Loading System)

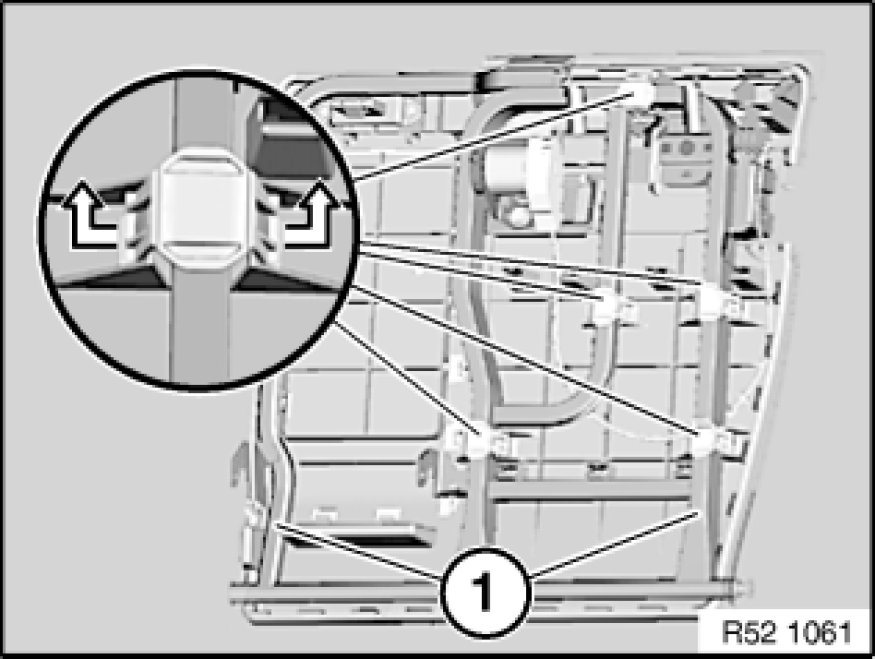

Unclip retainers and remove.
Remove backrest frame (1).





Replacement only:

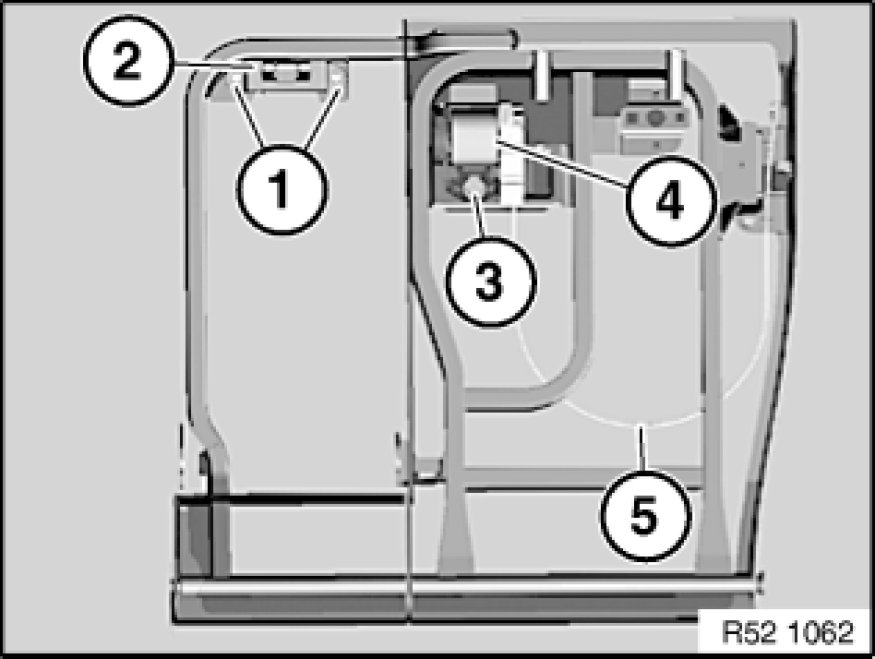

Release screws (1).
Remove retaining hook (2).
Unscrew bolt (3).
Tightening torque 72 11 15AZ Specifications.
Remove automatic reel (4) with Bowden cable.
