Removing and Installing/Replacing Seat Mechanism (On Front Seat Normal/Manual), Left or Right

52 13 025 - Removing and installing/replacing seat mechanism (on front seat normal/manual), left or right

Remove seat pan and flexmat on front seat,
refer to 52 13 ... Removing and Installing/Replacing Seat Pan and Flexmat (Normal/Manual), Left or Right
Remove backrest frame on front seat,
refer to 52 13 030. Removing and Installing/Replacing Back-Rest Frame on Left or Right Front Seat (Normal/Manual)
Remove seatbelt tensioner,
refer to 72 11 030.

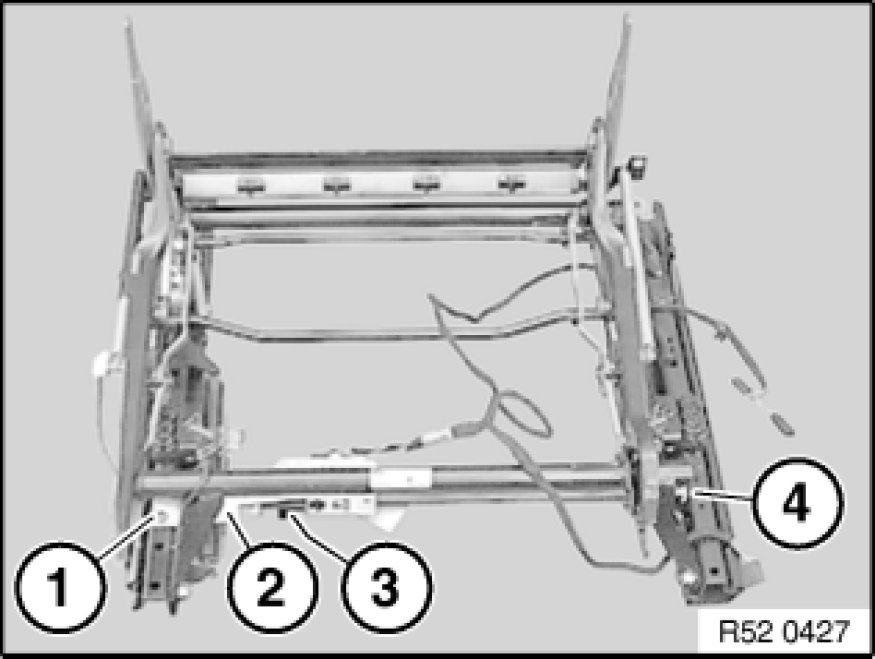

Release screw (1) and cable tie (3).
Remove retaining bracket (2) with seat wiring harness from seat mechanism (4).
