Removing and Installing/Replacing Inner Cover on Left or Right Front Seat Backrest (Normal/Manual)




52 13 041 - Removing and installing / replacing inner cover on left or right front seat backrest (normal/ manual)





Note:
Shown removed for purposes of clarity.

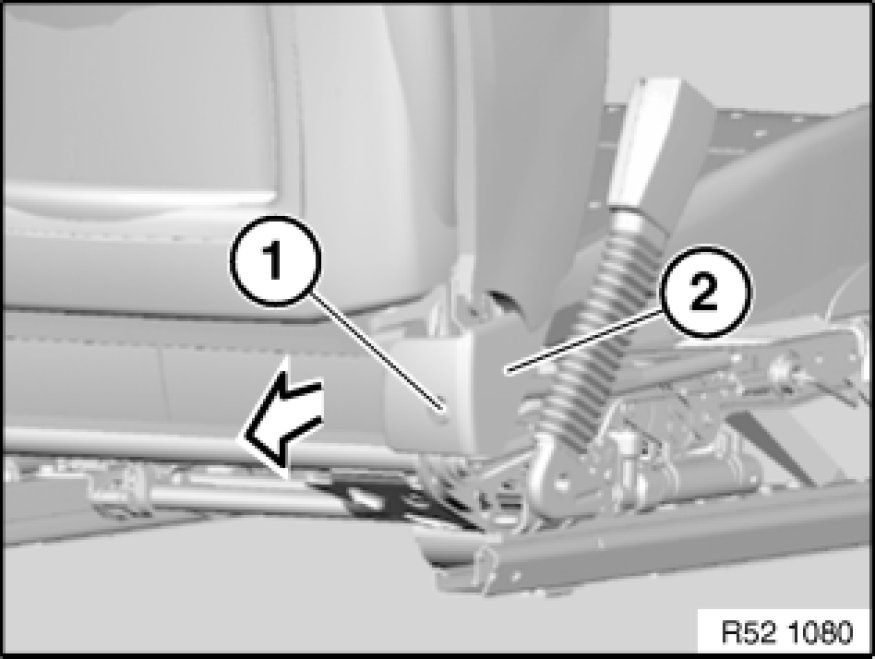

Release screw (1) and remove trim (2).
