Removing and Installing/Replacing Back-Rest Frame on Left or Right Front Seat (Normal/Manual)

52 13 030 - Removing and installing / replacing back-rest frame on left or right front seat (normal / manual).

Remove backrest frame and backrest cover with support,
refer to 52 13 405. Replacing Back-Rest Cover For Left or Right Front Seat (Normal/Manual)
Model with lumbar supports:
If necessary, remove lumbar cushion on front seat,
refer to 52 13 050. Replacing Lumbar Cushion on Front Left or Right Seat
If necessary, remove valve housing for lumbar support, front,
refer to 52 13 060.
If necessary, remove lumbar support drive mechanism on front seat,
refer to 67 66 010. Service and Repair





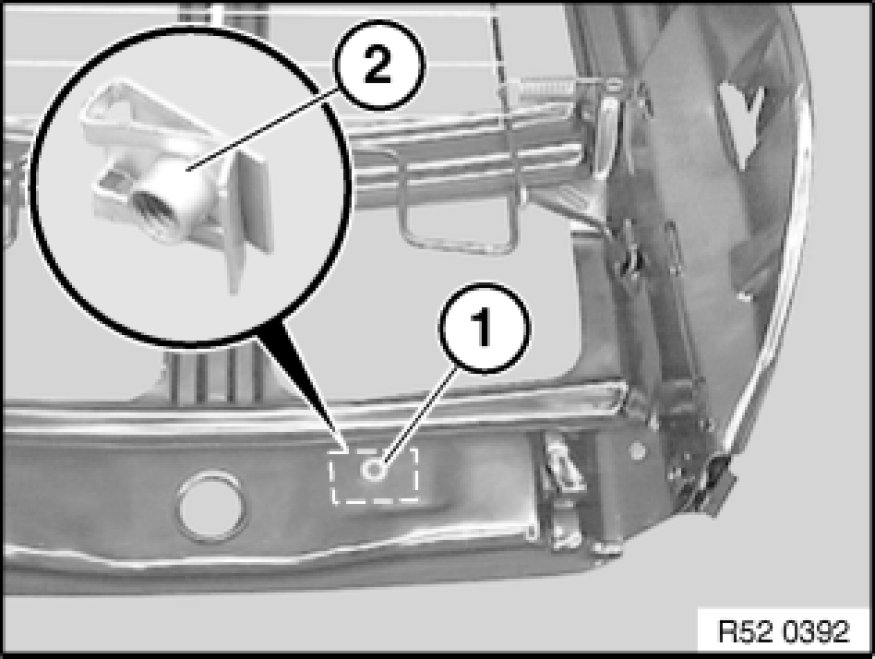

If necessary, release screw (1) and remove metal nut (2).

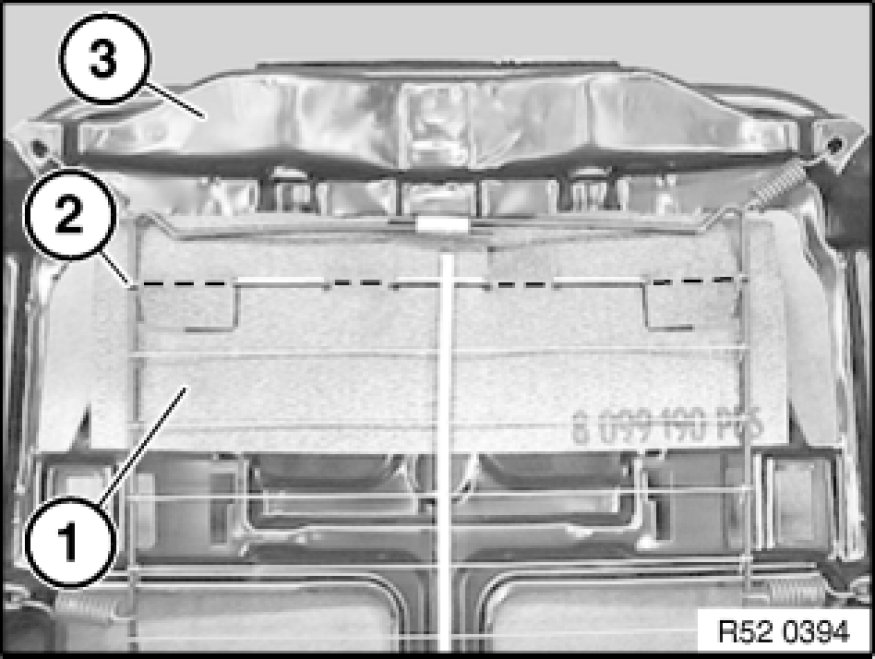

If necessary, remove mat (1) from spring wire (2) of backrest frame (3).





Installation:
If necessary, suspend mat (1) on uppermost spring wire (2) on backrest frame (3).
