Removing and Installing/Replacing Trim for Rear Window Frame at Top

51 49 015 - Removing and installing/replacing trim for rear window frame at top





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge

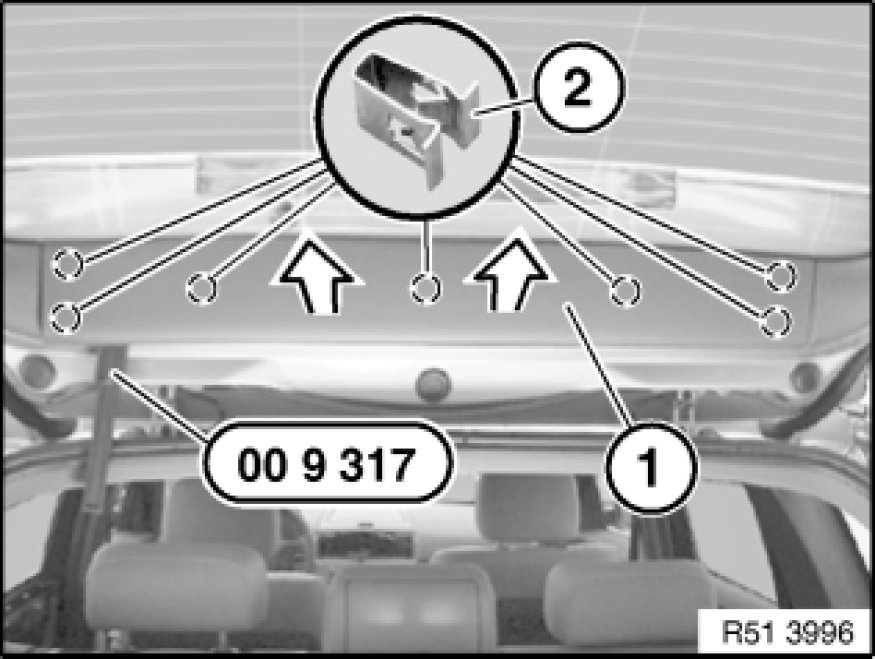

Unclip trim (1) with special tool 00 9 317 00 9 317 Trim Panel Wedge from retainers (2) and remove in direction of arrow.

Installation:
If necessary, detach clips (2) from trim (1) and insert in rear lid.

If necessary, replace faulty clips (2).





Installation:

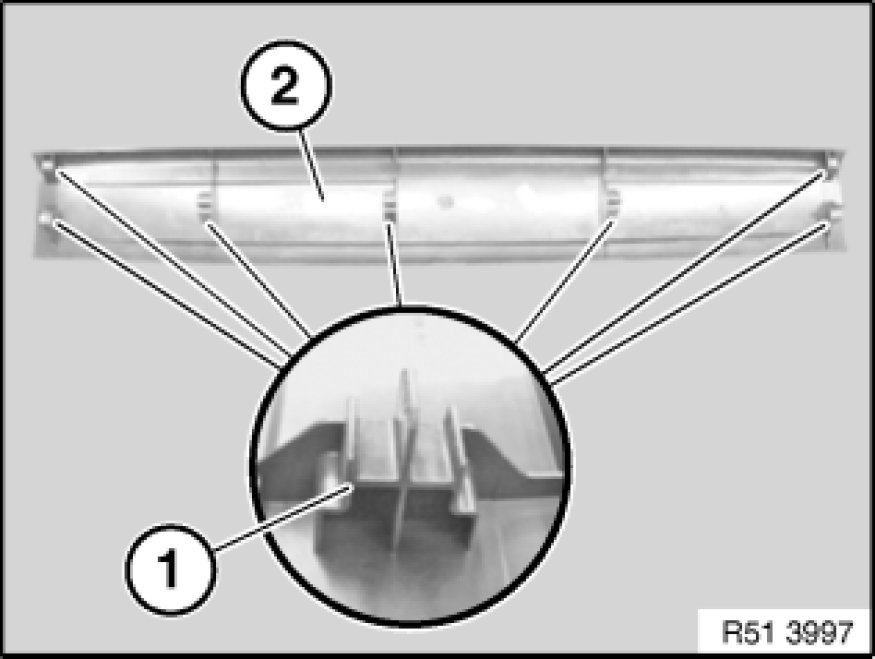

.Guides (1) on trim (2) must not be damaged.
