Trunk / Liftgate Hinge: Service and Repair

41 62 519 - Removing and installing/replacing left or right hinge for rear lid

Read contents of Body, General Service Precautions.





Necessary preliminary tasks:
- Remove rear lid Service and Repair

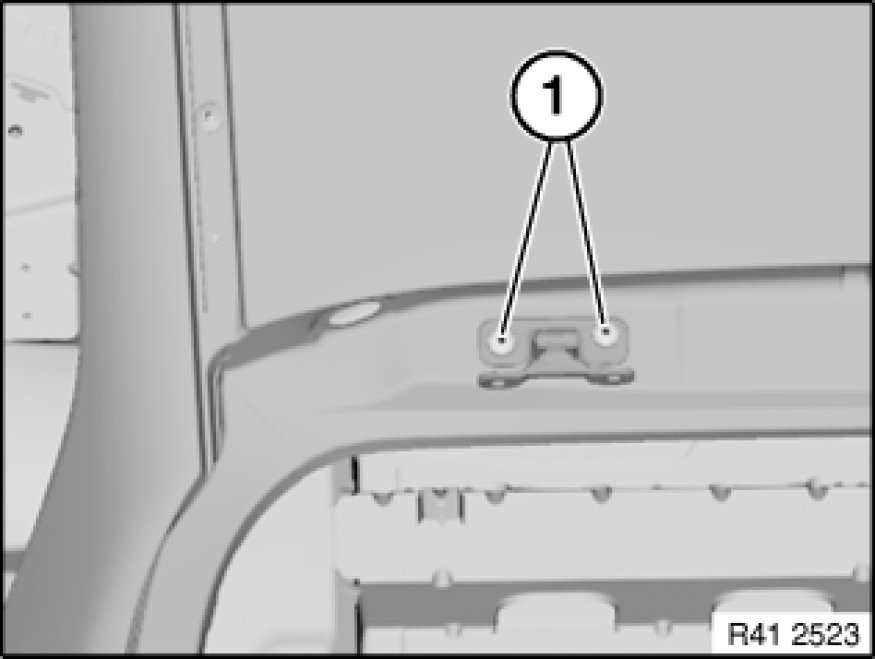

Open screw connections (1) on car.
Remove hinge.

Installation:
Adjust rear lid on basis of E83 body gap dimensions.
