Removing and Installing/Replacing Speaker (Tweeter in Front Door)




65 13 050 - Removing and installing/replacing speaker (tweeter in front door)





Necessary preliminary tasks:
- Remove front door trim panel Removing and Installing Left or Right Front Door Trim Panel.

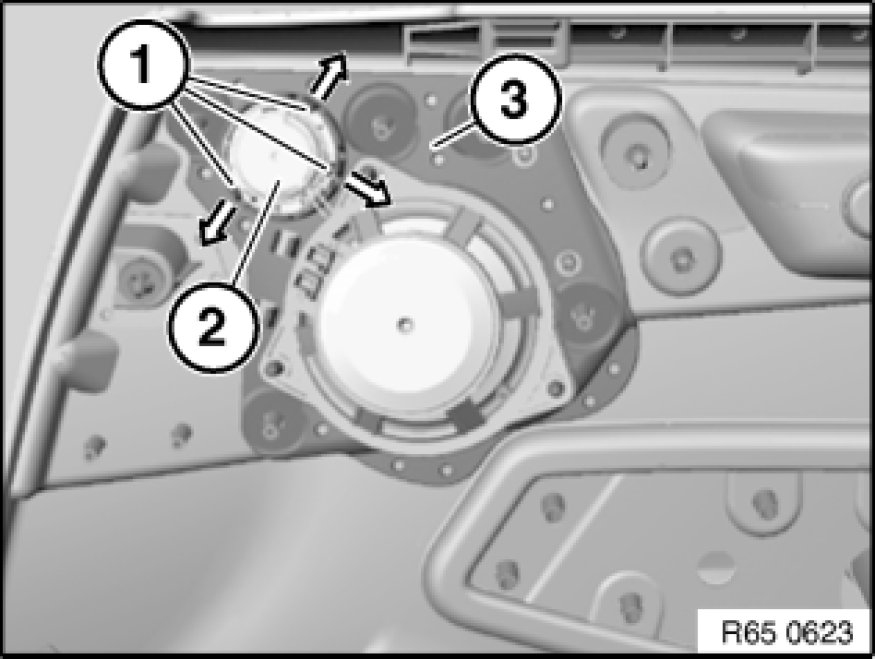

Unlock catches (1) in direction of arrow and remove tweeter (2) from front door trim panel (3).
