TCU I-Bus Fault Profiles For Snap-In Adapter (TCU 1.5 Telematics Control Unit 1.5)

TCU I-bus fault profiles for snap-in adapter

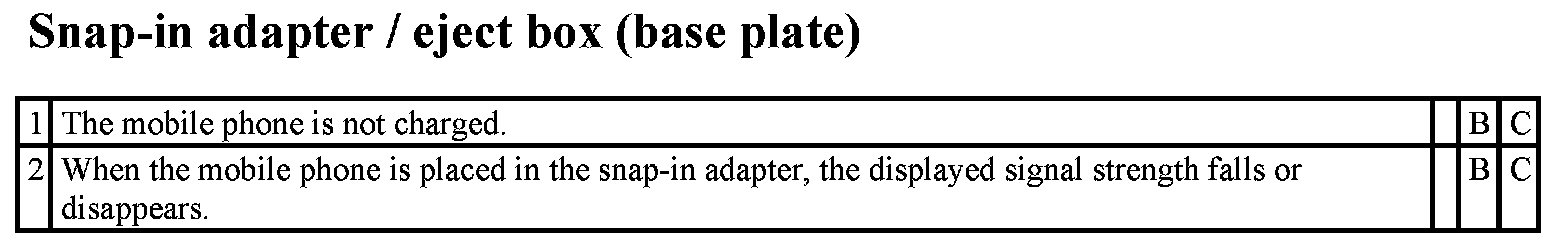

The following table lists the fault profiles covered in this test module.

The last three columns contain the information on which telephone systems each fault profile applies to:

A: telephone systems with cordless handset (e.g. optional extra 638 before 03/2005)

B: telephone systems with hard-wired mobile phone (e.g. optional extra 639 before 03/2005 and retrofit)

C: telephone systems with mobile phone connected via Bluetooth (e.g. optional extra 639 between 09/2004 and 03/2005 - Business or Professional, optional extra 639 as of 03/2005, optional extra 633)
