Removing and Installing/Replacing Front Left or Right Seat Belt




72 11 033 - Removing and installing/replacing front left or right seat belt





Necessary preliminary tasks:
- Remove panel for door post Removing and Installing/Replacing Trim on Left or Right Door Pillar (Top)





Warning!
Read and comply with safety regulations [1][2]Safety Regulations For Handling Airbag System Components for handling airbag modules and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt pretensioner or side airbag, resulting in injuries.

Switch off ignition!





Release screw (1).
Tightening torque: 72 11 11AZ Specifications.
Remove seat belt (2).

Installation:
Make sure tab of seat belt (2) is correctly installed between retaining lugs.

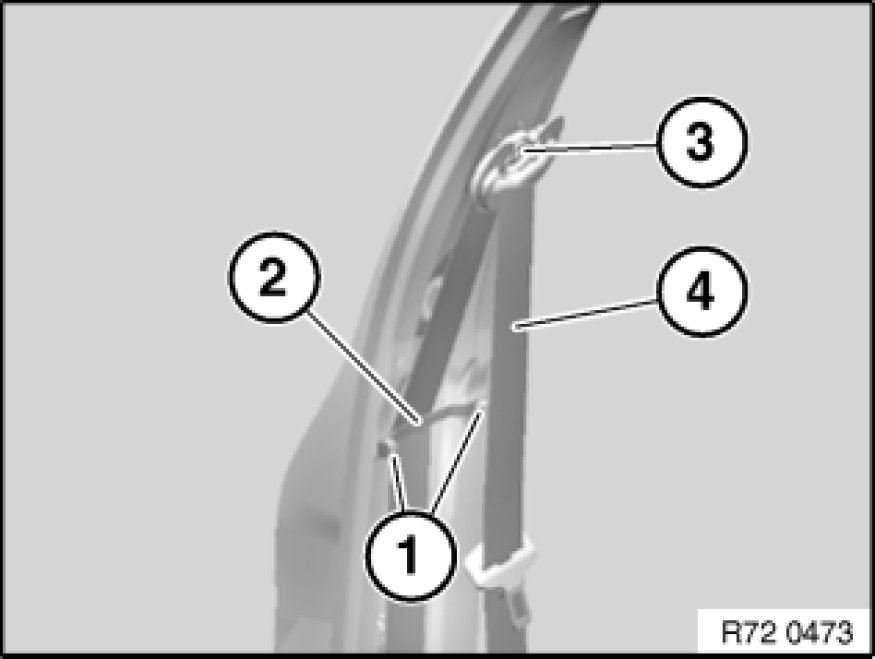

Release screws (1).
Tightening torque: 72 11 19AZ Specifications.
Remove belt guide (2).
Release screw (3).
Tightening torque: 72 11 20AZ Specifications.
Remove belt (4).

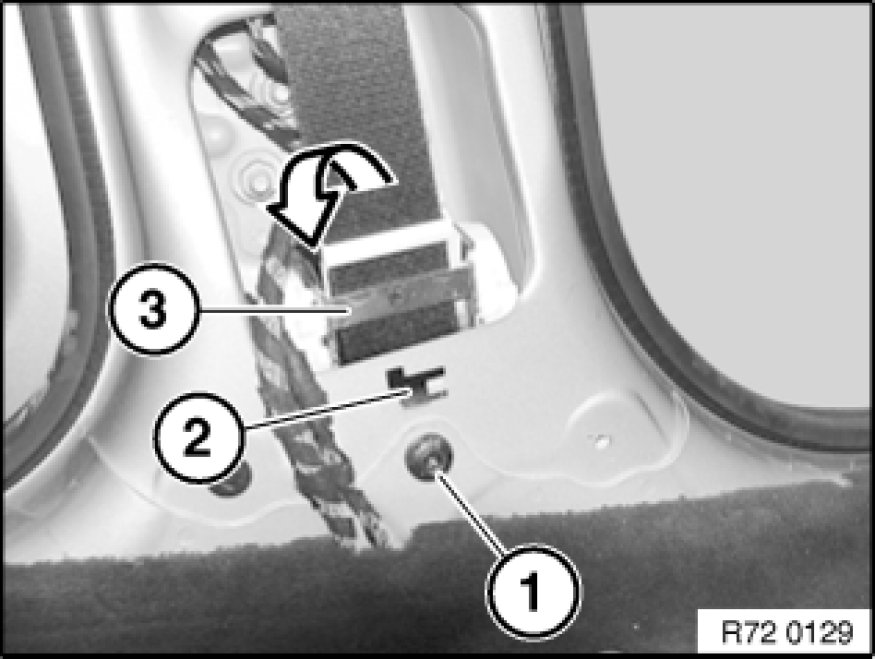

Release screw (1).
Tightening torque: 72 11 14AZ Specifications.
Remove inertia reel mechanism (3).

Installation:
Coding (2) of inertia reel mechanism must be seated in opening of body.
Retaining screw (1) secures inertia reel mechanism.
