Replacing Halogen Bulb For High-Beam Headlight on Left

63 99 002 - Replacing halogen bulb for high-beam headlight on left





Warning!
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Necessary preliminary tasks:
- M54:
Partially remove intake filter housing





Note:
Headlight (3) removed for purposes of clarity.

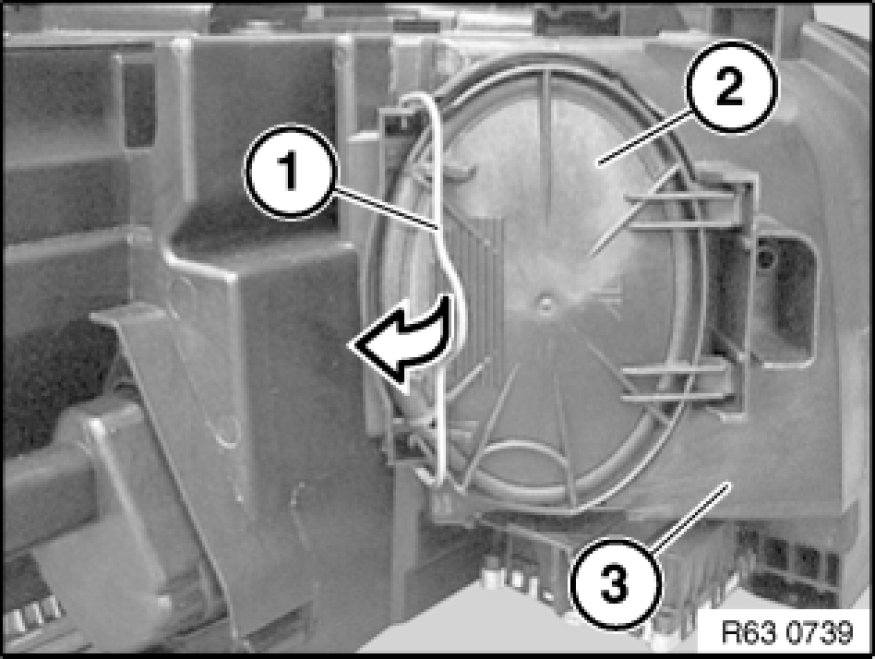

Unlock clip (1) in direction of arrow.
Remove cover (2) from headlight (3).

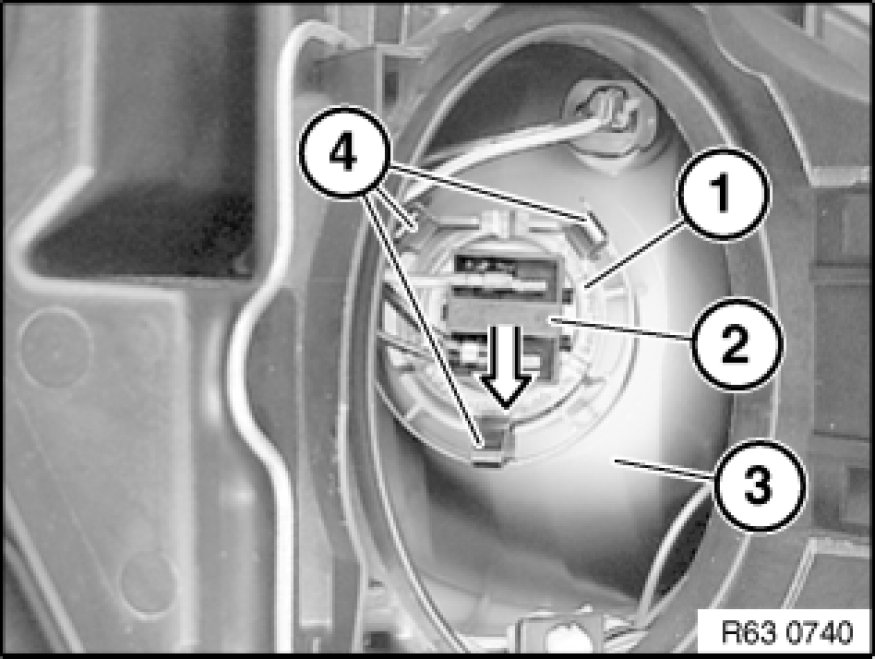

Unclip bulb (1) by pressing on plug (2).
Remove bulb (1) from headlight (3), disconnect plug connection and remove bulb (1).

Installation Note:
Insert bulb (1) in headlight (3) at bottom at first and then tilt upwards until bulb (1) snaps audibly into place.
Make sure bulb (1) is correctly seated in catches (4).
Note type of bulb Specifications.
