Replacing Servodrive on Gear for Flap Control (A/C Control)

64 11 800 - Replacing servodrive on gear for flap control (A/C control)





Necessary preliminary tasks:
- Remove complete glovebox 51 16 366 Removing and Installing Right Glovebox With Housing

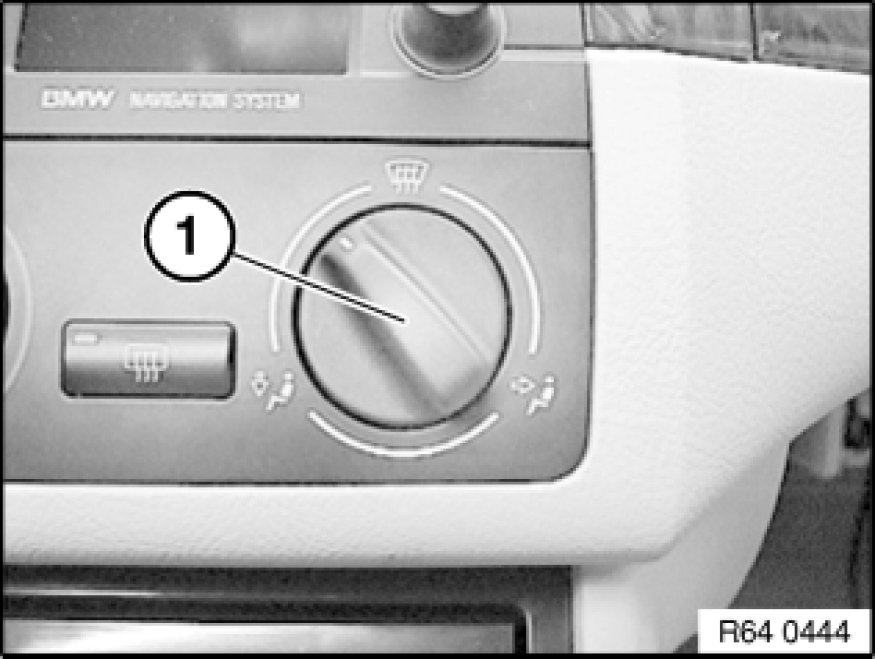

Move rotary knob (1) into position illustrated.

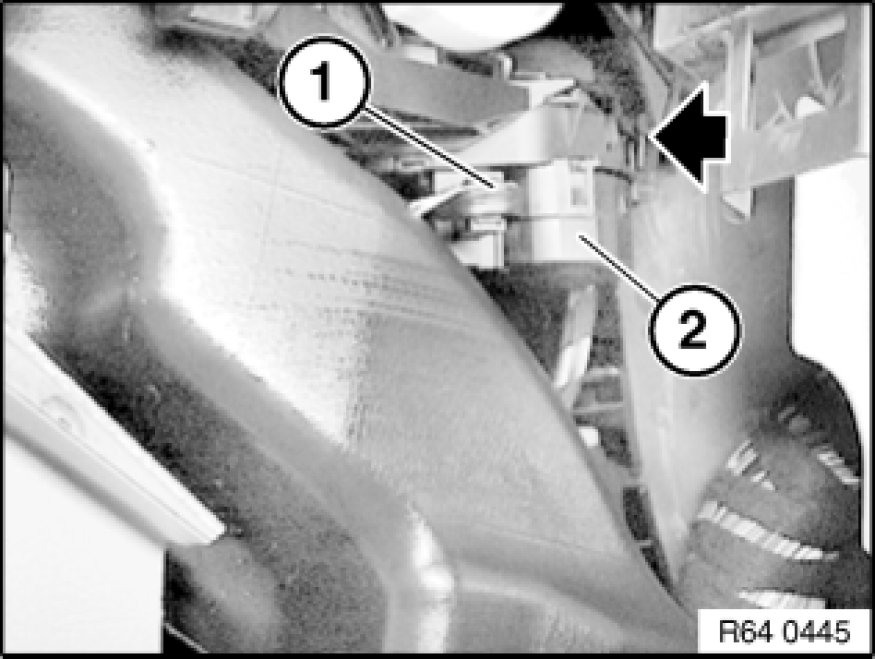

Disconnect plug connection (1).
Unlock servo-drive (2) and remove towards bottom.





Installation Note:

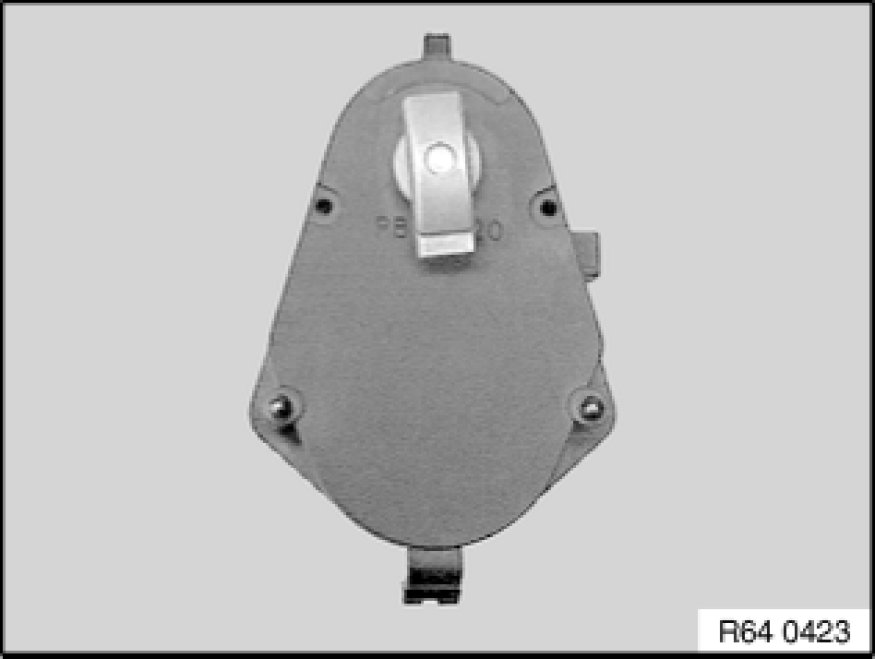

If necessary, align shaft for defrosting flaps and drive (see illustration).
