Replacing Actuator Drive of Footwell Flap

64 11 839 - Replacing actuator drive of footwell flap





Necessary preliminary tasks:
- Remove glovebox 51 16 366 Removing and Installing Right Glovebox With Housing

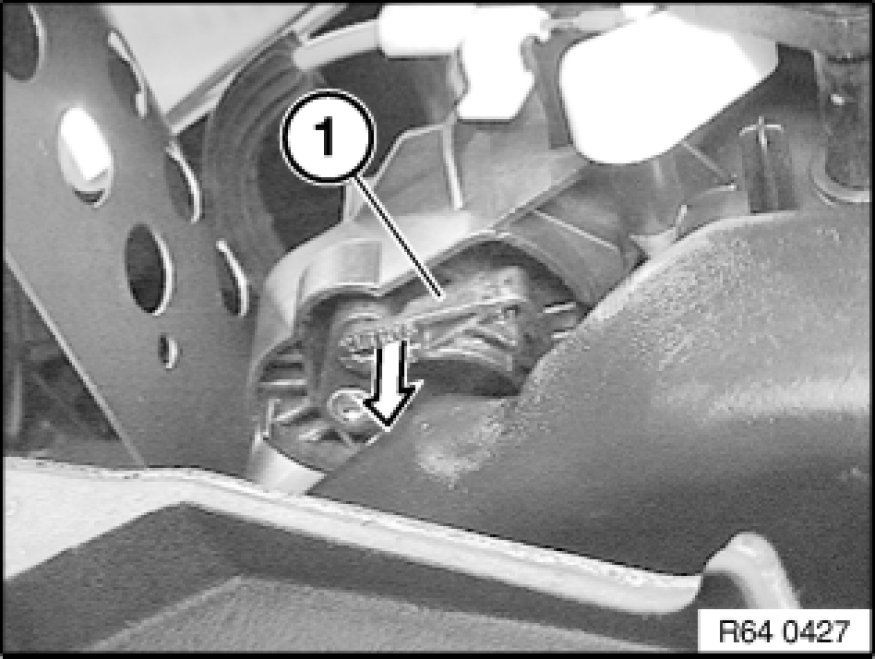

Unhook adjusting lever (1).

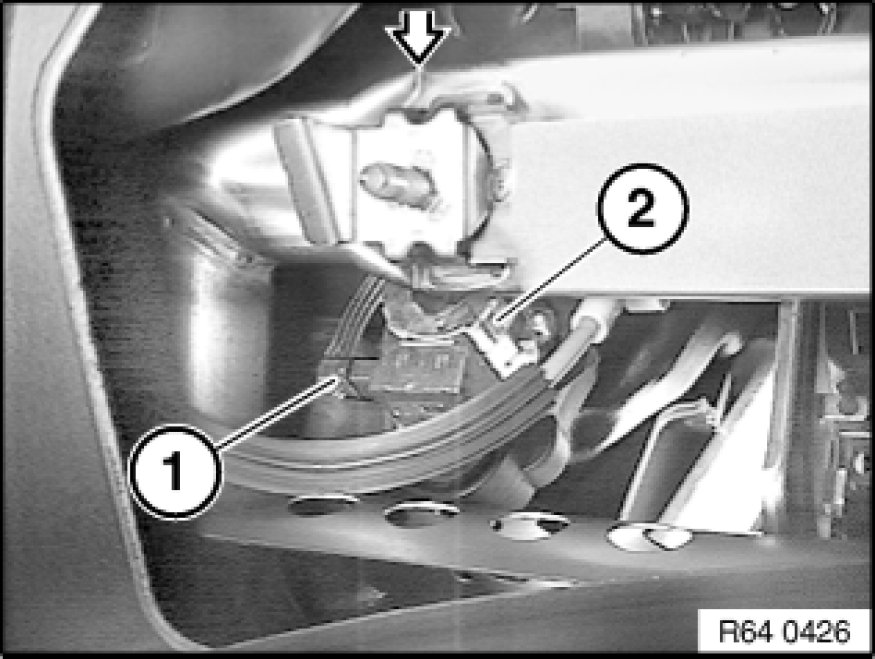

Disconnect plug connection (1). Unlock actuator drive (2) and feed out towards rear.





Installation Note:
If necessary, align shaft for footwell flap and drive (see illustration).
