Replacing Right Engine Support Arm




22 11 100 - Replacing right engine support arm (N52K)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine in Installation Position.
- Remove reinforcement plate Service and Repair.

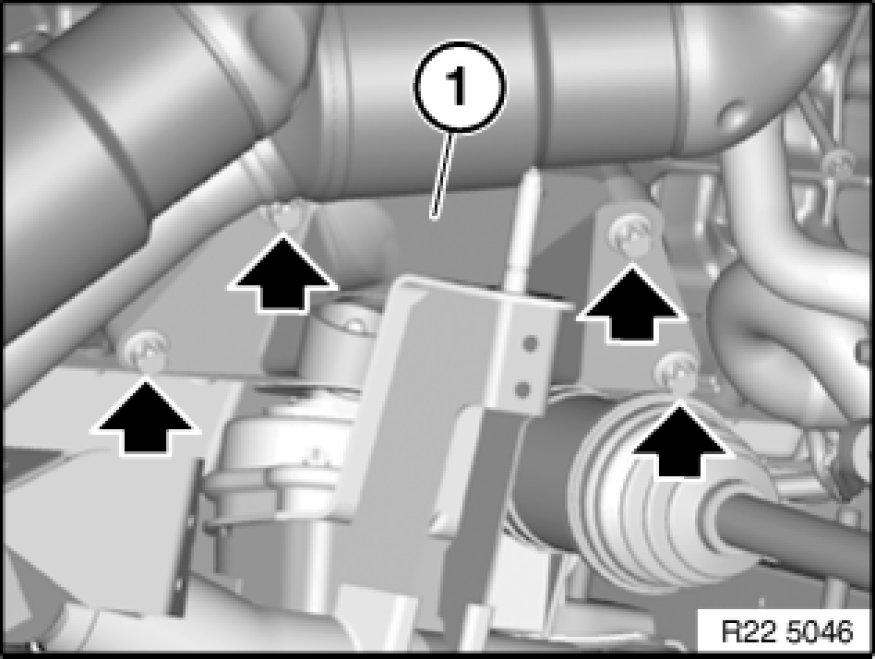

E83 Shown:





Release screws.
Remove engine support arm (1).
Tightening torque 22 11 3AZ Specifications.
