Replacing Right Engine Mount (N52K)

22 11 001 - Replacing right engine mount (N52K)





Necessary preliminary tasks:
- Remove right engine support arm Replacing Right Engine Support Arm

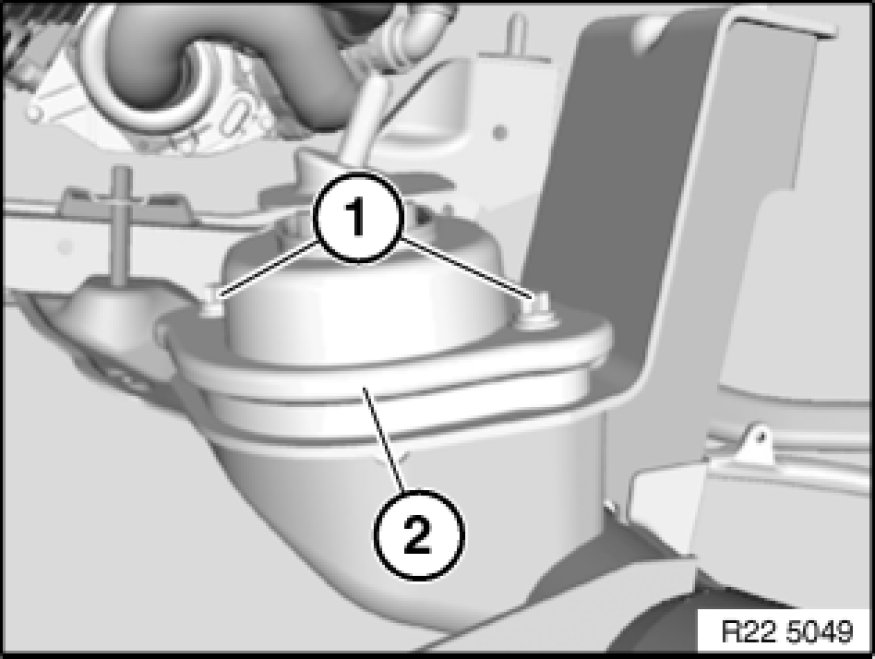

Release screws (1) and remove engine mount (2).
Tightening torque, 22 11 1AZ Specifications.





Installation:

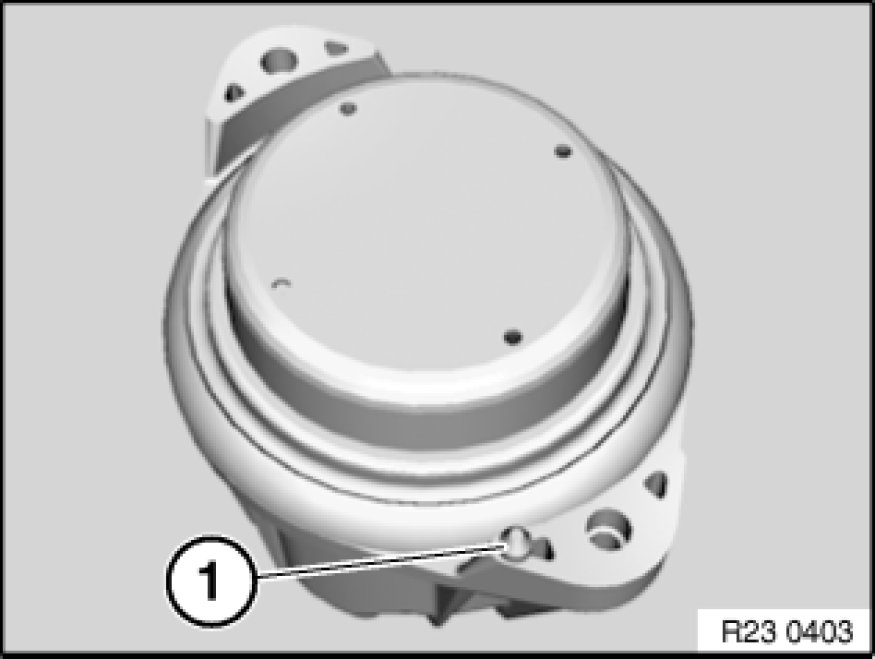

Ensure lug (1) is correctly located.
Engine mount designations:
Right engine mount
- Even component number
Left engine mount
- Odd component number
