Trailer Lighting (USA_LHD Up to 09/06)

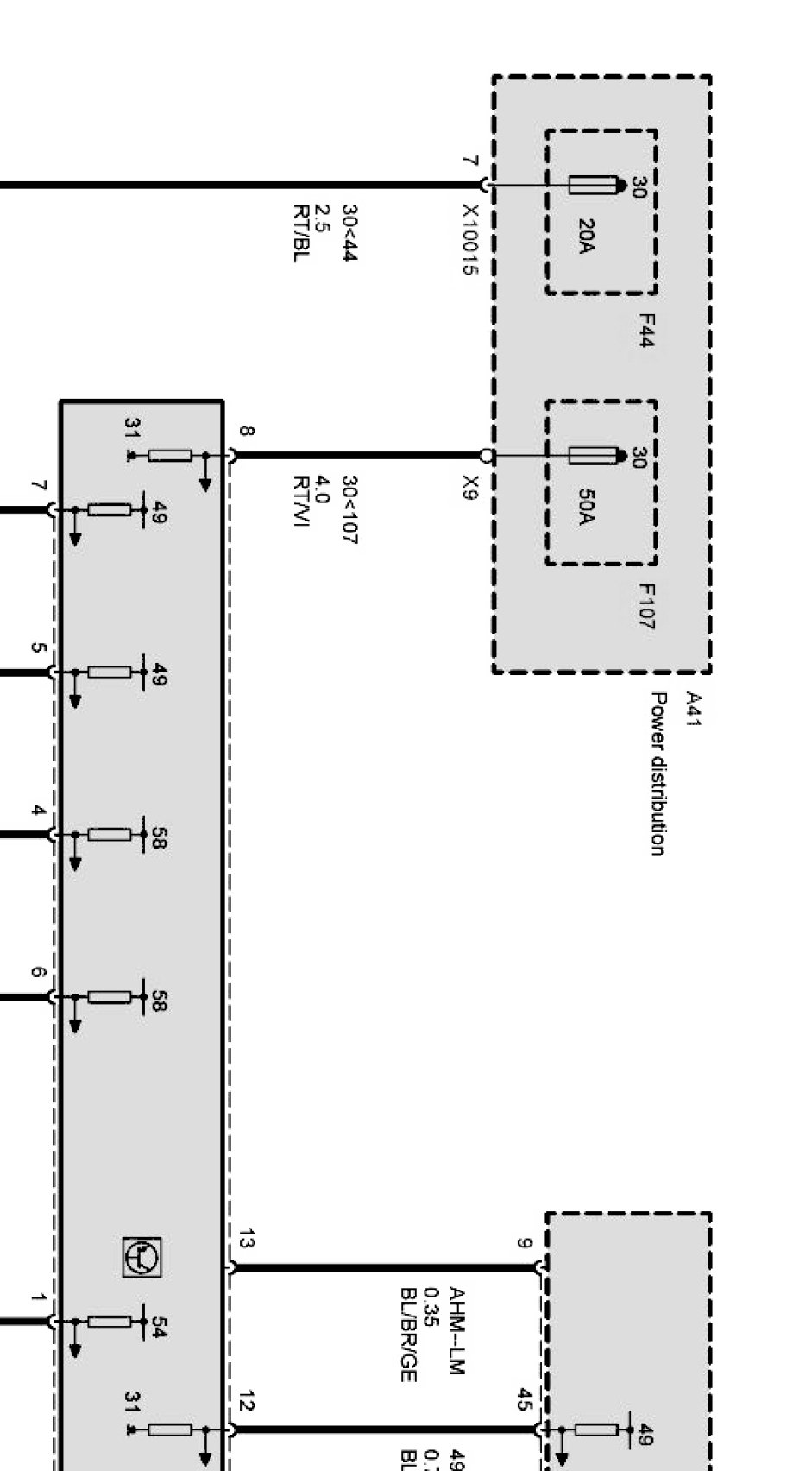

Trailer Lighting Part 1:

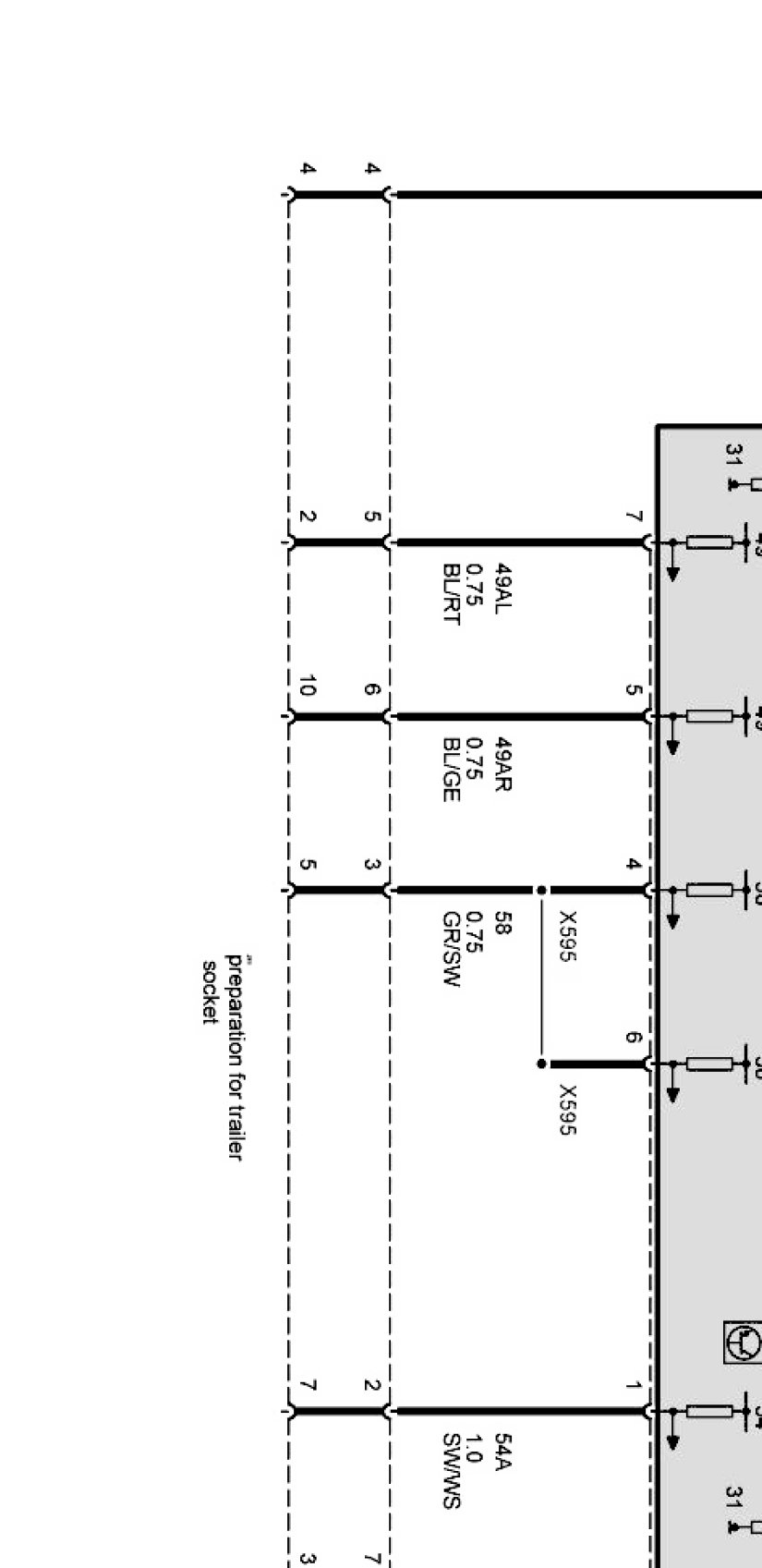

Trailer Lighting Part 2:

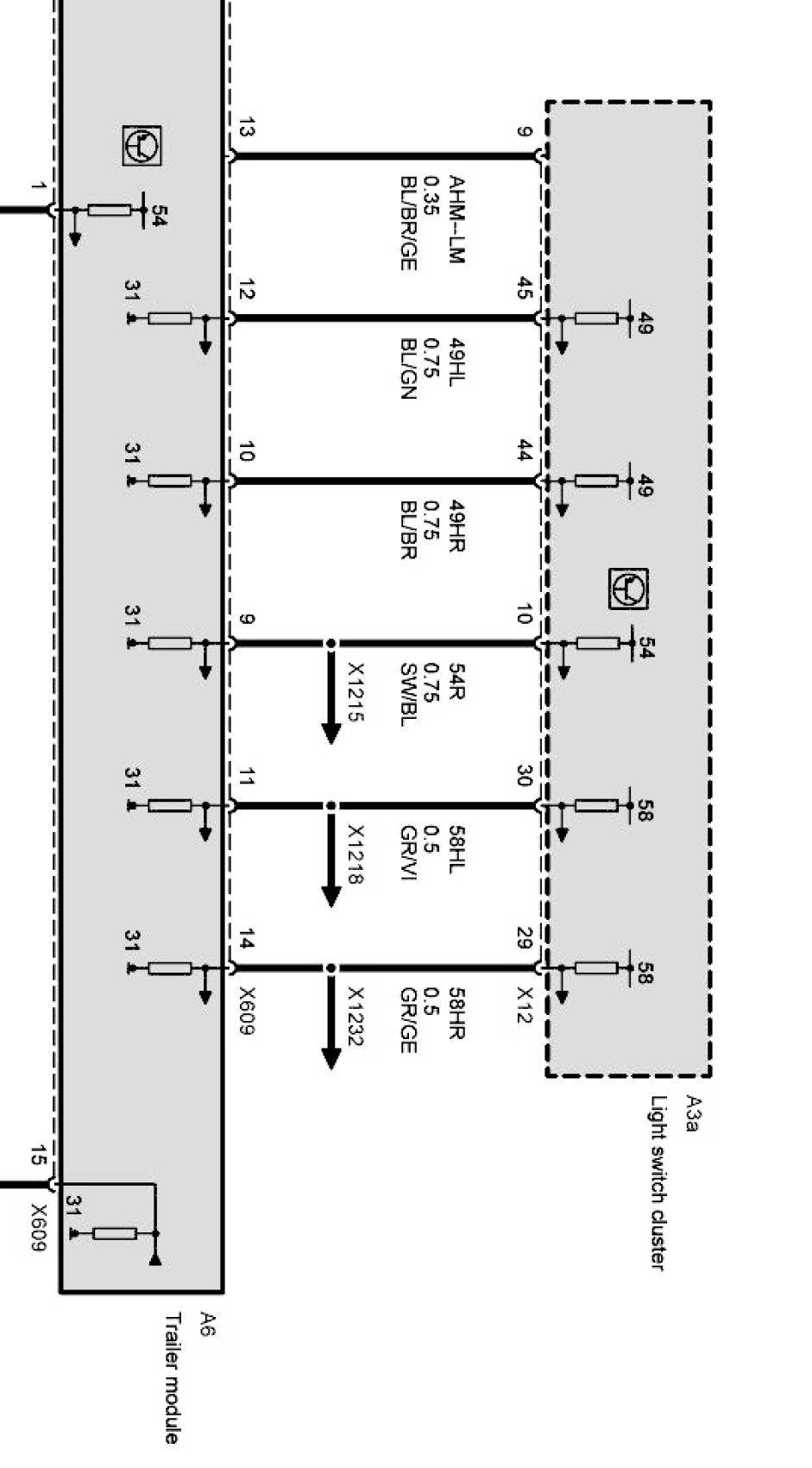

Trailer Lighting Part 3:

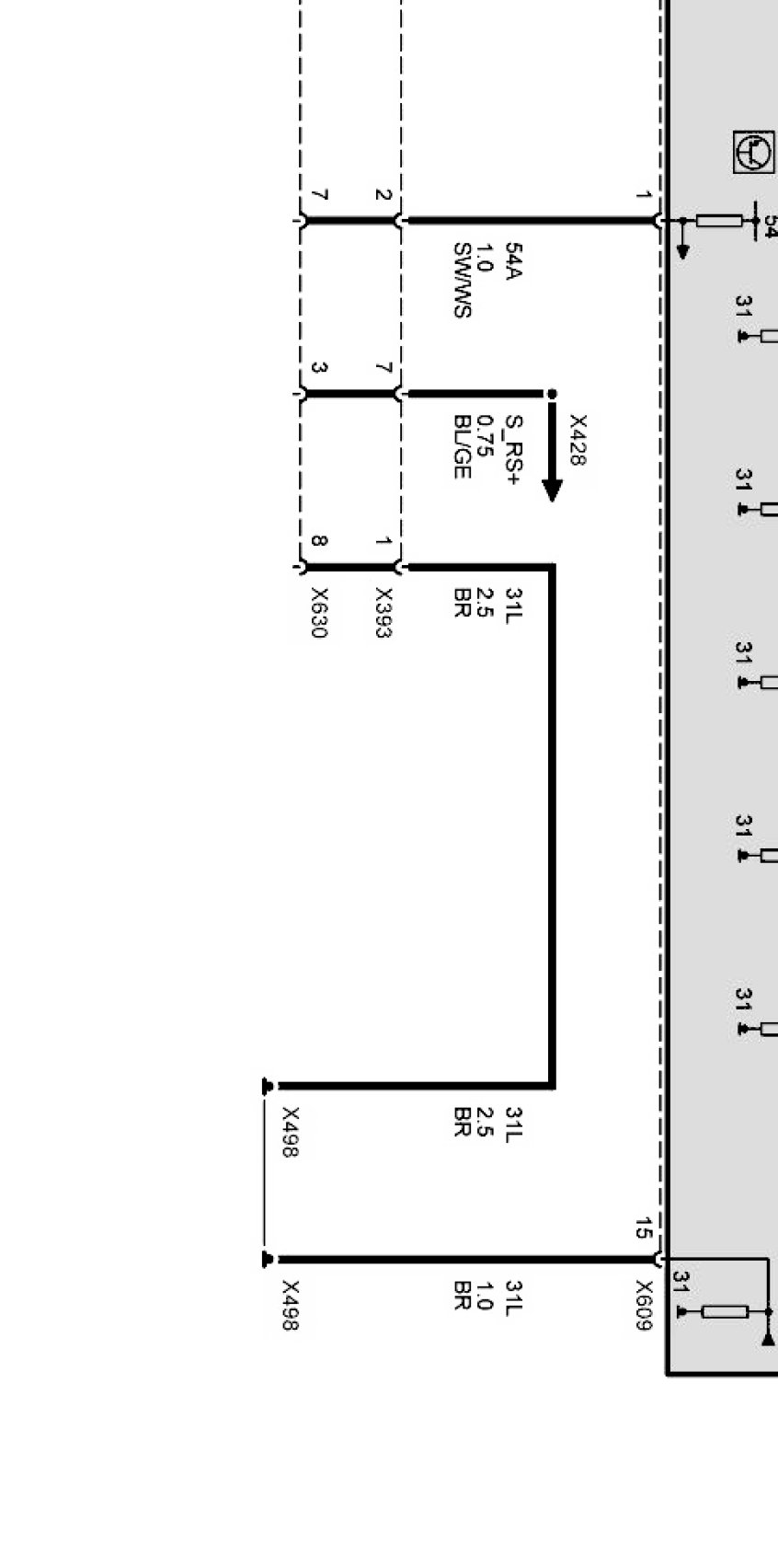

Trailer Lighting Part 4:
