Trailer Lighting (Without Z Series_Z4-E85/E86)
>>
Trailer Lighting (USA_LHD As of 09/06)
Trailer Lighting (USA_LHD As of 09/06)

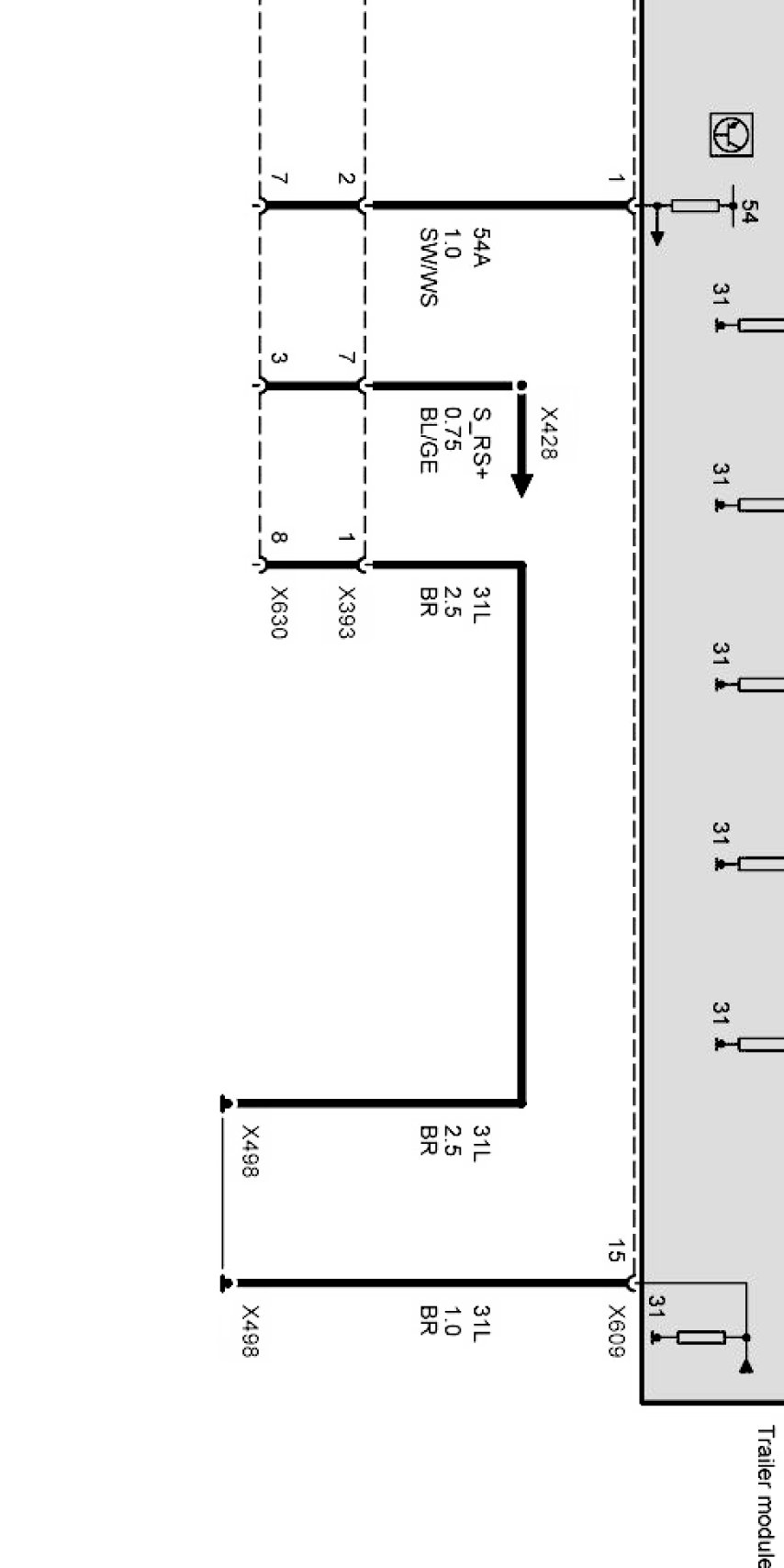

Trailer lighting Part 1:

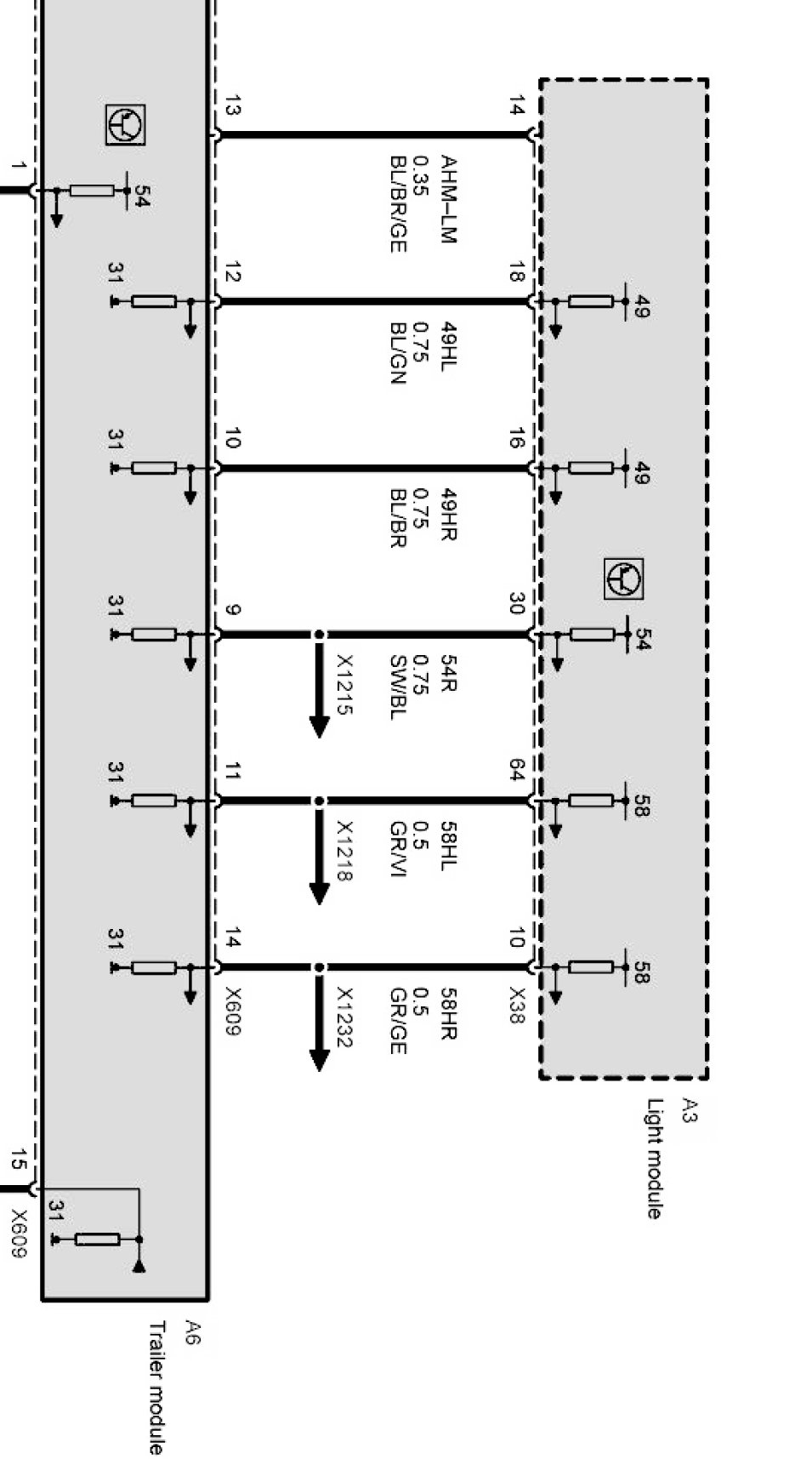

Trailer lighting Part 2:

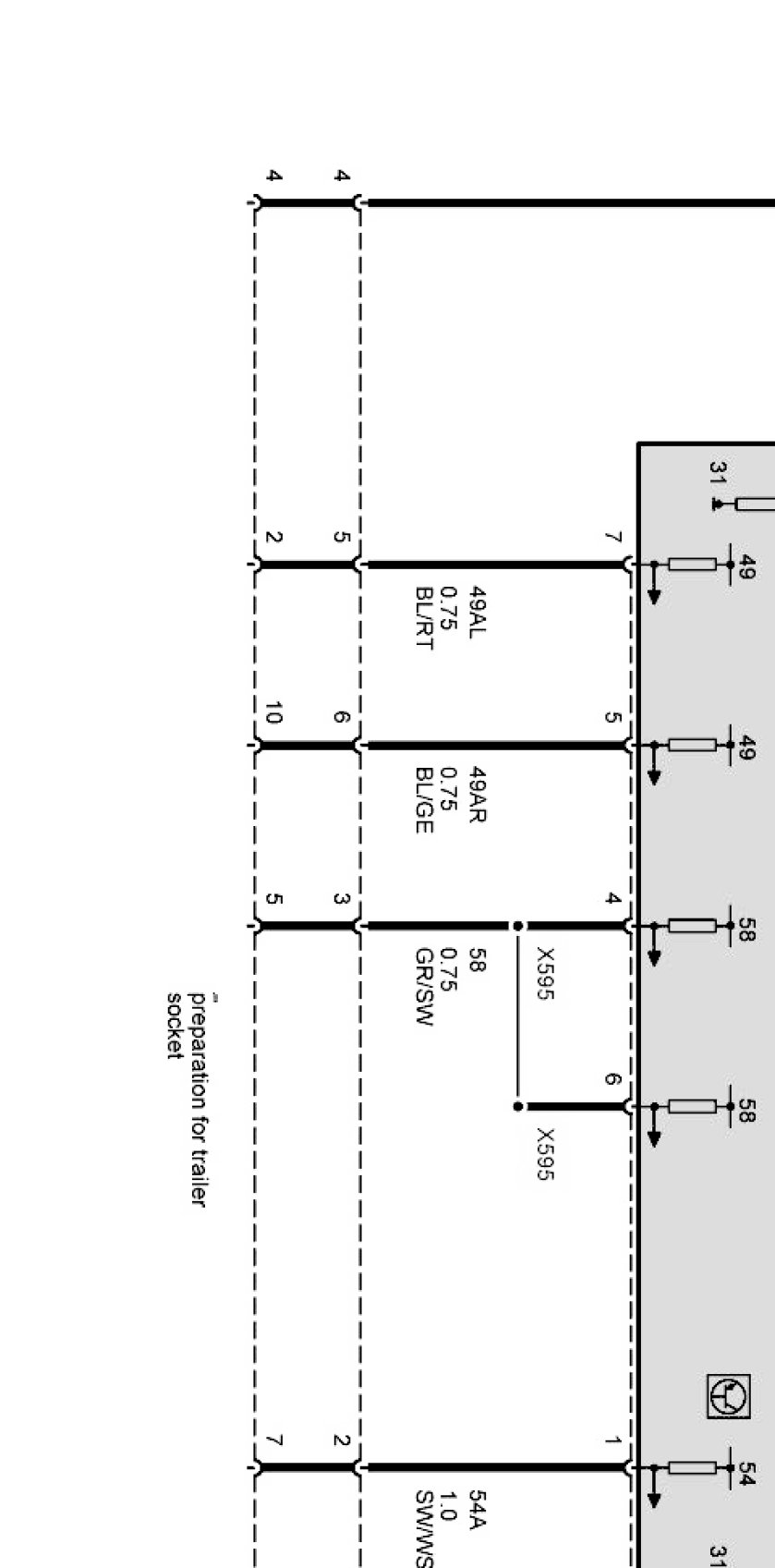

Trailer lighting Part 3:
Trailer lighting Part 4:
