Side Light (X Series_X3-E83 As of 09/06)

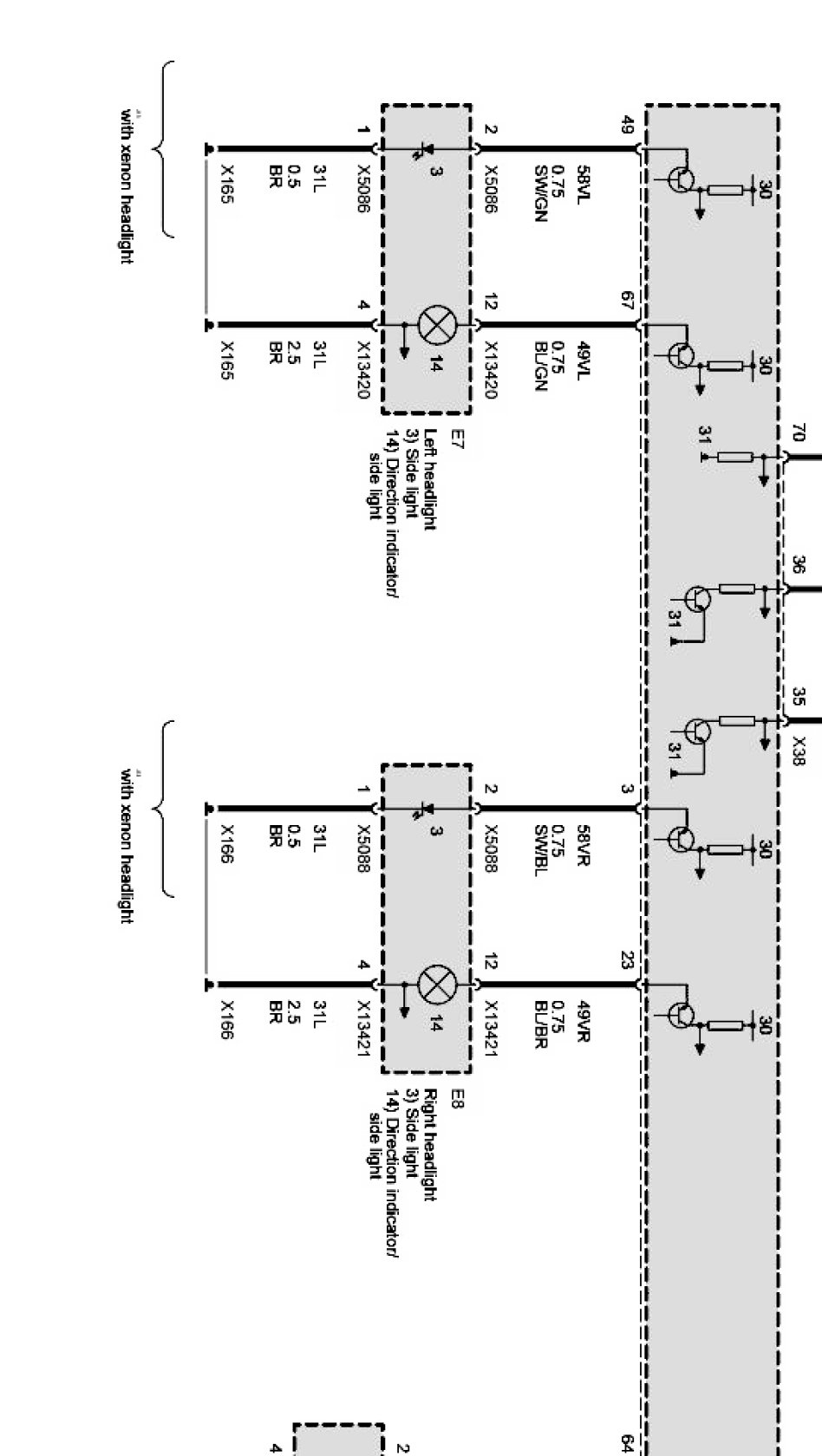

Side light Part 1:

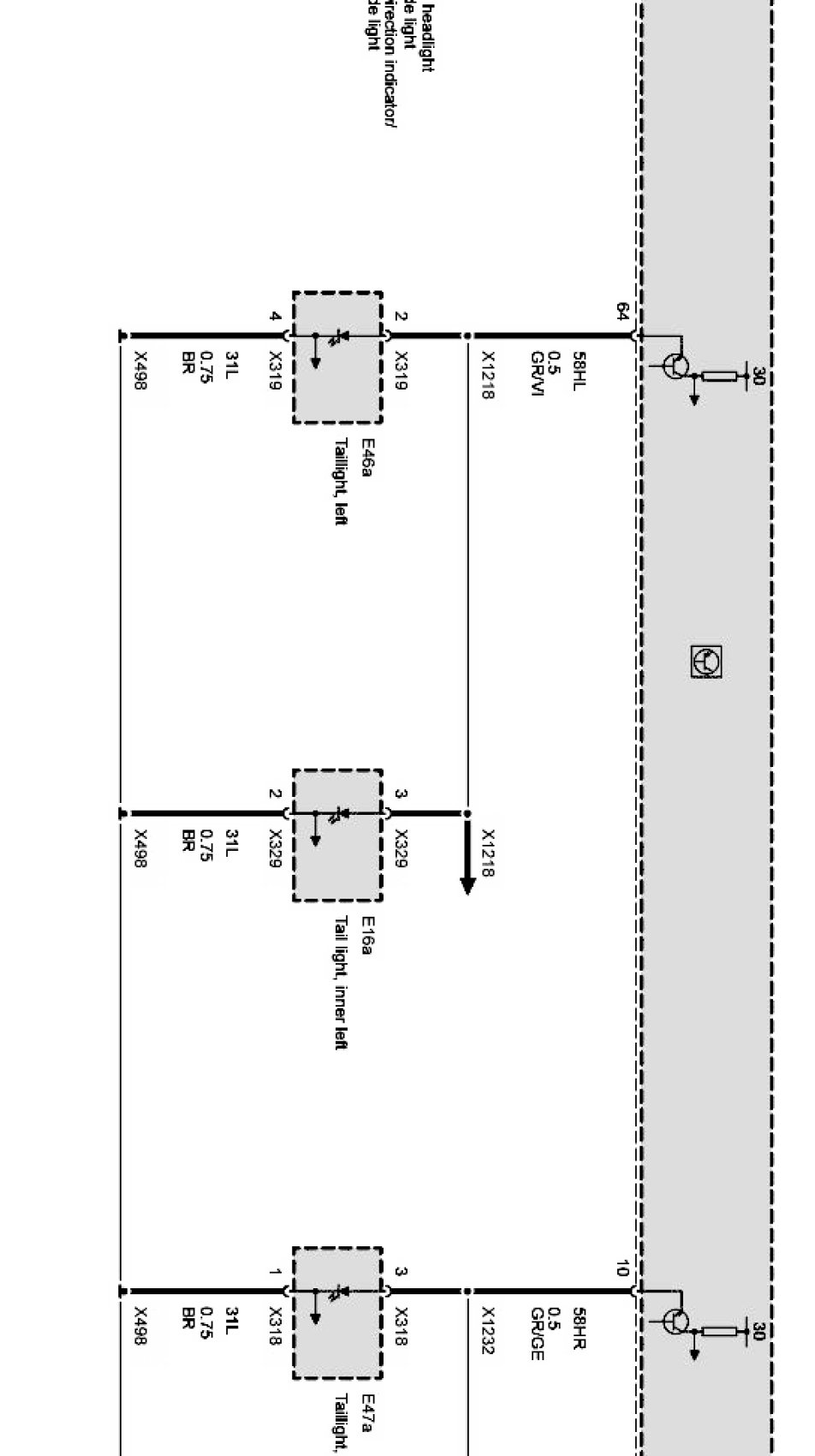

Side light Part 2:

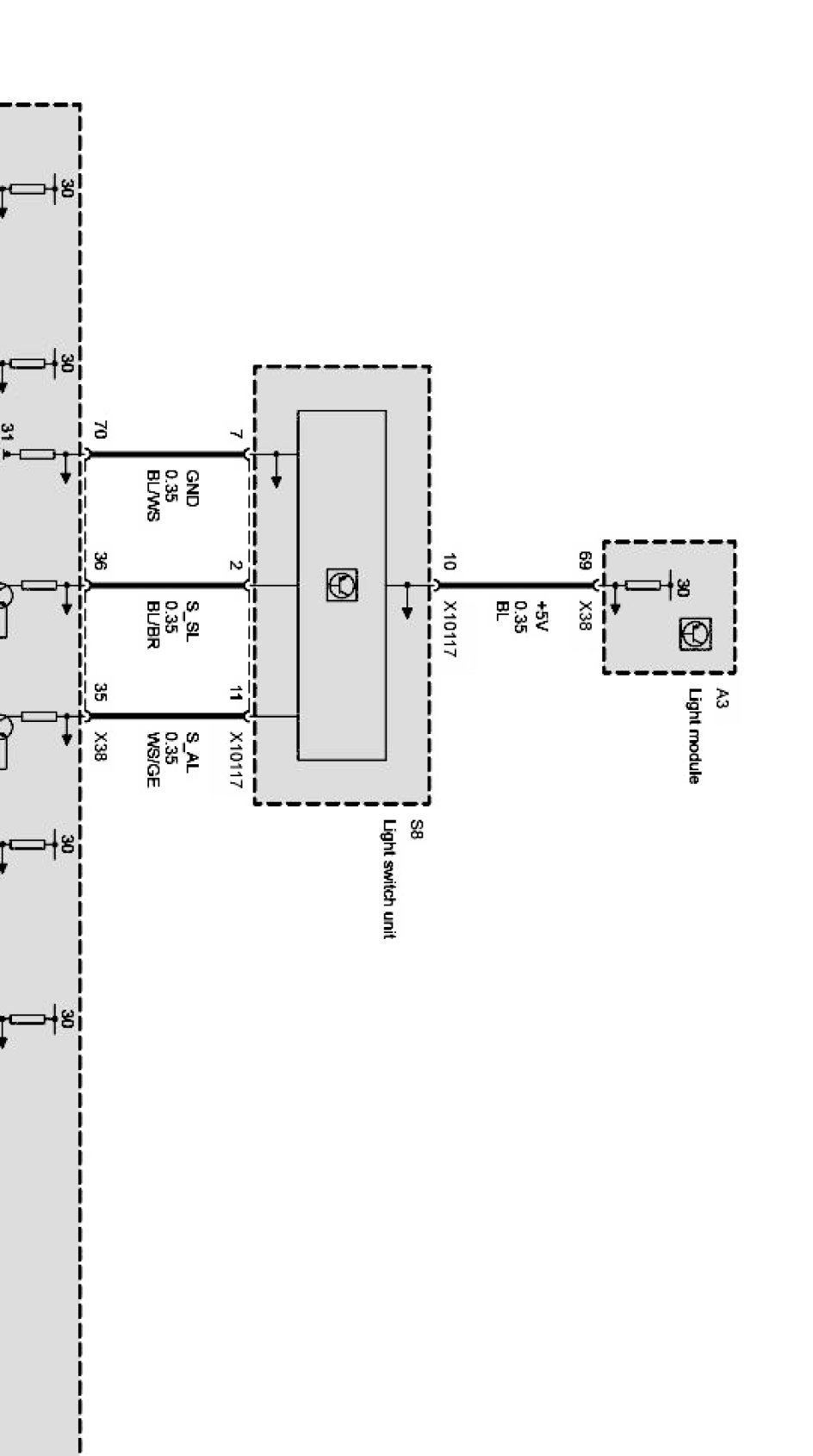

Side light Part 3:



Side light Part 4:
