Headlight Widening Adjustment (( X Series_X3-E83 Without AHL ) or ( Z Series_Z4-E85/E86 ))
>>

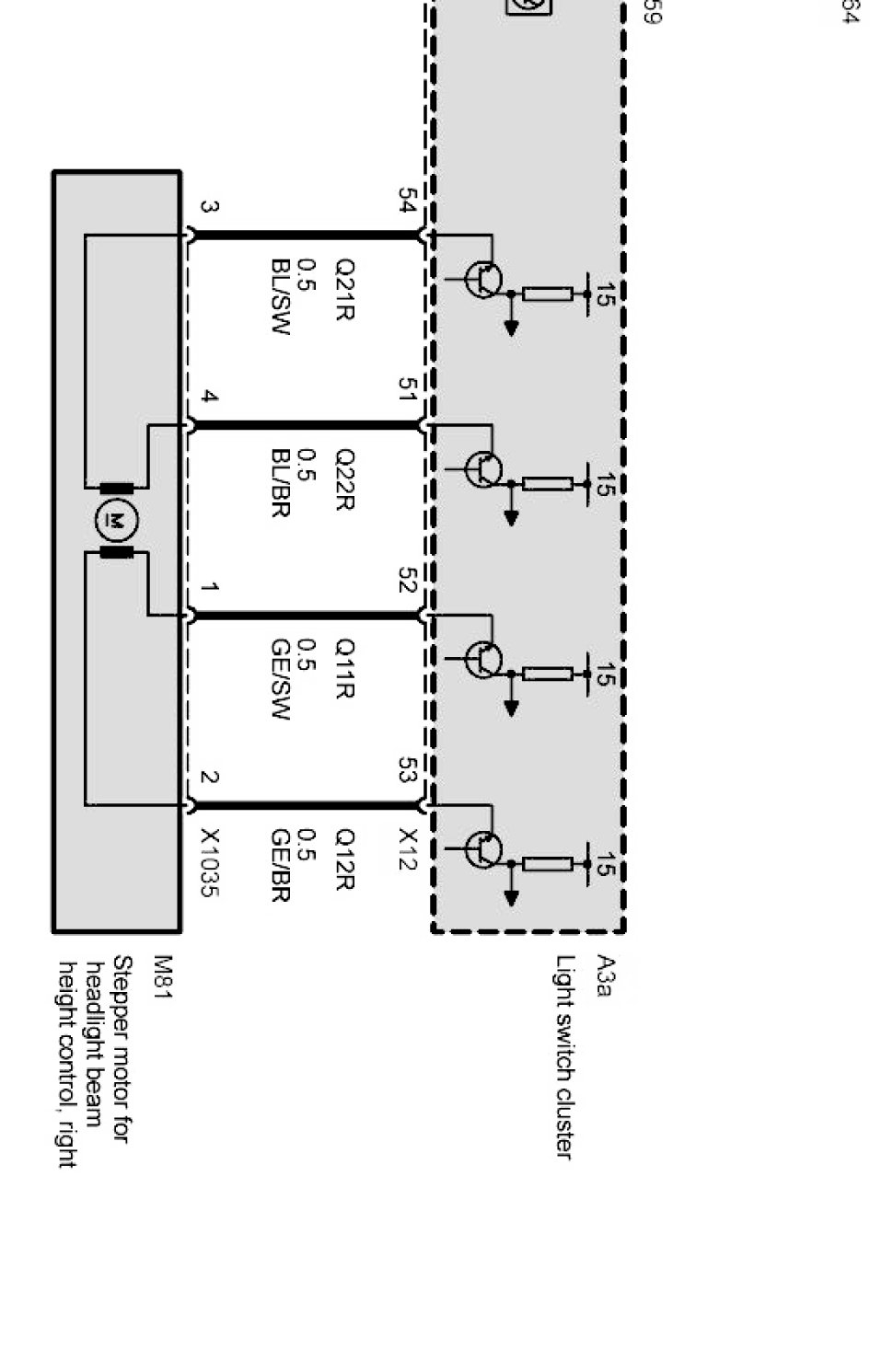

Manual Headlight Vertical Aim Control (X Series_X3-E83 Without Xenon Lights Up to 09/06)
Manual Headlight Vertical Aim Control (X Series_X3-E83 Without Xenon Lights Up to 09/06)
Manual headlight vertical aim control Part 1:
Manual headlight vertical aim control Part 2:
Manual headlight vertical aim control Part 3:
